DEERE GS2 CONSOLE CAB HARNESS CONNECTIONS
1. Standing on the outside of the cab near the Starfire GPS receiver,
remove the dust plug connector on the GPS receiver harness.
IMPORTANT: Do not unplug the male connector of the GPS receiver
harness connected to the John Deere cab/electronics.

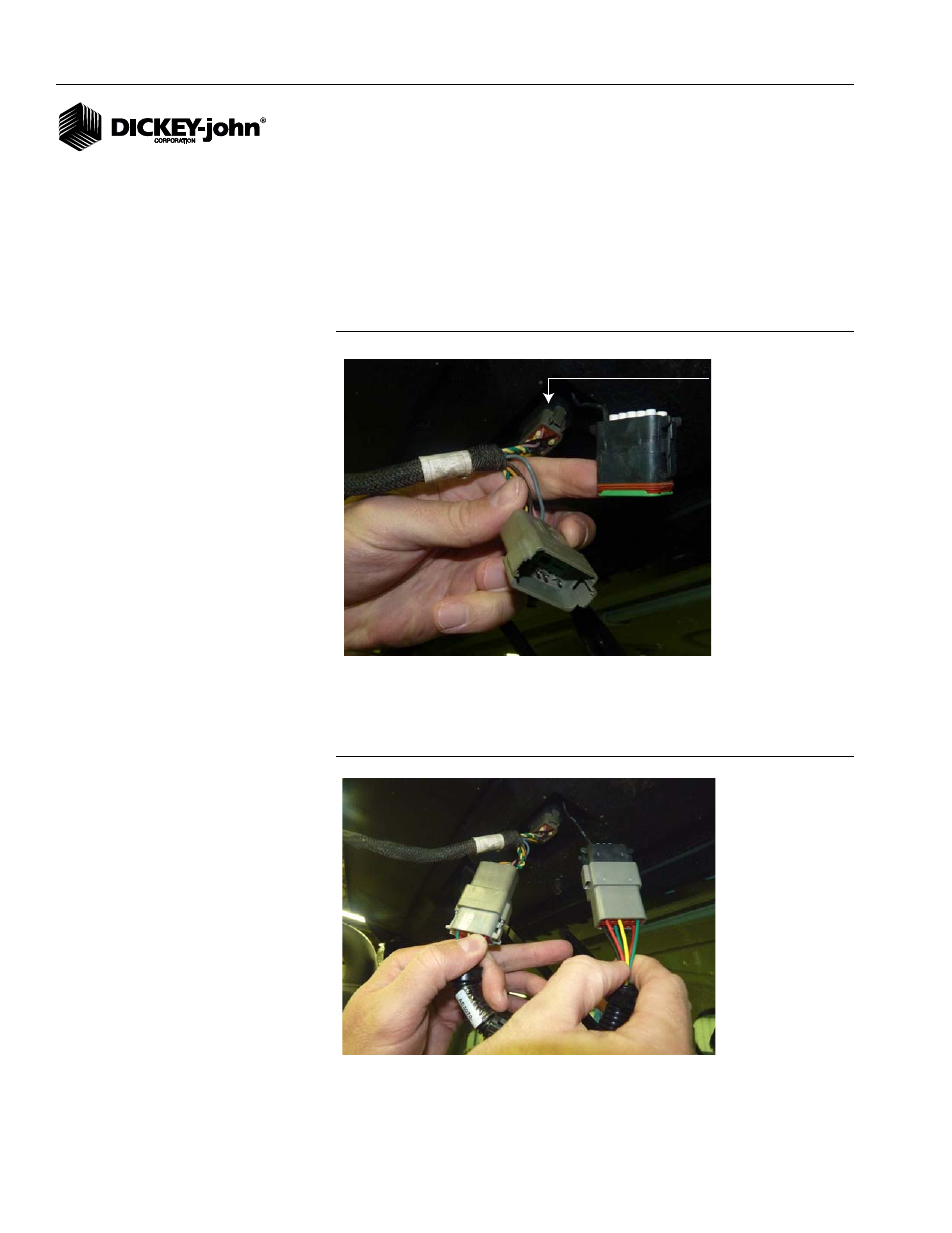

Figure 52
Remove GPS Receiver Dust Plug from Starfire Receiver Harness
2. Connect the DICKEY-john (Starfire) Interface harness part number
46798-0460 to the dust plug and the female connector of the GPS
Receiver harness.
Figure 53
Attach Interface Harness to Starfire Receiver Harness
Do not unplug
male connector of
GPS receiver harness
