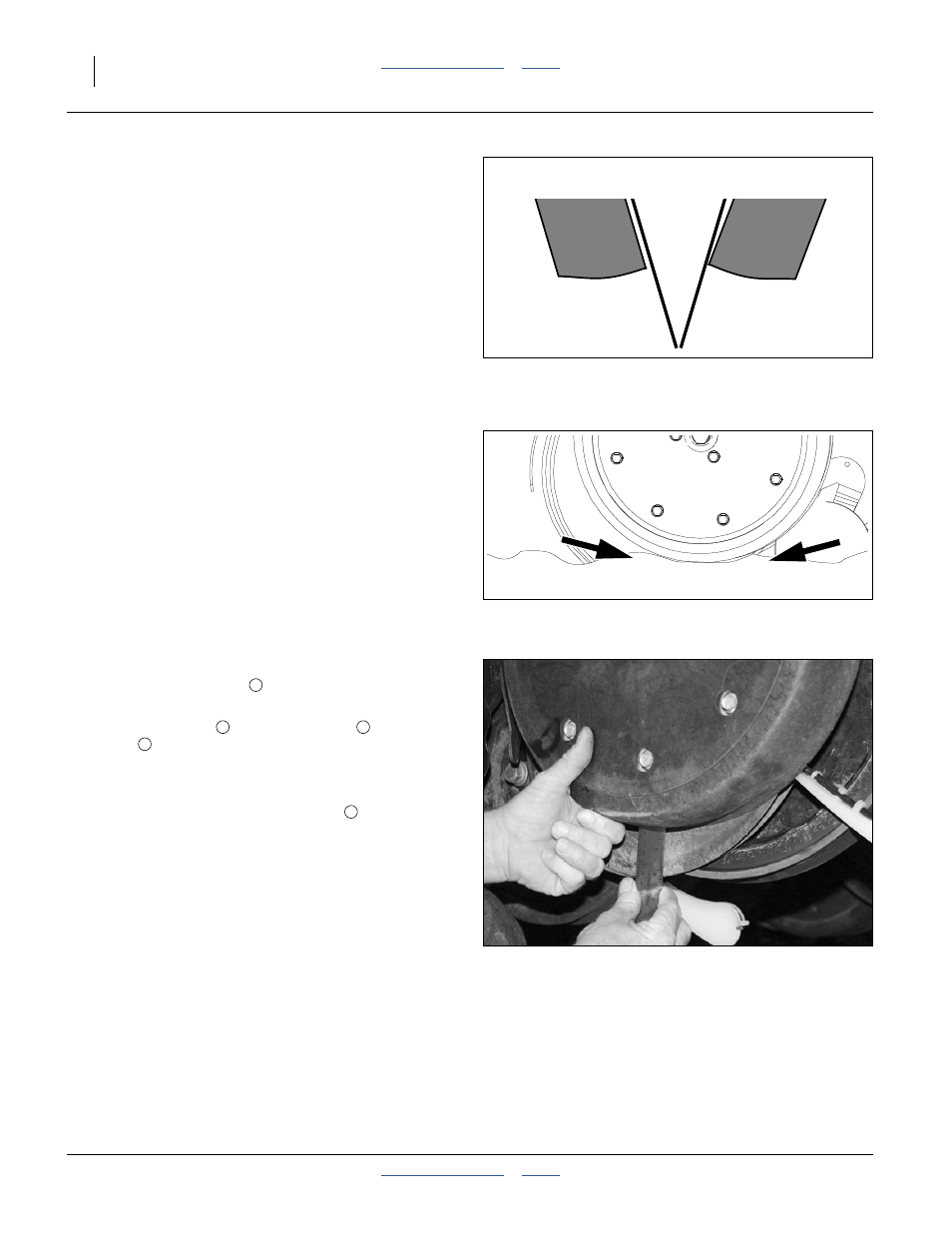

Side Gauge Wheel Adjustment

Refer to Figure 94 and Figure 95
Disc-to-wheel angle and clearance ideally has the wheel
just touching the disk when the wheel is raised to
planting depth (is up against the stop set by the “T”
handle. The goal is to have both disks and wheels turn
freely, but keep soil and trash from getting between them.

These two adjustments interact with each other.
Changing one requires at least checking the other.

In addition to changing the disk angle due to changing
depth or new field conditions, these two settings may
need attention over time as the disk and wheels wear
from normal use. This adjustment will also need to be
made if any opener components are replaced.

Refer to Figure 95
For 2 inch (5.1cm) planting depth, adjust side gauge
wheel angle so wheels contact row unit disks at the
bottom of wheel. Check with row units in soil so wheels
are held up.

At the same time, keep side gauge wheels close to
opener disks so openers do not plug with soil or trash.

Note: Wheels should be out far enough so disks and

wheels turn freely.

Refer to Figure 97 on page 79
To adjust side gauge wheels:

1.

Raise the planter and install lift cylinder locks.

2.

Loosen hex-head bolt

. Move wheel and arm out

on O-ring bushing.

3.

Loosen pivot bolt

Turn hex adjuster

so indicator

notch

is at 5 o’clock to 7 o’clock.

Note: Use this as the starting point for adjustment.

4.

Move wheel arm in so side gauge wheel contacts
row unit disk. Tighten hex-head bolt

to clamp arm

around bushing and shank.

Refer to Figure 96
5.

Check wheel-to-disk contact at 2 inch (5.2cm)
planting depth. Lift wheel 2in, check contact and
release. When let go, wheel should fall freely.

If wheel does not contact disk at bottom to area where

blade leaves contact with soil, move hex adjuster until
wheel is angled for proper contact with disk.

Incorrect

Correct

Figure 94

Disk/Gauge Wheel Alignment

Side Gauge
Wheel

Opener
Disks

Side Gauge
Wheel

Figure 95

Opener-Gauge Wheel Contact

22531

Contact Within this Area

Figure 96

Checking Wheel/Disc Contact

26129

1

2

2

4

1
