Great Plains Manufacturing, Inc.
Appendix B - Initial and Option Setup
167
2013-04-24
401-627M
Marker Extension
Prior to first use, and if row spacing is changed (including
locking up row units for single-row operation on a
twin-capable planter), set and check where the mark is
made on each side relative to the outside row units
(whether in use or not).
1.
Move the planter to a location where both markers
may be safely unfolded. Unfold the planter. Lower
the planter. Unfold one marker.
2.
Find the suggested initial marker Extension
in the
tables.
Refer to Figure 155 and Figure 156
3.
Measure out the Extension
distance from the
center-line of each outside end row unit. Do not
measure to center of row pair.
4.
Mark the ground at this point.
5.
To adjust marker width, loosen nuts
on U-bolts
.
Move marker disk tube
in or out to get the proper
adjustment. Tighten nuts
.
6.
Repeat step 3 through step 5 for the other side.
7.
With the planter still lowered, drive forward a few feet
for each side.
8.
Check mark locations. Adjust to obtain table value.

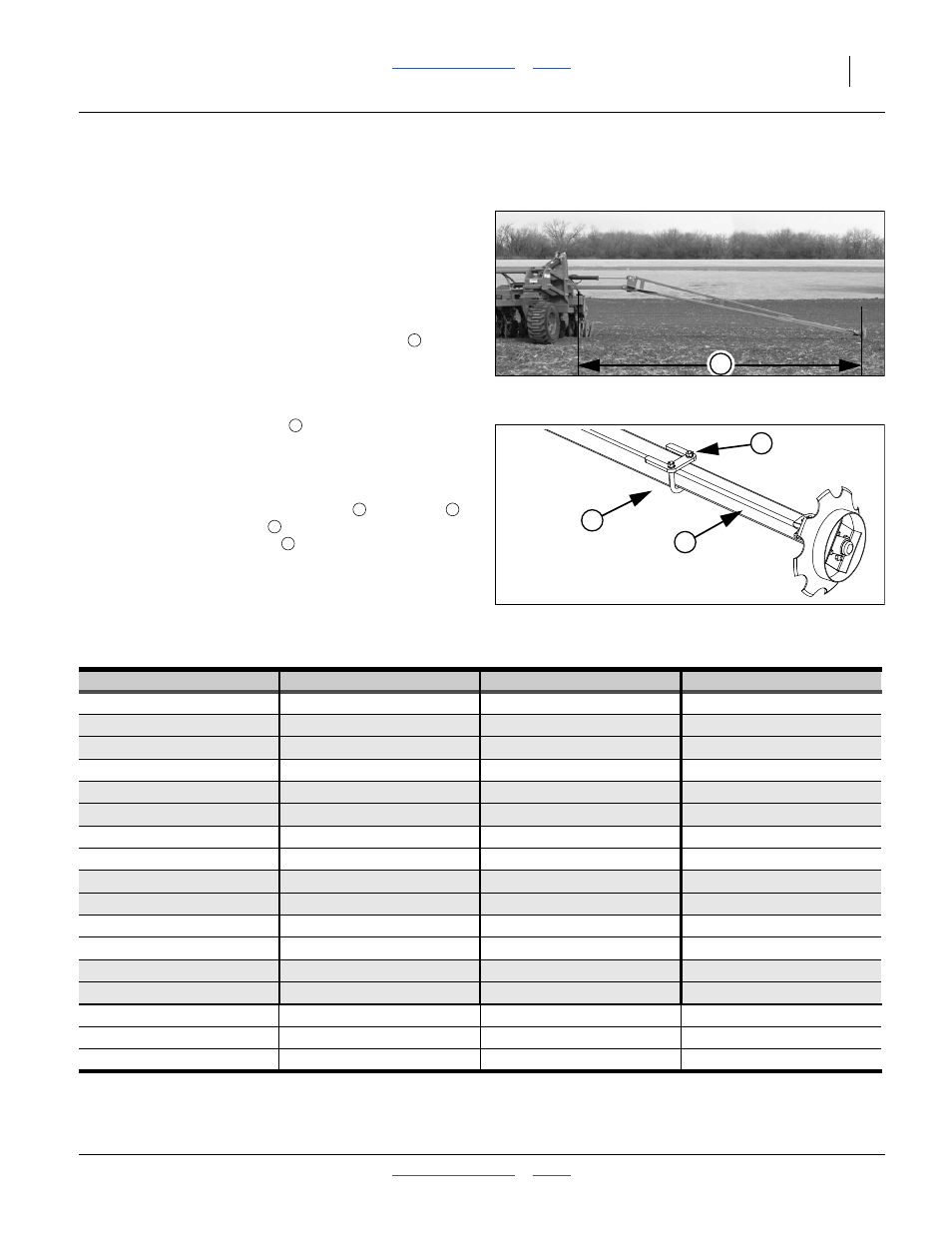

Figure 155
Marker Extension
29301
E
E
Figure 156
Marker Extension Adjustment
26055
1
2
3
E
1
2
3
1
Planter Model
Spacing Used
Left Extension
Right Extension
YP4025A-1630
30in (76.2cm)
255in (647.7cm)
255in (647.7cm)
YP4025A-1670
70cm (27.6in)
595cm (234.3in)
595cm (234.3in)
YP4025AF-1670
70cm (27.6in)
595cm (234.3in)
595cm (234.3in)
YP4025A-2420
20in (50.8cm)
250in (635cm)
250in (635cm)
YP4025A-3115
15in (38.1cm)
240in (609.6cm)
240in (609.6cm)
as -1630
30in (76.2cm)
255in (647.7cm)
255in (647.7cm)
YP4025A-3135
35cm (13.8in)
560cm (220.5in)
560cm (220.5in)
as -1670
70cm (27.6in)
595cm (234.3in)
595cm (234.3in)
YP4025A-3215
15in (38.1cm)
*247.5in (628.7cm)
*247.5in (628.7cm)
as -1630
30in (76.2cm)
255in (647.7cm)
240in (609.6cm)
YP4025A-32TR
Twin 30in (76.2cm)
251in (637.5cm)
251in (637.5cm)
as -1630
30in (76.2cm)
259in (657.9cm)
243in (617.2cm)
YP4025A-32TR70
Twin 70cm (27.6in)
584.8cm (230.3in)
584.8cm (230.3in)
as -1670
70cm (27.6in)
605.2cm (238.3in)
564.5cm (222.3in)
YP4025A/AR-4810
10 in. (25.4 cm)
245in (622.3cm)
245in (622.3cm)
as -2420
20 in. (50.8 cm)
255in (647.7cm)
215in (546.1cm)
as -1630 (1st row 2)
30 in. (76.2 cm)
255in (647.7cm)
255in (647.7cm)
* equipped with offset hitch (see Appendix B)
