Lift Cylinder Bleeding
Refer to Figure 132
1.
Unfold and lower planter.
2. Un-pin rod ends of all lift cylinders. Position cylinders
so that rod ends may extend without striking
machine parts.
3. Loosen the JIC fittings at the base end of each
master lift cylinder.
4. Extend the circuit until fluid appears at the loosened
fittings. Set circuit to Neutral and secure fittings.
5. Loosen the JIC fittings at the base end of each
slave lift cylinder.
6. Extend the circuit until fluid appears at the loosened
fittings. Set circuit to Neutral and secure fittings.
7. Re-pin rod ends.
Fold Cylinder Bleeding
Refer to Figure 133
1.
Begin with planter raised and lift cylinder locks
installed.
2. Un-pin cylinder rod ends. Orient cylinders so that rod
ends may extend without striking planter parts.
3. Loosen the JIC fittings , at the base end of all
cylinders.
4. Extend the circuit until fluid appears at the loosened
fittings. Set circuit to Neutral and secure fittings.
5. Loosen the JIC fittings , at the rod end of all fold
cylinders.
6. Retract the circuit until fluid appears at all fittings. Set
circuit to neutral and secure fittings.
7. Extend cylinders and re-pin cylinder rod ends.

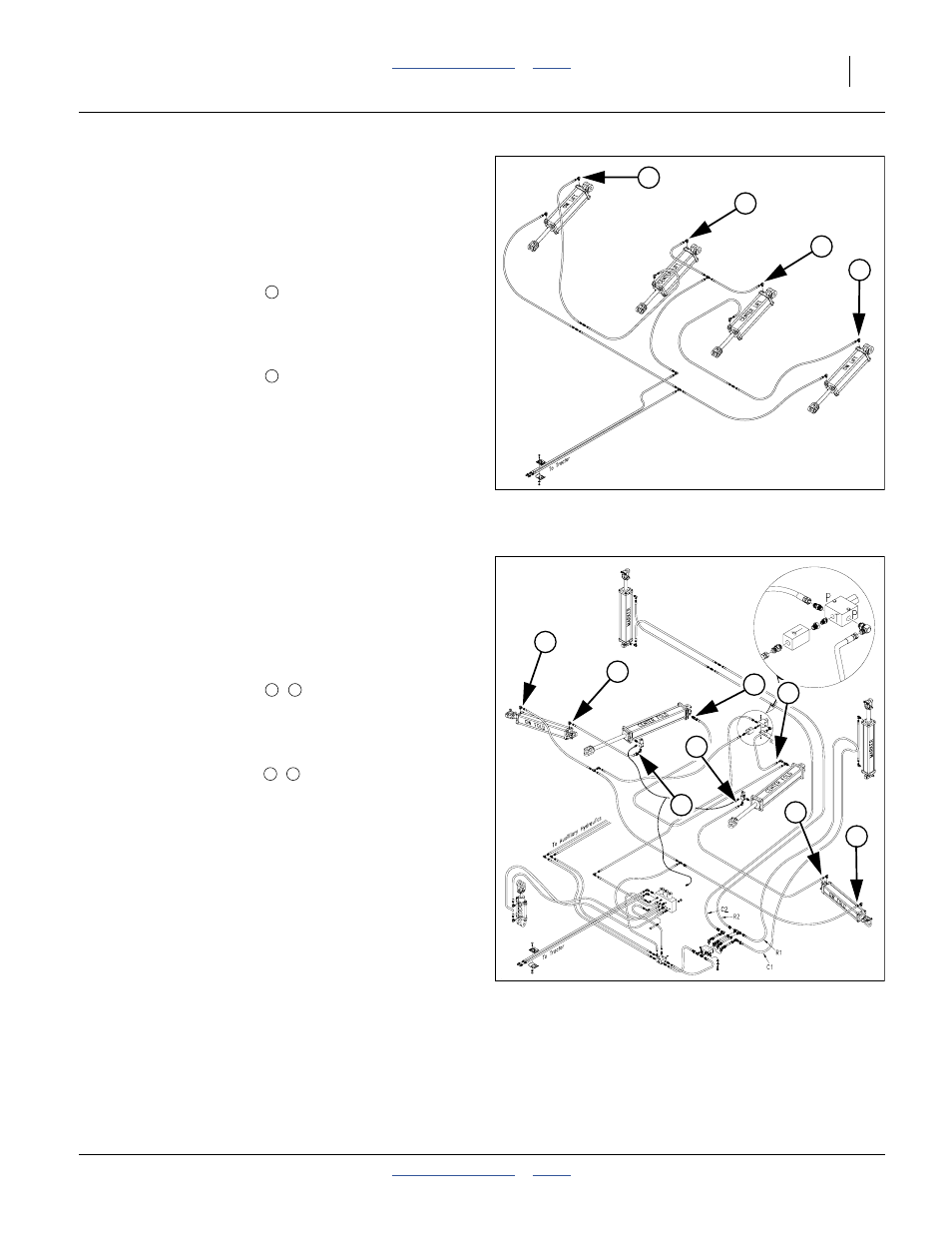

Figure 132
Lift Bleed
25227
1
2
1
2
1
2
Figure 133
Fold Bleed 29808
3
1
2
4
1
3
2
4
1 2
3 4
