Parking Stands
Store Main Parking Stand
Refer to Figure 9
1.
Raise the tractor hitch slightly to lift parking stands
off ground.
2. Remove the lower pin and the upper pin
holding the parking stand .
3. Move the stand from under the tongue to an inverted
position in the bracket
on the left side on the
tongue. Pin in place.
Storing 3-Point Parking Stands
Refer to Figure 10 (shown without tractor for clarity)
1. For the standard 3-point hitch, store the two forward
stands
by either of the following methods:
• Remove the top pin , swing the stand out, up and
vertical around the bottom pin , and re-insert the top
pin , or
• Remove the bottom pin , swing the stand inward, to
a horizontal positional under the hitch, and insert the
removed pin at hole
under the stand.
Refer to Figure 9
2.
Adjust the top link of a 3-point long enough so the
ball swivel
does not bottom out when fully raised.
3. Secure hoses so they do not get caught in ball
swivel
. Failure to do so could cause hose to be
crushed requiring hose replacement.

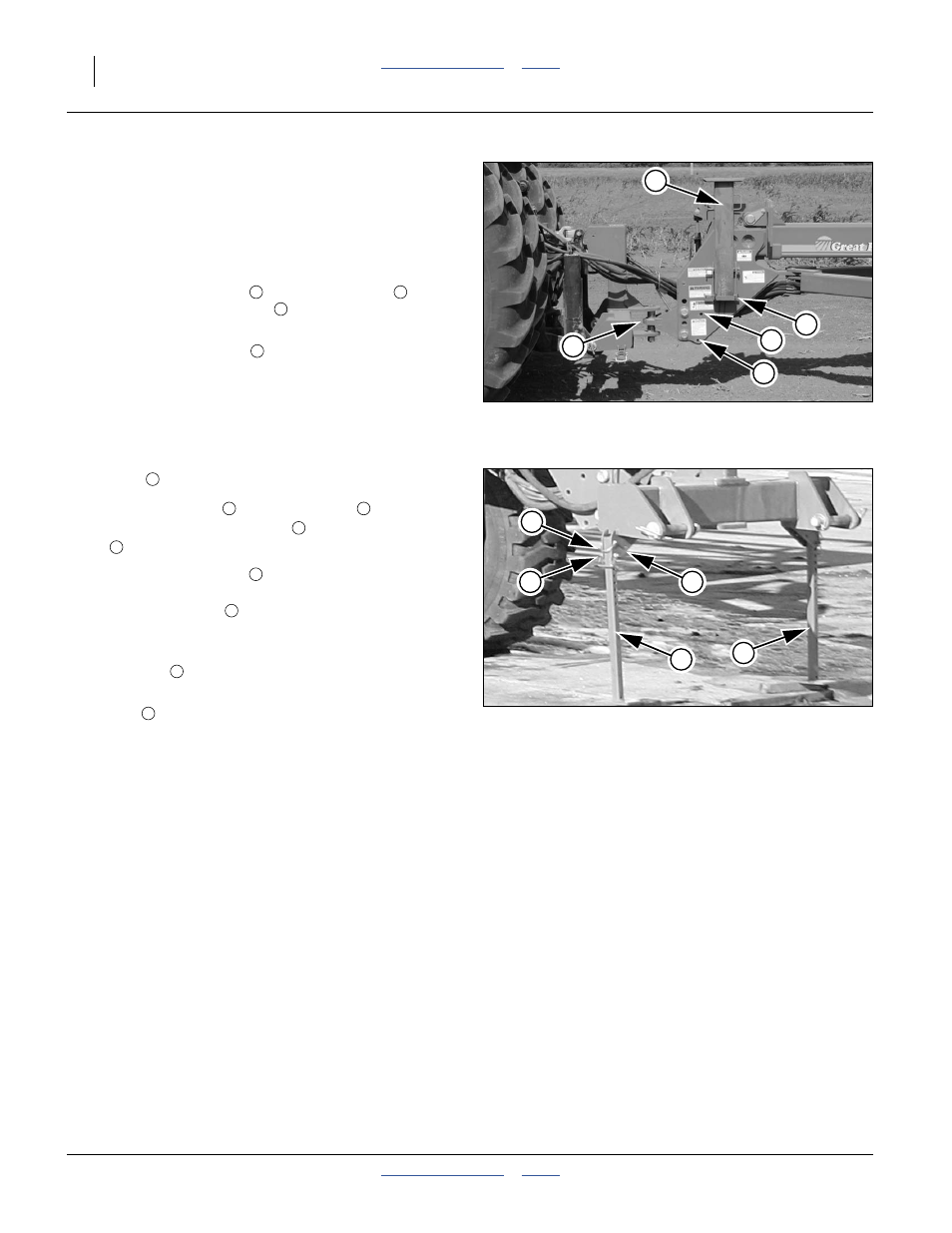

Figure 9
Main Parking Stand Stored
29242
2
1
3
4
5
1 2
3
4
Figure 10
Storing 3-Point Stands
26034
7
9 8
6
6
6
7 6
8
7
8
9
5
5
