Great Plains Manufacturing, Inc. Table of Contents Index 165
Appendix B - Initial and Option Setup
Pre-Delivery Items
These items are normally completed by the Great Plains
dealer prior to releasing the implement to the customer.

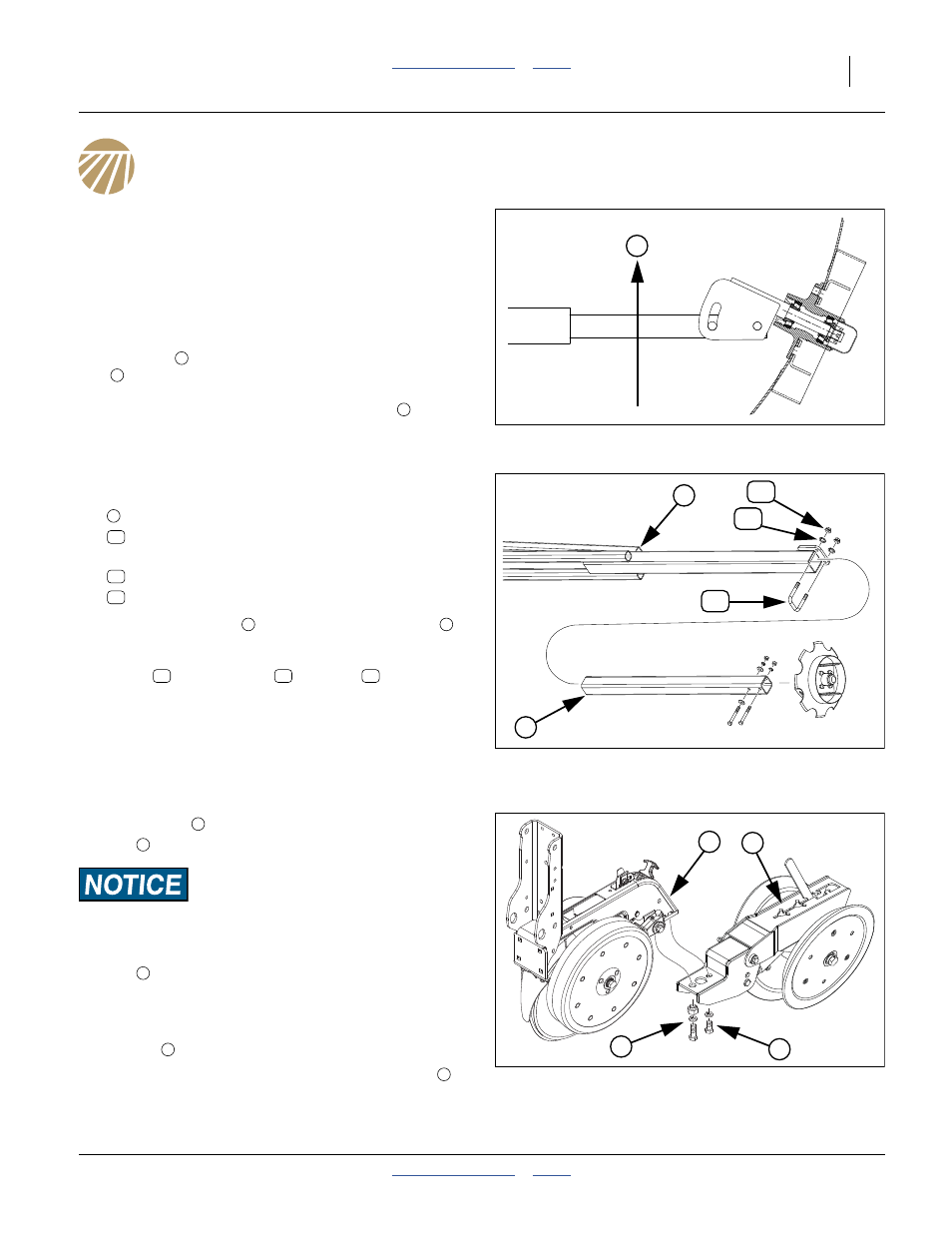

Install Upper Marker Components
Marker disks and end tubes are removed for shipping.
Refer to Figure 149
The end tube
may be inserted into the outer marker
arm in any of four orientations. Great Plains
recommends that the spindle adjustment allow the disk
to pivot back, away from the direction of travel
.
If the markers are extended for this work, also set the
initial marker extension based on the row spacing.
Refer to Figure 150
1.
At each marker, select one each:
marker disk and tube assembly
806-110C U-BOLT 5/8-11 X 3 1/32 X 4 1/2
and two sets:
803-021C NUT HEX 5/8-11 PLT
804-022C WASHER LOCK SPRING 5/8 PLT
2. Insert the end tube into the outer marker arm .
Insert to initial marker extension value, or about
halfway if extension is not known. Secure with
U-bolt
, lock washers and nuts .
Install Press Wheels
To meet highway clearance requirements, press wheel
arms and wheels on wing rows are not factory-installed.
Refer to Figure 151
1. Remove and save the
1 ⁄
2
-13x1inch hex head bolt
and washer at the back of an incomplete row
unit .
There are four bolts at this location. Remove only the hex head
bolts. Do not loosen or remove the square head bolts forward.
2. Remove and save the
1 ⁄
2
-13x1
1 ⁄
2
inch hex head
bolt , washer, and eccentric adjuster nut.
3. Align the
1 ⁄
2
inch holes in the press wheel assembly
with the
1 ⁄
2
-13 tapped holes in the row unit, loosely
assemble with the
1 ⁄
2
-13x1 inch hex head bolt and
washer .
4. Loosely screw in the
1 ⁄
2
-13x1
1 ⁄
2
in hex head bolt ,
washer, and eccentric adjuster nut. Rotate the
adjuster to visually align the press wheel assembly
with the row unit, and tight the adjust and both bolts.
Figure 149
Marker Disk Spindle Orientation
11757
T
1
2
T
Figure 150
Marker Final Assembly
29177
26
1
25
24
2
1
26
24
25
1 2
26 25 24
Figure 151
25AP Press Wheel Assembly
25383
1
2 4
3
2
3
4
2
4
