Great Plains Manufacturing, Inc.
Tractor Steering
57
2012-08-08
401-647Q
John Deere
®
Wheeled Native Sensor
Harness
Optional adaptor harness
for John Deere
®
tracked
tractors is necessary when the tractor wheel angle signal
cannot be obtained from the CANbus on the tractor.
Refer to Figure 97
80. The tractor Wheel Angle Sensor lead and harness
connection
can be found on the left side of the
tractor just below the air cleaner canister.
Refer to Figure 97 and Figure 98
81. Route the sensor input lead
of the master
module harness
from the sensor module
in
the cab, to the adaptor harness
just installed at
Mate the sensor input lead
to the sensor tap
lead
on the adaptor harness
.
82. Dress the sensor leads
and
along existing
harnesses, tubing, hoses and tractor fittings. Allow
slack near moving parts, routing through pivot
center-lines where possible. Avoid hot parts. Protect
the harness against strikes from brush and tall
stubble. Secure with cable ties.
• Uncouple the connectors at the wheel angle
sensor harness leads
.
• Insert the 833-548C adaptor harness
,
reconnecting the lead and harness through the
adaptor.

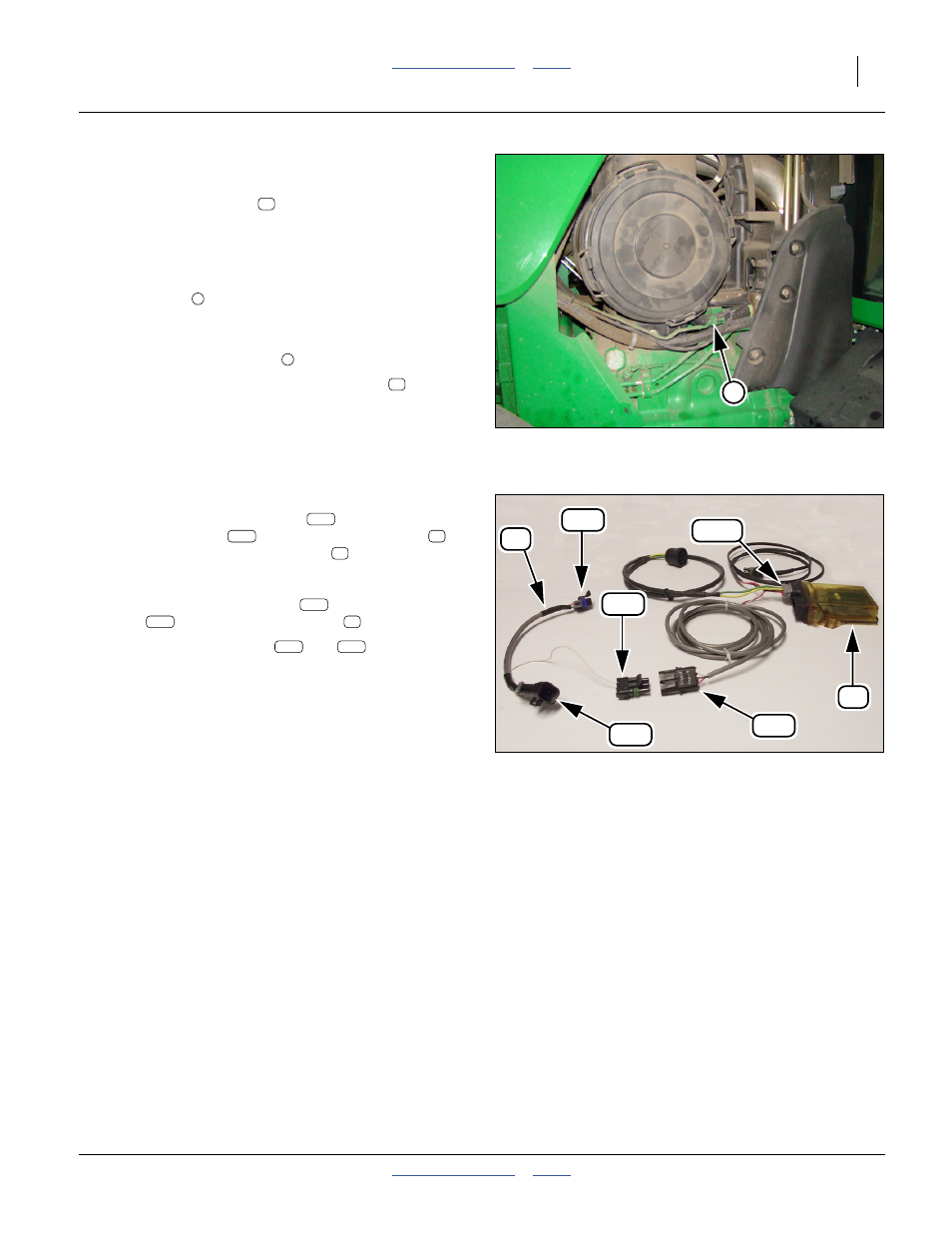

Figure 97
John Deere Wheeled Tractor
31949
1
75
2
75
Figure 98
John Deere Wheeled Tractors
Adaptor Harness
31850
75
74r
71
74G
74r
74G
71
75
74r
75
74r
