Connect Seed Hose Rack
Refer to Figure 51
For shipping, the seed tube hoses and rack (
or
)
that interconnect the air box and mainframe are strapped
to the walkboard. The seed tubes/rack need to be
dismounted and connected between the air box manifold
and the inner ends of the wing tubes.
Refer to Figure 50
78. Dismount the rack assembly from walkboard. It may
have a tag with the part number of the tube rack:
401-367K SEED TUBE RACK ASSY REAR 16
401-368K SEED TUBE RACK ASSY REAR 12
79. Identify rack orientation:
Ends: The hose lengths and mounting hardware are
different for each end of the rack. The end with the
longer hoses connects to the wing tubes. The end
with the shorter hoses connects to the air box. The
air box end also has pivot holes
in the frame.
Bottom: At the front (wing) end of the rack, the
bottom side frame has a short rail
on each side.
Refer to Figure 51
80. Note the idler spools
on each side of the inner
rear portion of the parallel arm brackets. The
forward end of the rack rests on these and is free to
slide during vertical movement of planter
components.
Refer to Figure 52
The rear ends of the outside tubes of the seed tube rack
have large holes
to accept a pivot sleeve for mounting.

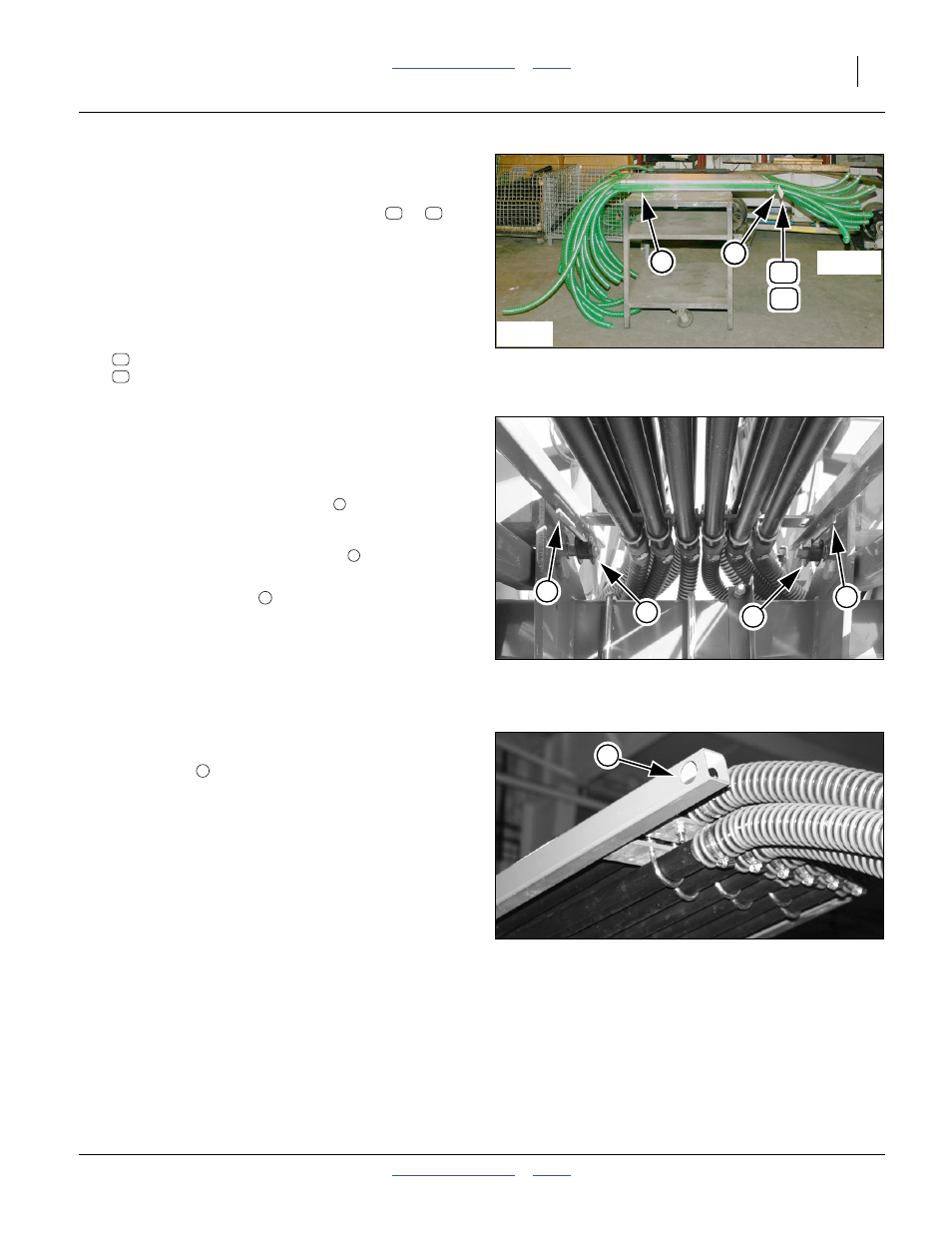

Figure 50
Seed Tube Rack, Dismounted
29944
15
16
Air Box
Wings
2
1
15
16
15
16
Figure 51
Seed Tube Rack, Below Forward
29170
3
3
2
2
1
2
3
Figure 52
Rear Rack Pivot Hole
25379
1
1
