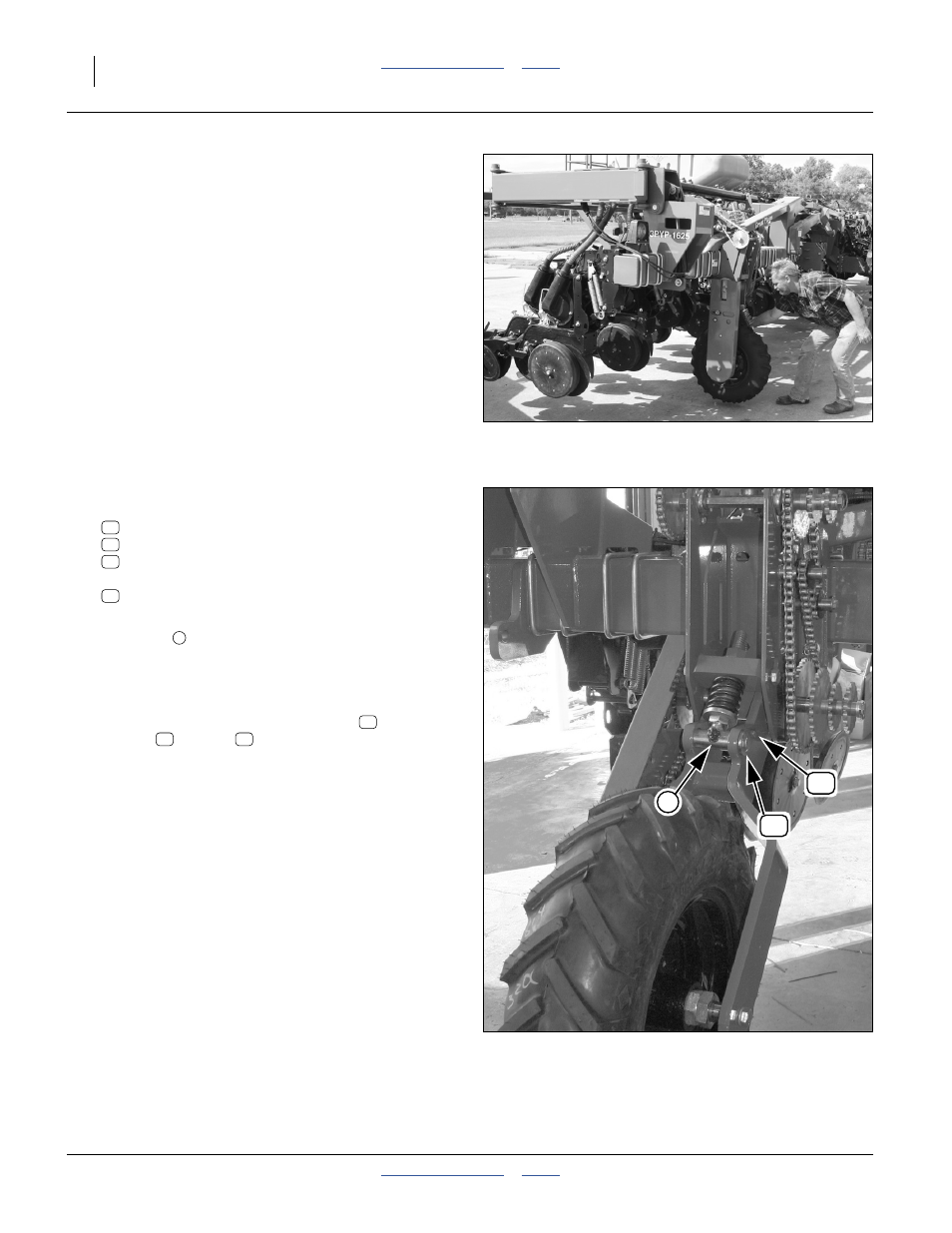

Refer to Figure 25
14. Swing the gauge wheels most of the way out in front
of the planter.
Refer to Figure 26
15. Remove and save one set (not all shown):
803-006C NUT HEX 1/4-20 PLT
804-006C WASHER LOCK SPRING 1/4 PLT
802-167C HHCS 1/4-20X1 1/2 GR5
and remove the pin:
402-209H PIN 1 X 4 5/8 NONROTATE
16. Orient the cross-tube of the adjustment rod
weldment so that the grease zerk is facing
forward.
17. Continue swinging wheel forward until cross-tube
aligns with pin hole.
18. Re-insert pin. Secure with saved bolt ,
washer and nut .
19. Repeat this for the other gauge wheel assembly.
Figure 25
Swing Gauge Wheels Forward
25361
Figure 26
Secure Gauge Wheel with Pin
29186
