34 3PYPA Table of Contents Index Great Plains Manufacturing, Inc.
401-647Q Table of Contents Index 2012-08-08
Connect Air Box Inlet Hose
Install Hose Routing Clamp

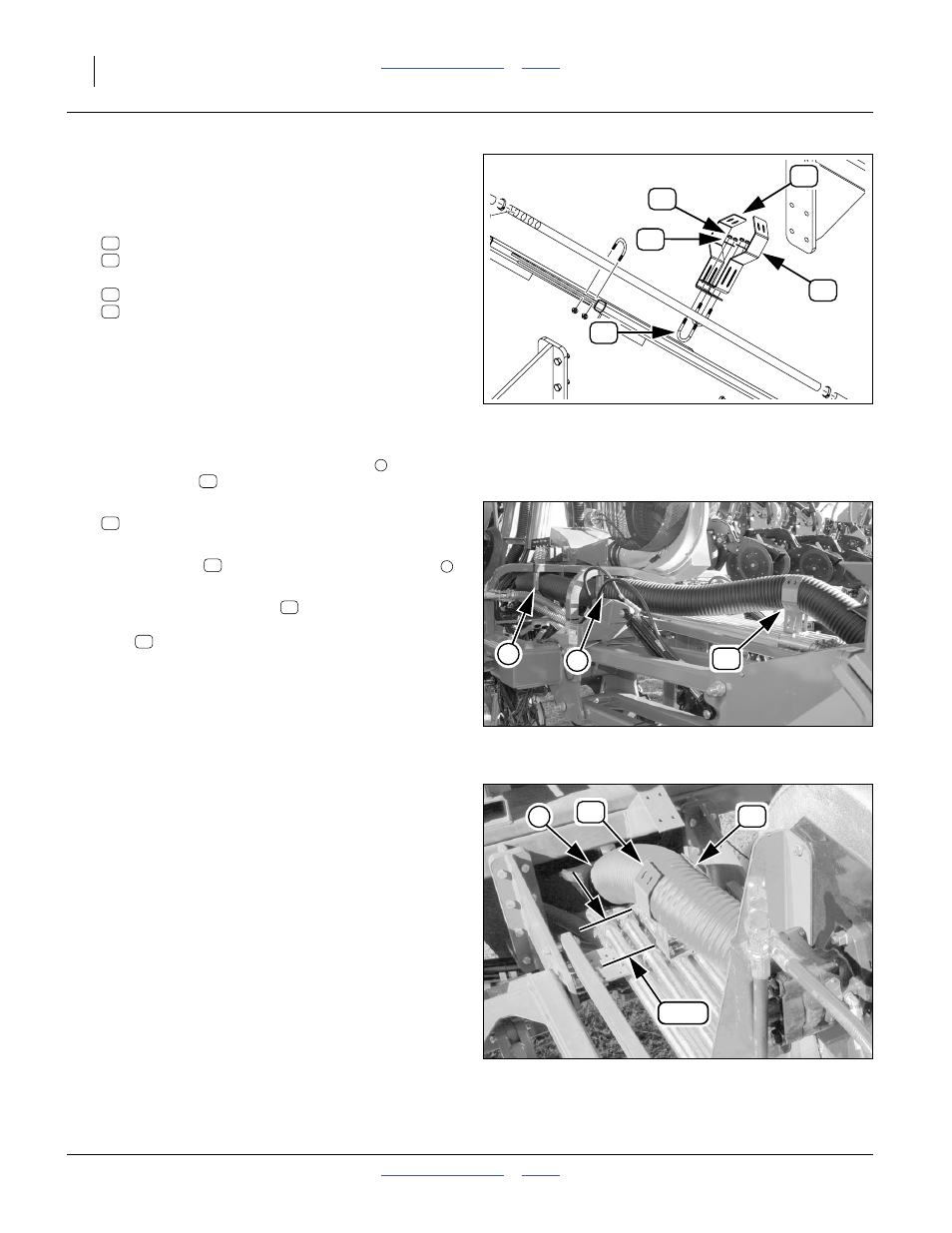

Refer to Figure 59, Figure 60 and Figure 61
92. Select two (2) each:
403-579D CLAMP, HOSE ROUTE 6 INCH
806-192C U-BOLT 5/16-18X1 1/2X2 1/2 RND
and four (4) sets:
804-036C WASHER FLAT 5/16 SAE PLT
803-084C NUT HEX NYLOCK 5/16-18 PLT
93. Loosely assemble the clamps to the top side of the
top level rack tube that is just right of center. Slide
the clamp down the tube, to a position
7 inches (18 cm) from the rear end of the tubes
(measured from rear edge of clamps to just beyond
hose clamps on tubes).
94. Route the large hose from the lower outlet of the fan
manifold, through the fan frame cradles and the
routing clamp .
95. Locate one (not shown):
800-151C CLAMP WRM DRV #96SS (4.75-6.5)
This may be on the hose or in a crate.
96. Add the clamp to the hose. Slide the hose end
onto the air box inlet. Secure with hose clamp.
97. Adjust the routing clamps so that they just keep
the hose from sliding in the clamps. Tighten the lock
nuts
just enough to keep the clamps from sliding
on the tube. Do not over-tighten the nuts, or the rack
tube may be damaged.
Figure 59
Air Box Inlet Hose Clamp
29839
25
25
64
59
49
25
64
59
49
1
25
Figure 60
Fan Outlet Hose Route
29949
25
1
1
31
31 2
25
49
Figure 61
Fan Outlet Hose
29946
25
25
2
7 in.
