Install GP Linear Sensor
The linear sensor is installed when not using native
tractor steering sensor or CANbus steering data.
Major subassemblies to install are:
• tractor steering sensor , with brand-model-specific
brackets, which detects tractor wheel pointing; and
• the cab steering switch console which controls
operation and calibration of the steering system.
Linear Sensor Parts
Components are not Universal:
Install only on listed tractors (page 5).
Contact Great Plains if any fitting issues are encountered.
Note: The parts illustrated and listed below are supplied
for tractor installation. Only two of the six provided
“BRKT SENSOR” brackets are used, depending
on tractor brand and model.
81
81
70

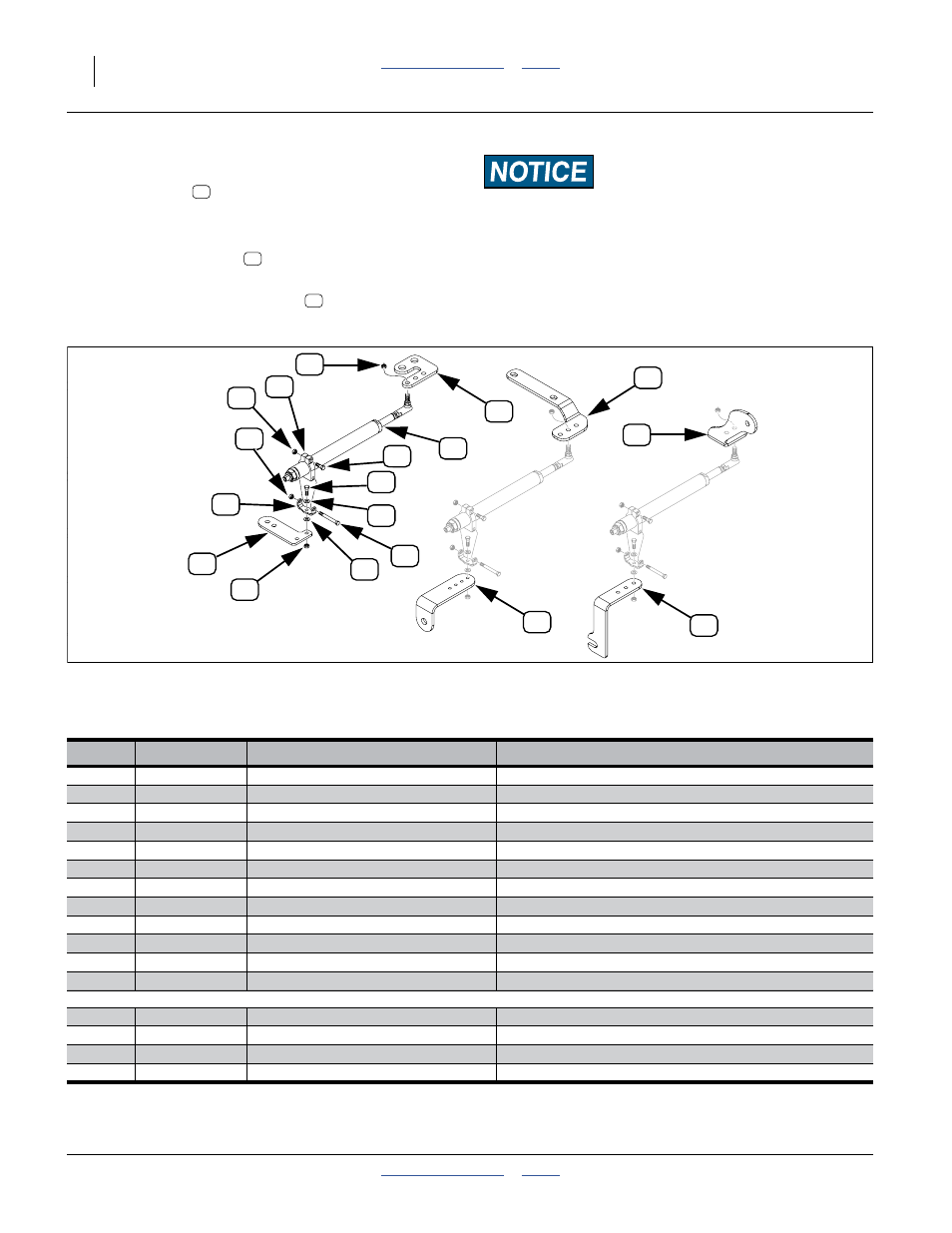

Figure 71
Steering Components for Tractor
29202
93
94
92
82
83
95
89
81
88
87
88
90
87
86
88
90
84
85
Case IH MX
Deere RFS
Deere ILS
Callout Part Number Descriptor Comment
401-748A LINEAR STEERING SENSOR OPT
81 401-541S SENSOR LIN
82 411-575D BRKT SENSOR JD FIXED for John Deere
®
8000 rigid front suspension (RFS)
83 411-580D BRKT SENSOR ROD END CASE MX for Case IH
®
MX/Magnum™
84 411-581D COLLAR
85 411-582D YOKE
86 802-097C HHCS 1/4-20X2 1/2 GR5
87 802-167C HHCS 1/4-20X1 1/2 GR5
88 803-255C NUT HEX NYLOCK 1/4-20
89 803-305C NUT HEX NYLOCK 3/8-24 PLT
90 804-007C WASHER FLAT 1/4 SAE PLT
91 833-438C HARNESS TRACTOR POSITION
Parts included with planter
92 411-576D BRKT SENSOR JD WHL for John Deere
®
8000 rigid front suspension (RFS)
93 411-577D BRKT SENSOR JD SUSPEN FIXED for John Deere
®
8000 ILS
94 411-578D BRKT SENSOR JD SUSPEN WHL for John Deere
®
8000 ILS
95 411-579D BRKT SENSOR BASE TRACTOR for Case IH
®
MX/Magnum™
