Install Lower Walkboard Step
Refer to Figure 62
98. Select two:
816-634C STEP EXTENSION RUBBER
and four (4) sets:
802-091C HHCS 1/2-13X1 1/2 GR5
804-016C WASHER FLAT 1/2 SAE PLT
803-019C NUT LOCK 1/2-13 PLT
99. Insert the bolts from the inside of the bottom four
holes of the existing ladder . Align the rubber
extensions to cant out (following the angle of the
ladder) and place them over the bolt threads.
Loosely secure with washers
and lock nuts .
100. Select one:
401-591H STEP SINGLE BOLT-ON
and four (4) sets:
802-091C HHCS 1/2-13X1 1/2 GR5
804-016C WASHER FLAT 1/2 SAE PLT
803-019C NUT LOCK 1/2-13 PLT
101. Insert the bolts from the inside of the bottom four
holes of the new step . Align the rubber
extensions over the bolt threads. Add
washers and lock nuts . Secure all nuts
(tighten to Grade 2 torque specification).

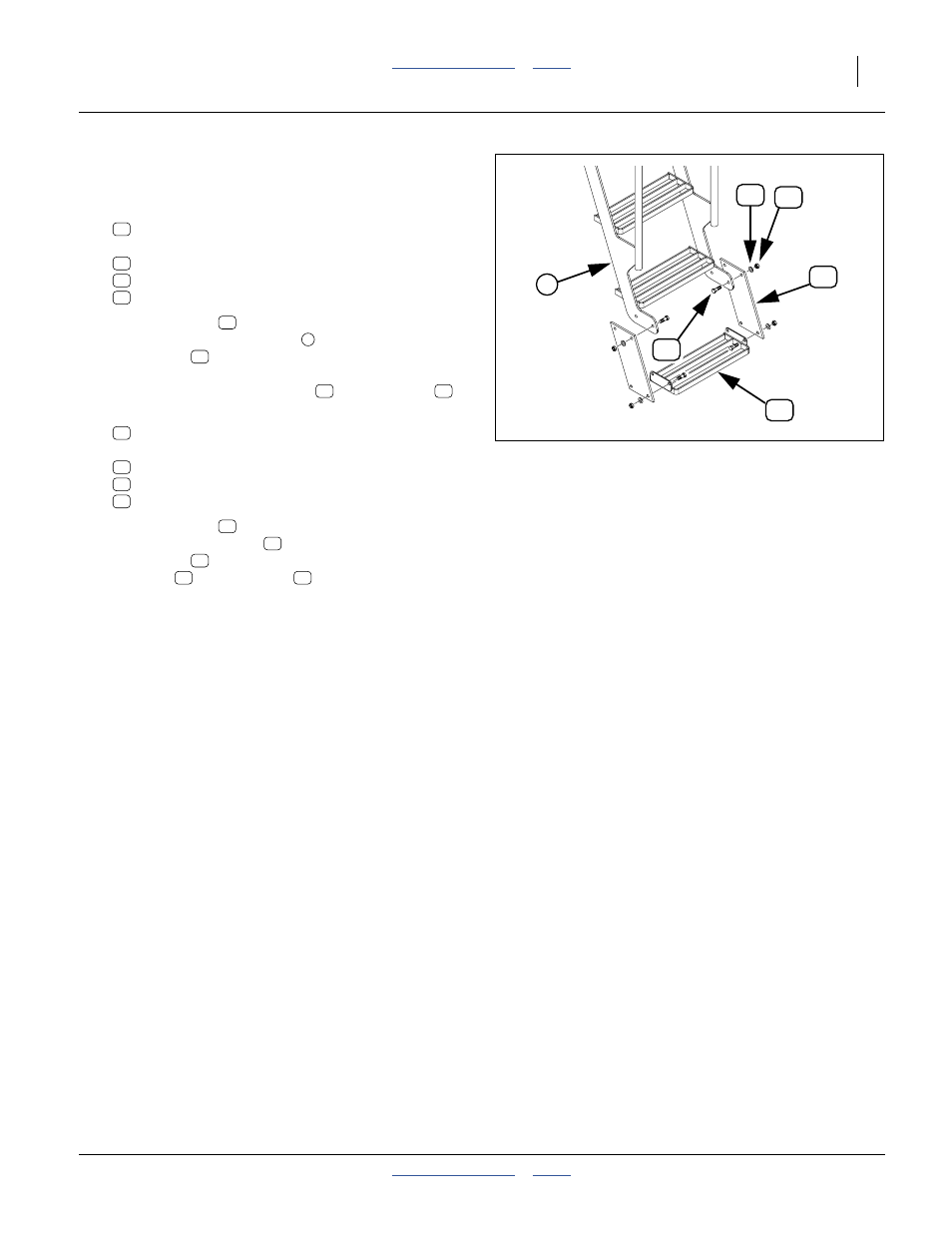

Figure 62
Step Installation
29104
57
3
45
38
67
18
67
38
57
45
38
3
67
57 45
18
38
57
45
38
18
67
57 45
