Install Row Unit Side Wheels
This applies to Model 3PYPA-3115 only. For all other
models, skip to step 110.
On 3PYPA planters with 15-inch single row spacings, the
side depth gauge wheels are left uninstalled on four
rows, to permit the wing gauge wheel to fold under the
wing for shipment.
Refer to Figure 65
106. Select one of the side depth gauge wheels, which
may be one of:
814-173C 4 X 16 GAUGE TIRE ASSY-PLASTIC
814-257C 2.5X16 SIDE DEPTH WHEEL ASSY
814-260C 3X16 SIDE DEPTH WHEEL ASSY
107. Select one each:
802-646C HHCS 5/8-11 X 3 GR8
804-022C WASHER LOCK SPRING 5/8 PLT
804-195C WASHER FLAT 1.31ODX.65IDX.188T
and six (6) each:
804-040C WASHER MACH 1.19 X .63 X 18GA
108. Place the lock washer and three (3) of the
machine washers on the bolt . Insert the bolt
assembly through the outside face of the wheel .
109. Add the flat washer and the remaining machine
washers to the bolt. Secure the wheel assembly
to the arm .
Hopper Installation
Refer to Figure 66
110. If the 82 bushel hopper is included, set it on the
support structure with the slide gate facing to the
rear. Secure it in place with the pins. See Operator
Manual for mounting instructions.
111. If the standard 833-253C level sensor is installed on
the hopper, and a 466820710S3 extension cable is
available, route the extension cable along the
steering hose/cable bundle to the mainframe.
Connect the forward end to the mainframe harness
lead “HOPPER 2”. Secure extension cable to
existing bundle with tie wraps.
112. Close and secure the walkboard.

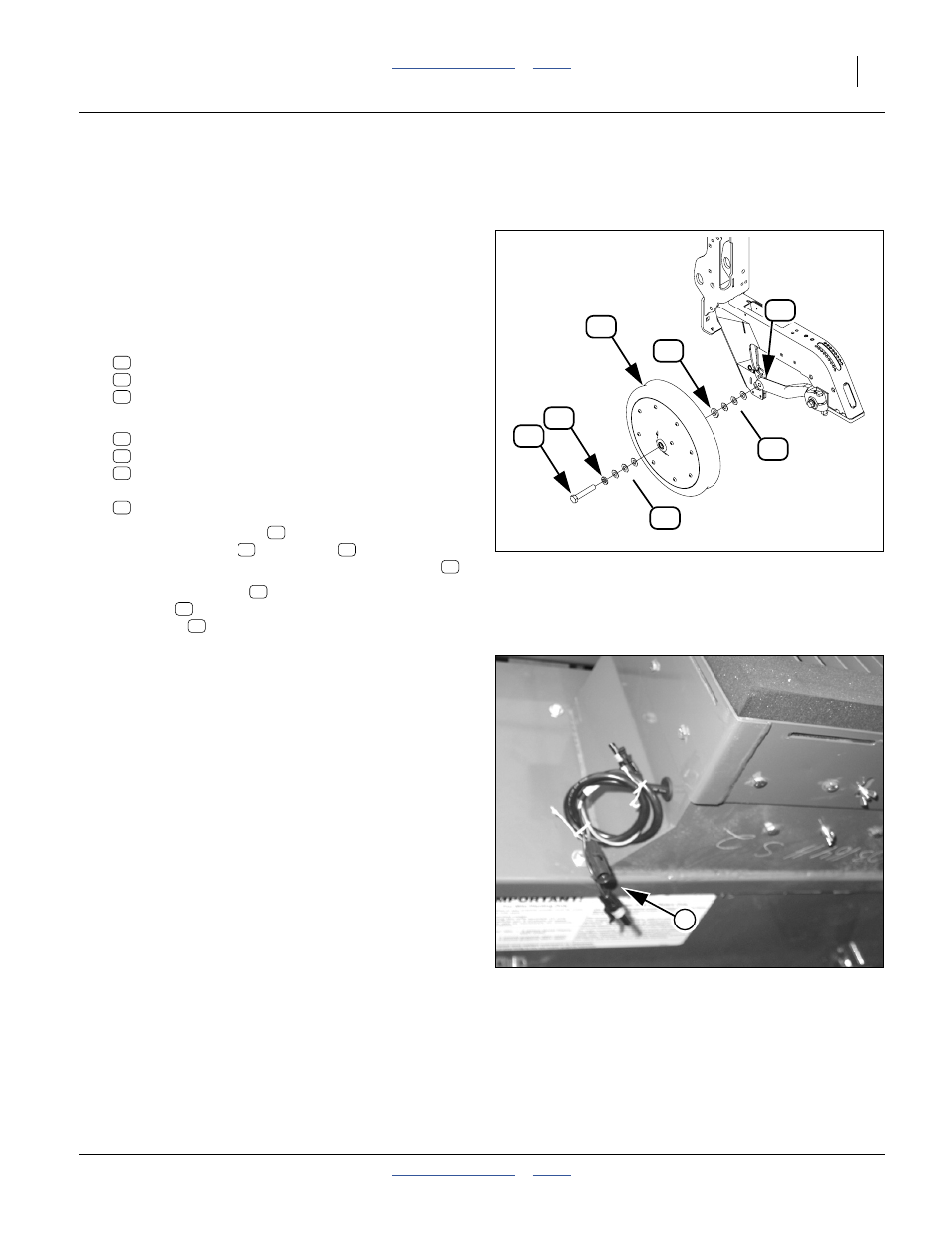

Figure 65
Side Gauge Wheel Installation
29954
69
42
58
63
60
26
{
{
60
69
69
69
42
58
63
60
58
60 42
69
63
60
26
Figure 66
Hopper Sensor Lead
25382
3
