Install Press Wheel Assemblies
Refer to Figure 63 and Figure 64
If any press wheel assemblies
were shipped
separately, or removed at step 22, install them now.
Note: With twin row planters, long and short press wheel
arm mount boxes are alternated every other row.
The long box is identified by the notches on its side
plate. The long box belongs on the right hand row
of a set of twins.
102. Remove and save the
1 ⁄
2
-13
× 1 inch hex head bolt
and washer at the back of one of the center row
units .
Avoid Alignment Disturbance:
There are four bolts at this location. Remove only the hex head
bolts. Do not loosen or remove the square head bolts forward.
103. Remove and save the
1 ⁄
2
-13
× 1 1 ⁄
2
inch hex head
bolt , washer, and eccentric adjuster nut.
104. Align the
1 ⁄
2
in holes in the press wheel assembly
with the
1 ⁄
2
-13 tapped holes in the row unit, loosely
assemble with the
1 ⁄
2
-13
× 1 inch hex head bolt and
washer .
105. Loosely screw in the
1 ⁄
2
-13 × 1 1 ⁄
2
inch hex head
bolt , washer, and eccentric adjuster nut. Rotate
the adjuster to visually align the press wheel
assembly with the row unit, and tight the adjust and
both bolts.

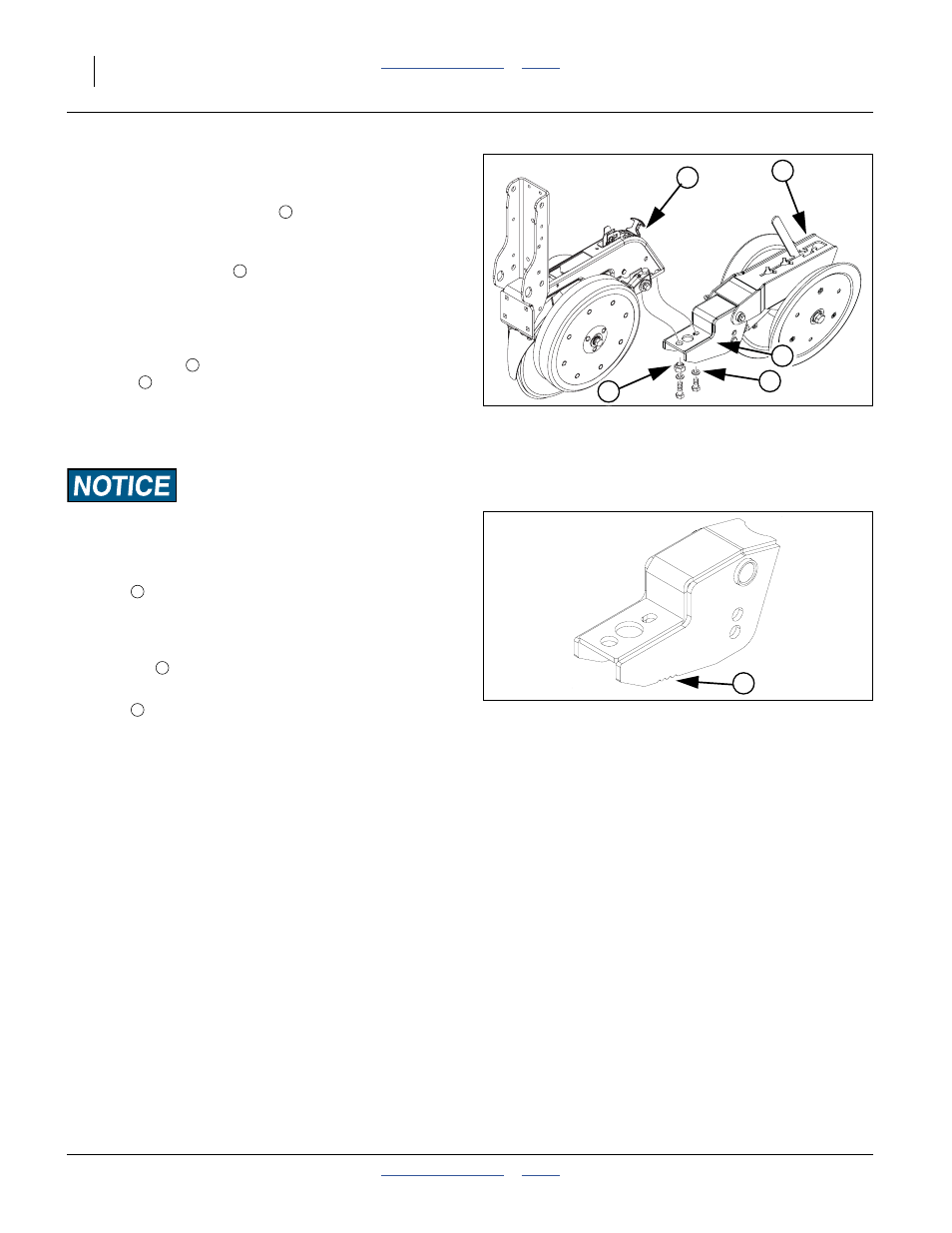

Figure 63
Press Wheel Installation
25383
4
5
7
6
8
4
8
5
6
Figure 64
Notches Identify Long Press
Wheel Box
32191
8
7
5
7
