Install Harness for Native Steering
Sensor
One of the following harnesses, ordered separately, is
used only when the tractor’s own (native) wheel angle
sensor (raw sensor data) is used for planter steering.
These harnesses are not used when the Great Plains
linear sensor is used, nor when CANbus steering data is
used.
Refer to Figure 90
71. Locate and select one of, and continue at the page
indicated:
833-544C
HARNESS CNH WHEEL ANGLE SENSOR WHEEL TYPE
for Case/New Holland Wheel Tractors - required for
all Case and New Holland tractors that are factory
equipped as auto-steer ready or have factory
installed auto-steer.
Continue at “Case or New Holland Native Sensor
Harness” on page 55.
833-546C
HARNESS JD WHEEL ANGLE SENSOR TRACK TYPE
for John Deere
®
Track Tractors - required for all
John Deere
®
tracked tractors.
Continue at “John Deere
®
Wheeled Native
Sensor Harness” on page 57.
833-548C
HARNESS JD WHEEL ANGLE SENSOR WHEEL TYPE
for John Deere
®
Wheel Tractors - required for
non-ISO compatible John Deere
®
wheeled
tractors.Continue at “John Deere
®
Tracked Native
Sensor Harness” on page 56.

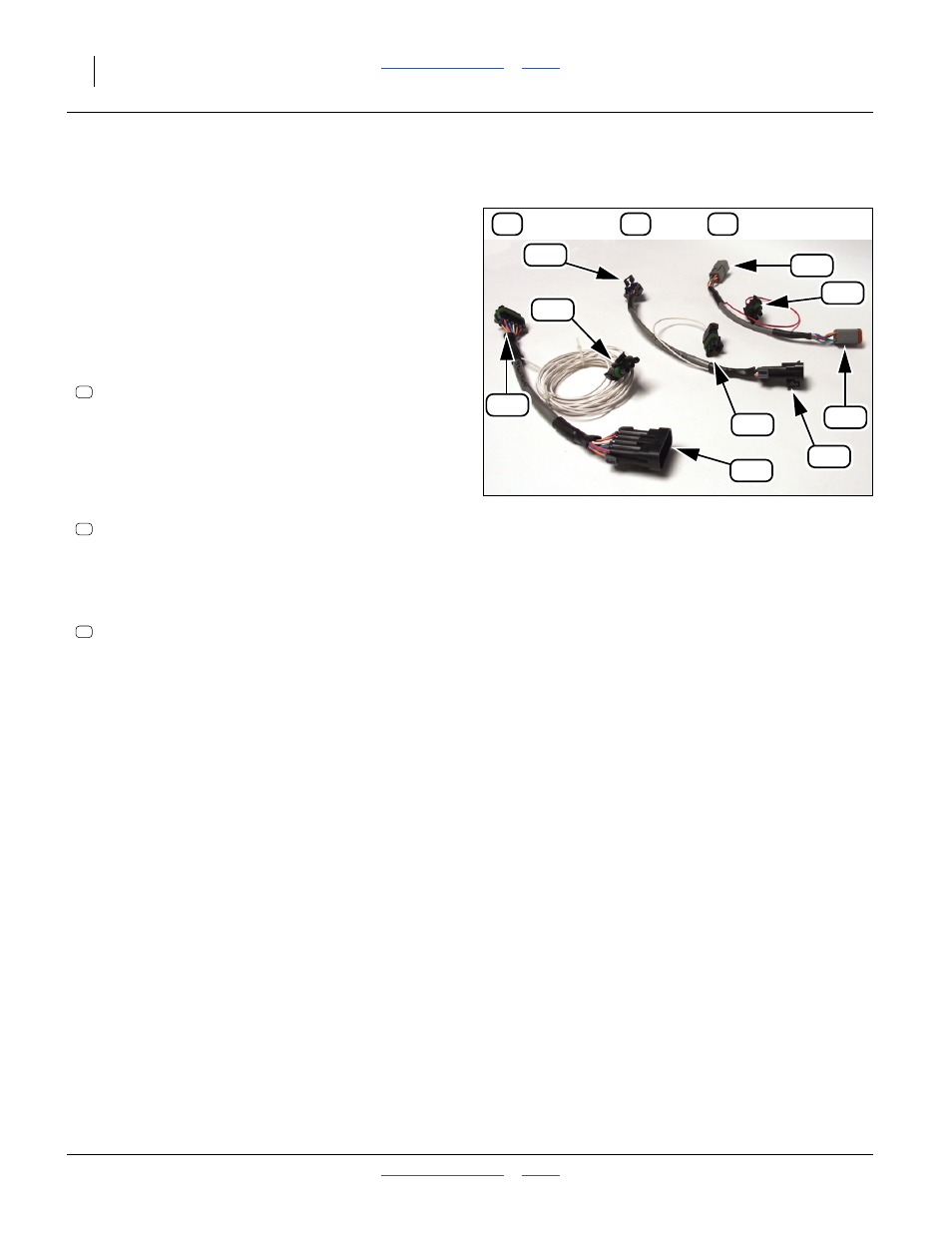

Figure 90
