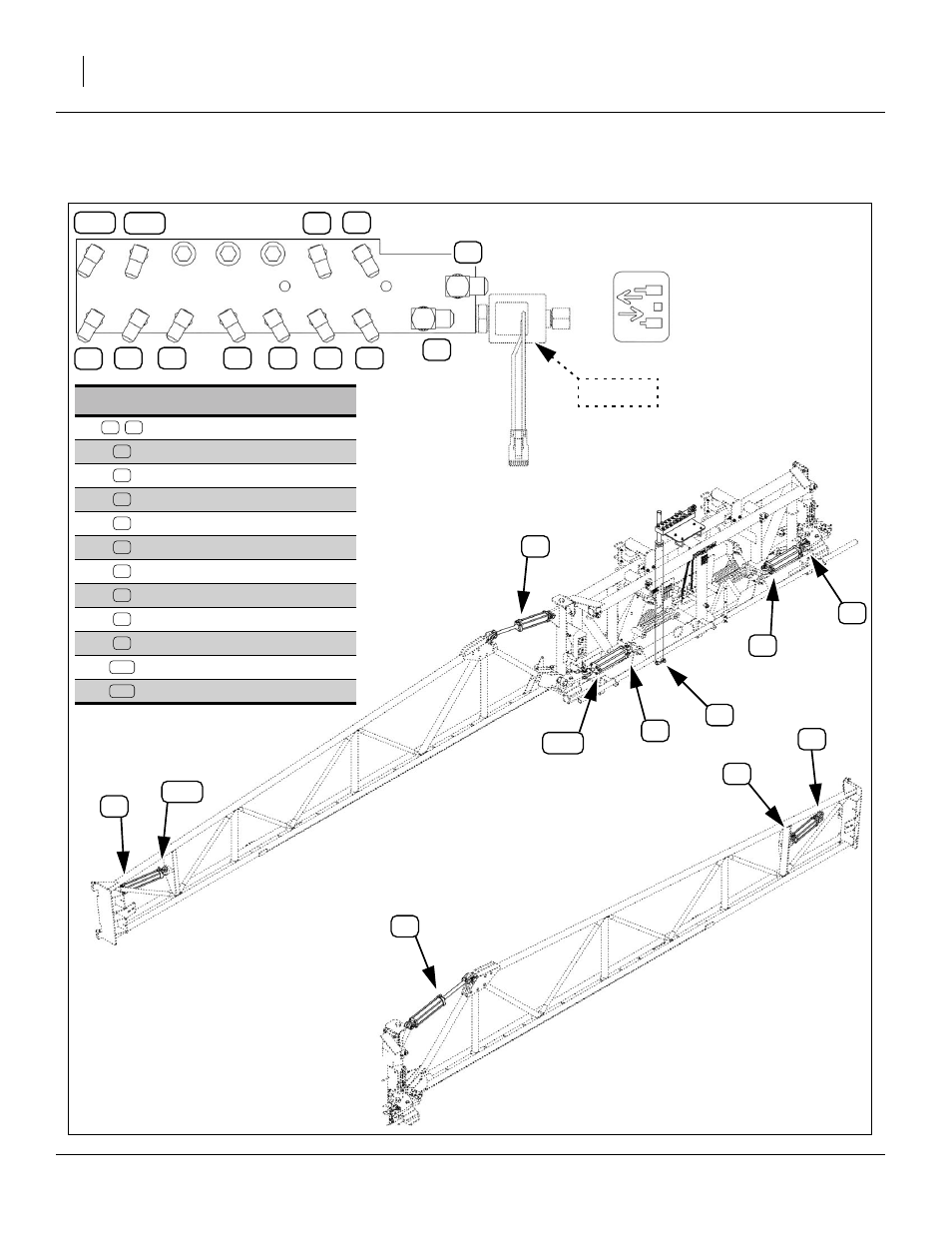

Hydraulic and Plumbing Diagrams
Boom Hydraulics
C13
C2 C1 C3 C4 C5 C6 C7
C8 C9 C14
P
T
C1
C8
C3
C9
C2
C4
C6
C13
C5
C14
C7
Valve Port Function
, Tractor Remote Circuit
Right Outer Boom Fold
Right Inner Boom Fold
Right Boom Lift
Elevator Lift
Left Boom Lift
Left Inner Boom Unfold
Left Outer Boom Fold
Right Outer Boom Unfold
Right Inner Boom Unfold
Left Inner Boom Fold
Left Outer Boom Unfold
P T
C1
C2
C3
C4
C5
C6
C7
C8
C9
C13
C14
