500-642M 01/12/2012
16 TSF1060 and TSF1260 Great Plains Manufacturing, Inc.
Introduction
Great Plains welcomes you to its growing family of new
product owners. Your Front Fold Boom Sprayer has been
designed with care and built by skilled workers using
quality materials. Proper setup, maintenance, and safe
operating practices will help you get years of satisfactory
use from the machine.
Document Family
500-642M Owner’s Manual (this document)
500-642P Parts Manual
509-200M Application Guide
832-038C Nozzle Calculator (U.S.customary units)
832-058C Nozzle Calculator (metric)
Description of Unit
TSF1060 and TSF1260 are pull-type implements. They
have a working width of 60 feet (18.3m). The level float
boom is fully suspended starting with vertical spring sus-
pension in a 42in (107cm) hydraulic elevator which pro-
vides a wide range of boom height adjustment along with
gas shocks that provide side-to-side stability.
Models Covered
Intended Usage
Use these booms as part of a pressurized sprayer sys-
tem to apply liquid pesticides, herbicides or fertilizers to
production-agriculture crops only. Do not modify sprayer
for use with attachments other than those approved by
Great Plains.
Using This Manual
This manual will familiarize you with safety, assembly,
operation, adjustments, troubleshooting, and mainte-
nance. Read this manual and follow the recommenda-
tions to help ensure safe and efficient operation.
The information in this manual is current at printing.
Some parts may change to assure top performance.
Definitions
The following terms are used throughout this manual.
Paragraphs in this format present a crucial point of information
related to the current topic.
Read and follow the directions to:
- remain safe,
- avoid serious damage to equipment and
- ensure desired field results.
Note: Paragraphs in this format provide useful informa-
tion related to the current topic.
Right-hand and left-hand as used in this manual are
determined by facing the direction the machine will travel
while in use unless otherwise stated.
TSF-1060-2530 1000 Gallon 60ft 25 Nozzles at 30in
TSF-1060-3620 1000 Gallon 60ft 36 Nozzles at 20in
TSF-1260-2530 1250 Gallon 60ft 25 Nozzles at 30in
TSF-1260-3620 1250 Gallon 60ft 36 Nozzles at 20in

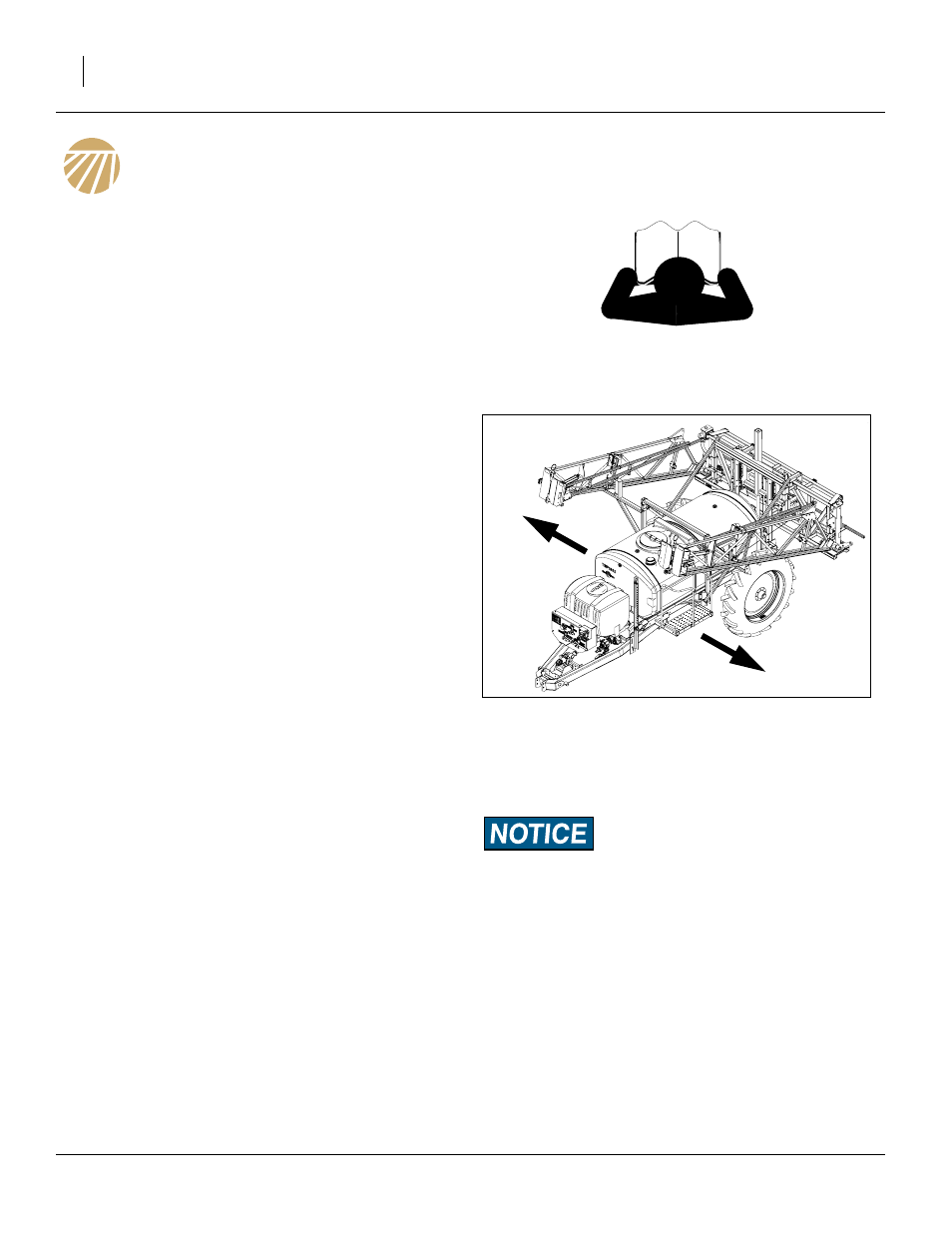

Figure 1
Left/Right Notation
22832
L
R
