Autoboom
The Raven G1 Autoboom system consists of:
• adjustable gauge wheel assemblies with pressure
transducers for lift sensing,
• on-sprayer hydraulic control valve assembly, plumbed
into existing sprayer lines, and;
• a cab control module with harness connections to
valve block, sensors and power.
The standard kit is for tractors with closed center hydrau-
lics. The sprayer-side components of the Autoboom are
dealer-installed.
The Autoboom includes separate installation and opera-
tion manuals.
Axles and Wheels
All sprayers are available with North American or Export
axles. Sprayers shipped by intermodal container must
have export axles. Export models have shorter axle
tubes. Available wheel-to-wheel span is:
N.America: 80 to 120 inches (203 to 305cm)
Export: 203 to 290cm (80 to 114in).
1000 gallon sprayers (TSF-1080/1090) have a further
choice of:
13.6x38 wheels and two-step ladder, or
14.9 R46 wheels and three-step ladder.
1250 gallon sprayers (TSF-1260) use only 14.9 R46
wheels.
For setup, see “Axle Wheel Spacing Adjustment” on page 56.
Description Part Numbers
RAVEN G1 AUTOBOOM ASY 2007+ 833-421C
G1 OPEN CENTER CONV. 833-422C
RAVEN G1 AUTOBOOM ASY 2006- 510-038A
Description Option
Part
Numbers
13.6-38 Wheel, N.America
SN A1157F-
70 504-037A
13.6-38 Wheel, Export
SN A1157F-
72 504-046A
14.9 R46 Wheel, N.America 71 504-036A
14.9 R46 Wheel, Export 73 504-047A
320/85R38 WHEEL & AXLE ASSY
SN A1158F+
70 504-051A
320/85R38 WHEEL & AXLE ASY EXP
SN A1158F+
71 504-052A

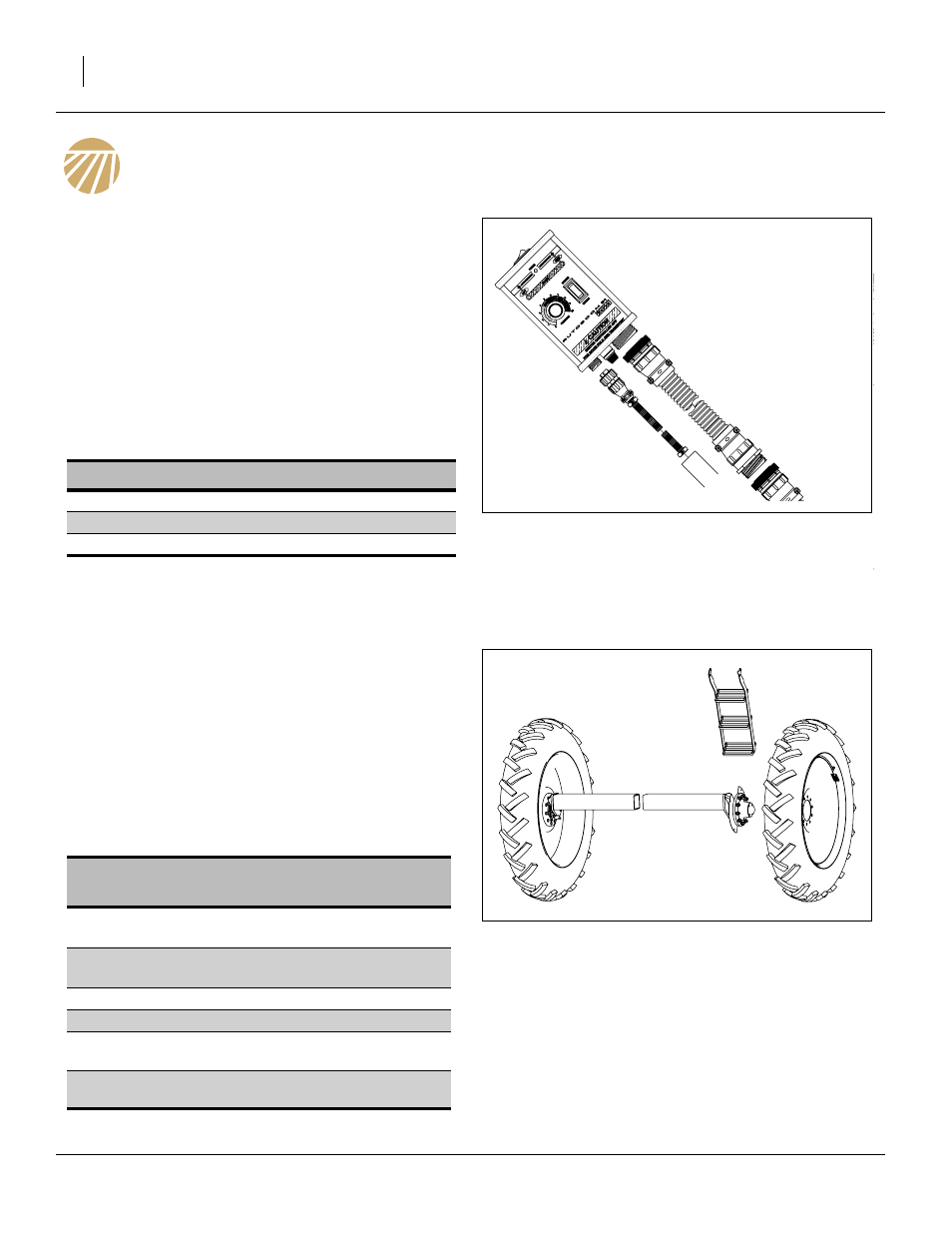

Figure 63
Raven G1 Autoboom Controller
25023
Figure 64
Wheels, Axles and Ladder
27300
