Great Plains Manufacturing, Inc.

Preparation and Setup

29

01/12/2012

500-642M

Hydraulic Valve Control

Refer to Figure 24
Install the Fasse valve switch box in a convenient loca-
tion in the tractor cab.

The Fasse controller requires a connection to the tractor
battery. Use the 6 ft, two-wire red and black cable to con-
nect the hydraulic controls. Connect red wire from each
cable to positive terminal and black wire from each cable
to negative terminal.

If no foam marker is installed, one 4-pin connector

is

not used.

Foam Marker Control (Option)

This option includes a separate installation and operation
manual.

If ordered with the sprayer, the foam marker is factory-
installed and cabled to the Fasse harness.

Raven Auto-Boom (Option)

This option includes a separate installation and operation
manual.

Refer to Figure 25
Dealer installation of the AutoBoom normally includes on
the sprayer-side components. Install the controller mod-
ule at a convenient location in the tractor cab.

Connect the unterminated ends of the power lead

to a

switched source of 12Vdc power (black-, red+).

Route the control harness

to the hitch.

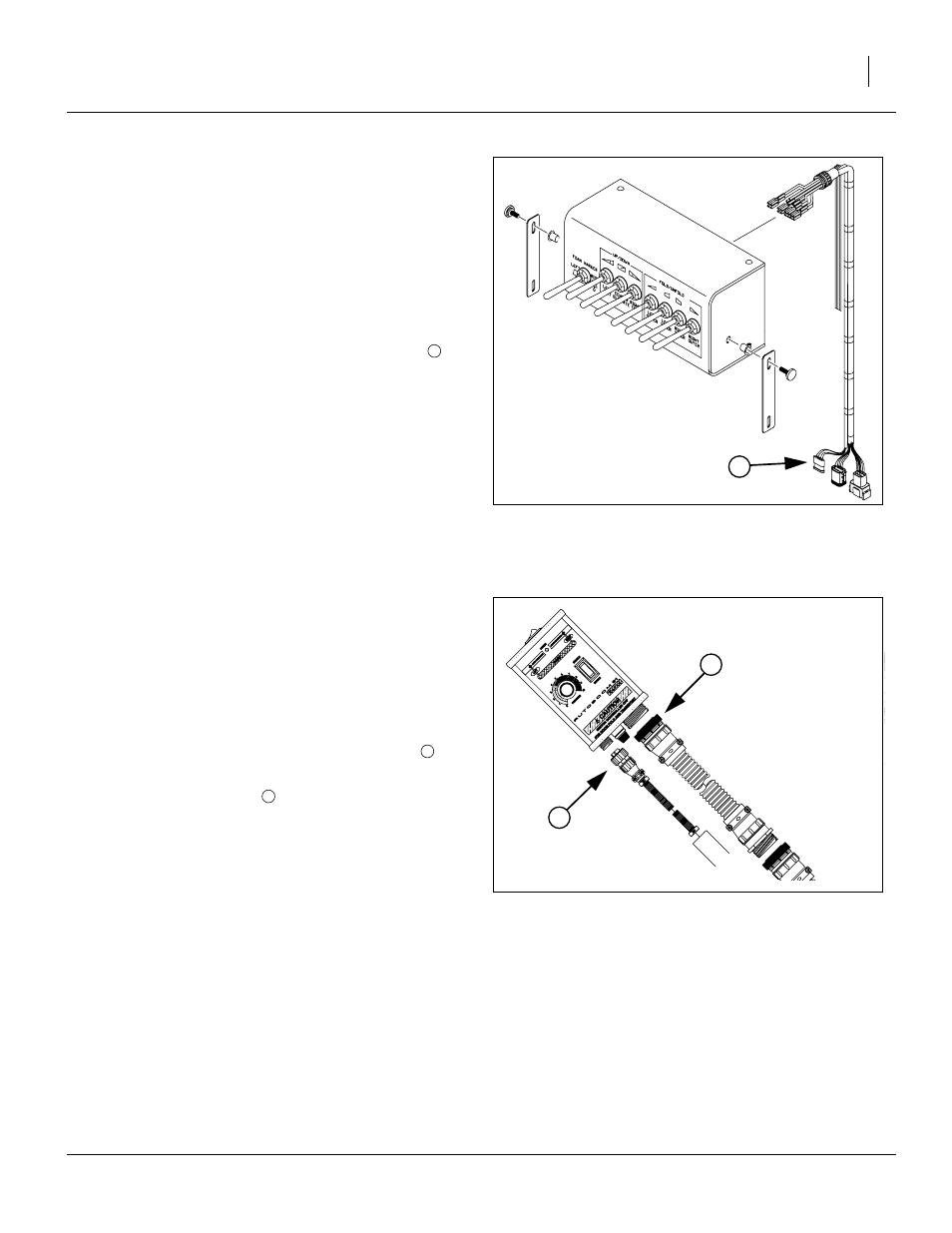

Figure 24

Fasse Valve Switch Box

27272

1

1

Figure 25

Raven G1 Autoboom Controller

25023

1

2

1

2
