76

TSF1060 and TSF1260

Great Plains Manufacturing, Inc.

500-642M

01/12/2012

For use, see “Ace Pump Flow Limiter (Option)” on
page 26.

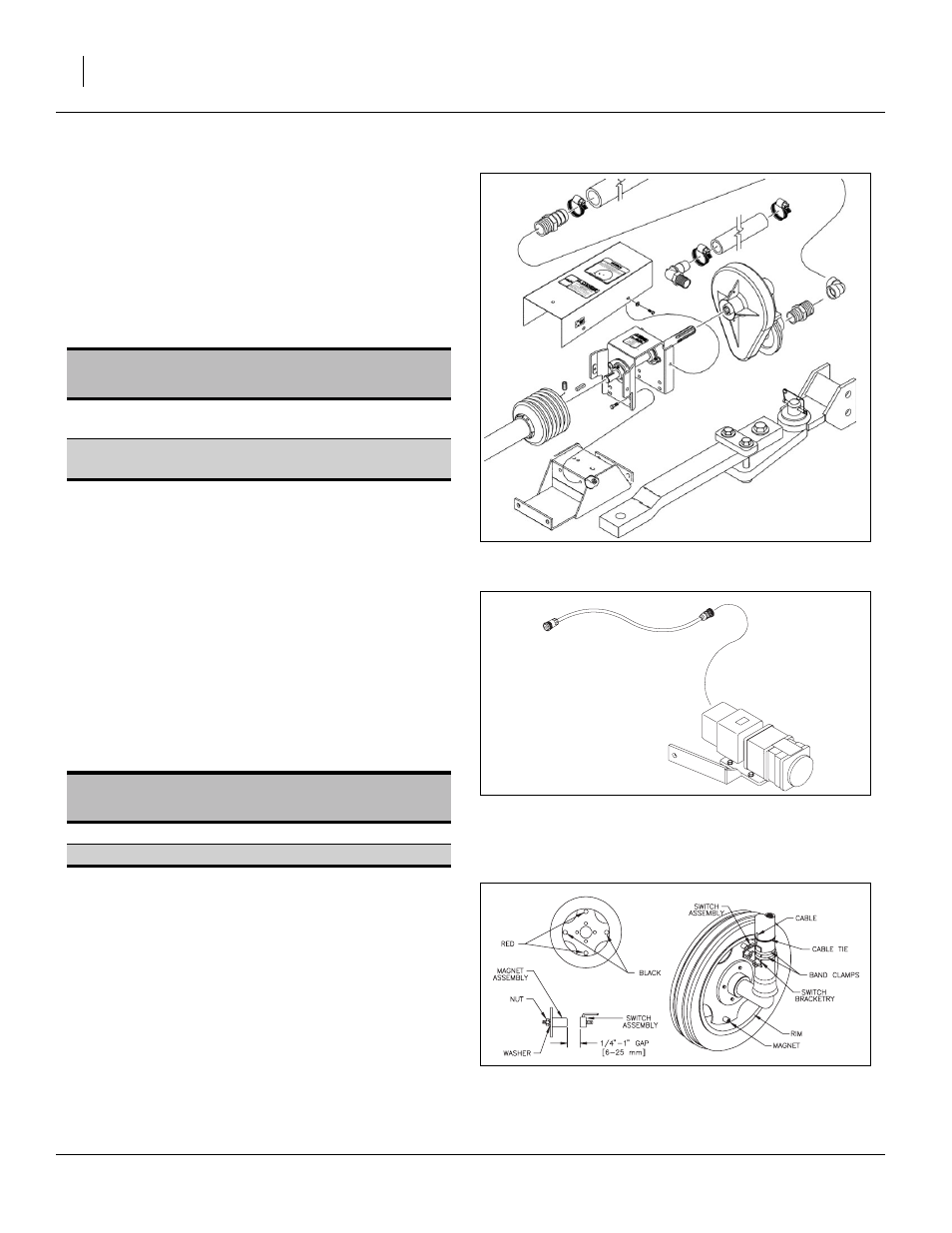

Ace PTO Pumps

Pumps are available for 540 rpm PTO (#33) or 1000 rpm
1

3

8

in PTO (#34).

The pump kit includes required hitch components.

If ordered with a new TSF1060 and TSF1260 (see option
#s above), the pump is pre-installed prior to delivery.

Pump kit weights:

Speed Sensors

The standard TSF1060 and TSF1260 does not include a
speed sensor, which is required by the Auto-Control sys-
tem to regulate material rate based on current speed.
Optional sensors kits detect speed via wheel rotation or
radar ground speed.

If the tractor already has a speed sensor, a “Y” cable is
available to share its signal with the Raven SCS 440 con-
troller. Otherwise, order one of the following:

Your Great Plains dealer can assist you with installation

Radar Speed Sensor

This easy-to-install precision sensor may be mounted on
either the tractor or the sprayer. It is compatible with a
wide variety of agricultural cab controls, and may be
used for implements other than the TSF1060 and
TSF1260 when not spraying.

Raven Wheel Speed Sensor

This economical speed sensor is sprayer-mounted. Con-
sult your dealer for installation.

Description

Option

Part

Numbers

PUMP TS ACE150 540 DRIVE

SHAFT

33

507-083A

PUMP TS ACE 1000 1-3/8 DR

SHFT

34

507-084A

507-083A

152 lbs (69 kg)

507-084A

167 lbs (76 kg)

Description

Option

Part

Numbers

TSF RADAR KIT

43

509-289A

TSF WHEEL SENSOR MNT KIT

42

509-288A

Figure 73

Ace PTO Pump

20358

Figure 74

Radar Speed Sensor

27153

Figure 75

Wheel Speed Sensor

27154
