Great Plains Manufacturing, Inc. Preparation and Setup 19
01/12/2012 500-642M
Hitching with Hydraulic Pump
Refer to Figure 3
A hydraulic pump sprayer has either a single tang or cle-
vis hitch. To change the hitch type, see “Hitches
(Hydraulic Pump Only)” on page 74 for ordering infor-
mation. The clevis hitch may be inverted if necessary to
obtain ideal hitch height.
Refer to Figure 4
1.
Park the sprayer in an open, flat and level area with
the jack in the park position.
2. Back the tractor up to the sprayer, and adjust the
sprayer hitch height with the jack and/or adjust the
tractor hitch height. Back the tractor until the hitches
align.
3. Insert the hitch pin and secure.
4. Skip to “Leveling Sprayer” on page 23.
Refer to Figure 4 and Figure 5
5.
Remove the parking jack and pin it to the storage
stob on the brace tube above the left wheel axle.

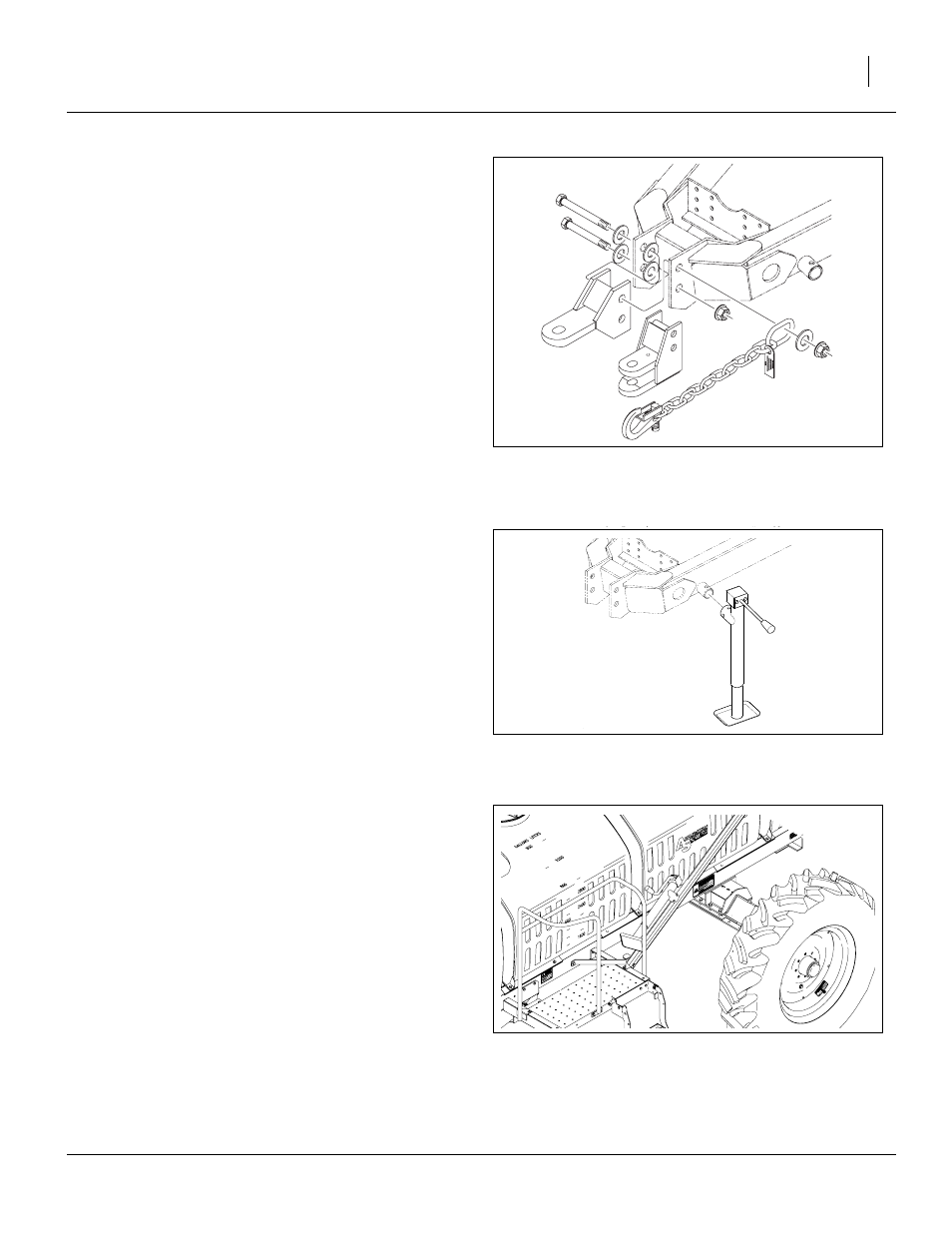

Figure 3
Tang or Clevis Hitch
20234
Figure 4
Jack in Parking Position
13811
Figure 5
Jack in Storage Position
20402
