74

TSF1060 and TSF1260

Great Plains Manufacturing, Inc.

500-642M

01/12/2012

Gauge Protector

This fitting protects the control panel pressure gauge
from corrosive chemicals added to the main tank.

See page 45 for installation location.

Hitches (Hydraulic Pump Only)

Sprayers with hydraulic (not PTO) pumps have a choice
of tang or clevis hitch.

For setup, see “Hitching with Hydraulic Pump” on
page 19.

Open Center Hydraulic Kit

2007+ sprayers require a tractor with closed center
hydraulics. Use this kit to convert the sprayer for use with
an open center tractor.

For installation location, see page 80.

Description

Part Number

GAUGE PROTECTOR ASSY

507-034V

Description

Option

Part

Numbers

Clevis Hitch

62

500-007H

Tang Hitch

63

500-008H

Description

Part Number

FASSE LIVE HYD OPEN CTR KIT

833-427C

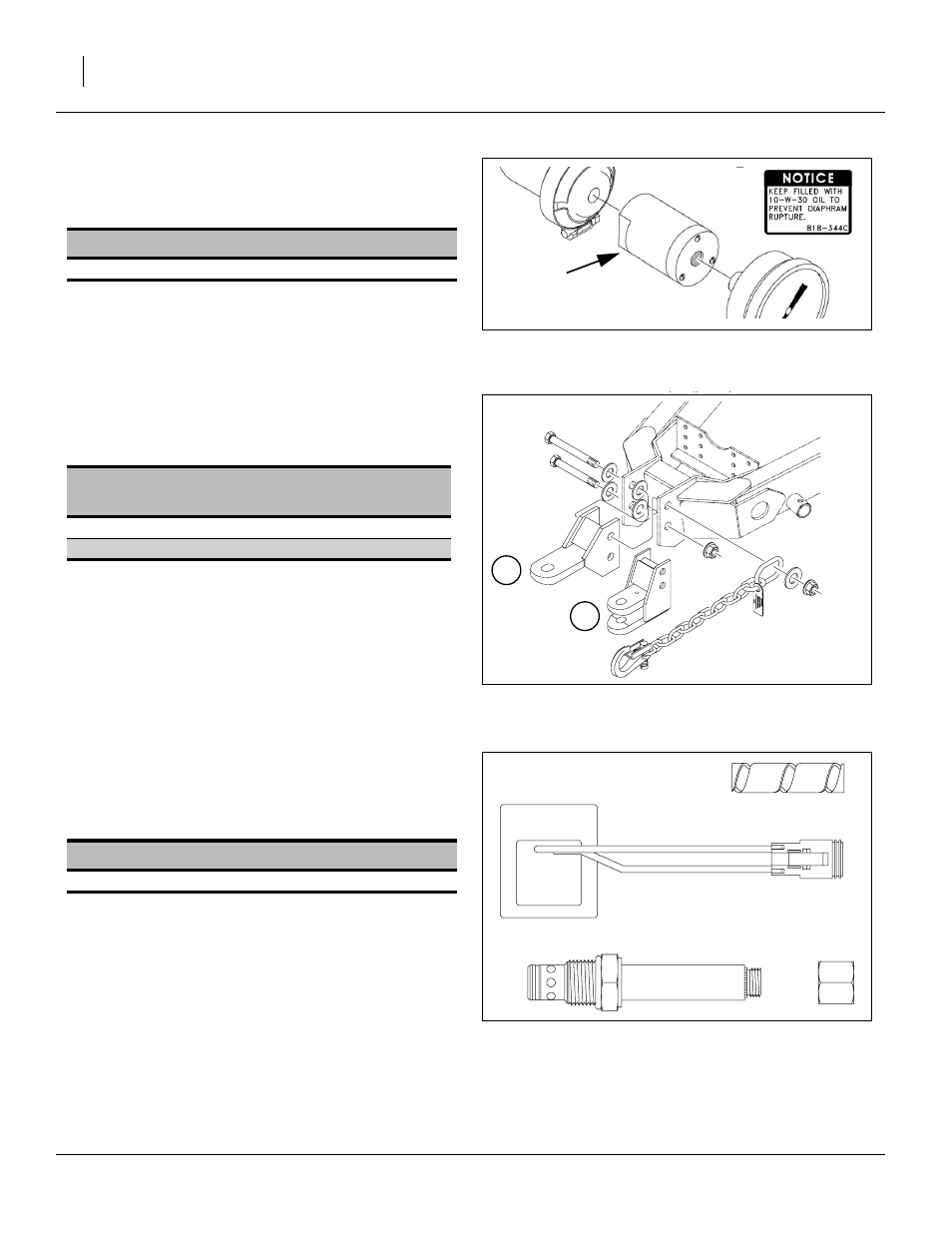

Figure 68

Gauge Protector

27297

507-034V

Figure 69

Tang or Clevis Hitch

20234

63

62

Figure 70

Open Center Kit

27385
