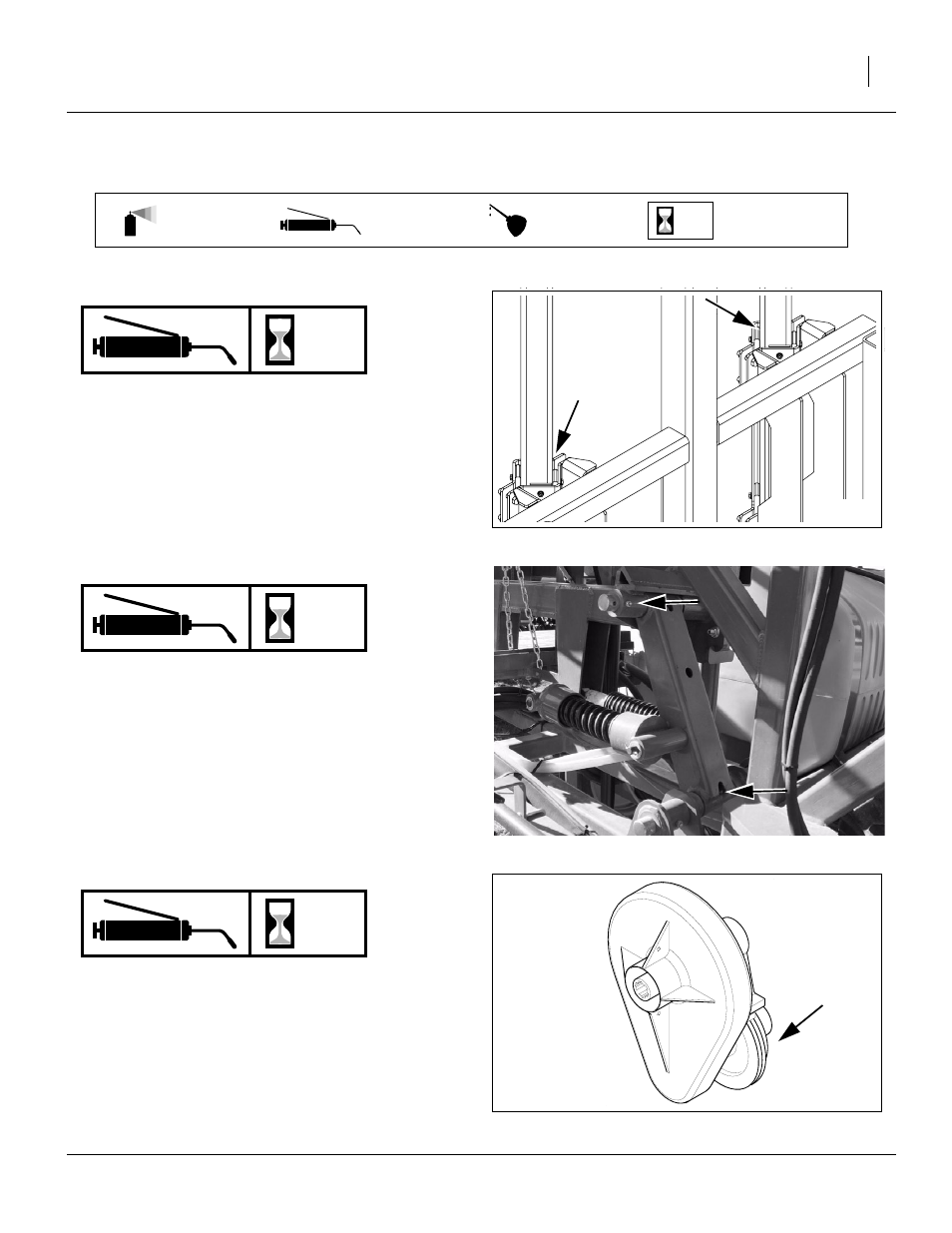

Lubrication

Elevator Slide

pads and exposed vertical tube bearing surfaces

Type of Lubrication: Dry graphite or NLGI grade 2
grease
Quantity: coat surface lightly

Swing Arm Weldment

2 zerks each side; 4 total

Type of Lubrication: Grease
Quantity: Until resistance is felt

Ace Pump: (if applicable)

1 zerk
(located on belt idler arm casting)

Type of Lubrication: Grease
Quantity: 3 pumps

50

Multipurpose
spray lube

Multipurpose

grease lube

Multipurpose
oil lube

Intervals (service hours) at
which lubrication is required

27384

10

20417

10

15979

10
