Dante Controller User Guide

-52-

Channel is receiving audio between -61dbFS and 0dfFS

Channel is clipping

Which devices support channel metering?

Currently, Brooklyn II and PCIe devices support channel metering in Dante Controller. You can check your
device type in the

Device Info

tab.

Connected To: Lists the Tx channel that the receive channel is currently subscribed to.

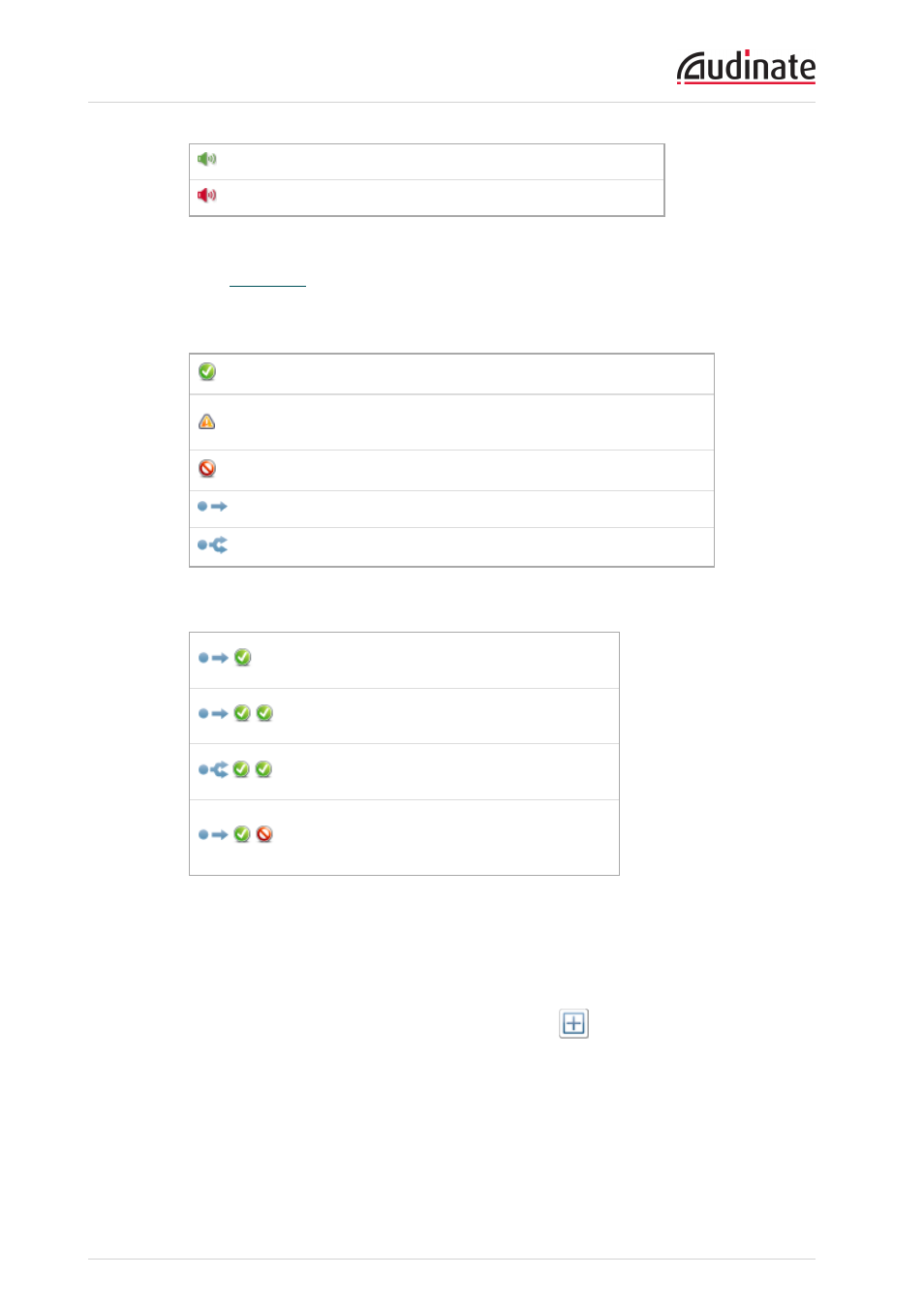

Status: Shows the status of both primary and secondary subscriptions, using the following icons:

Subscription is OK and audio should be flowing

Subscription is unresolved - usually because the transmitting device
has been removed from the network, or is switched off

No subscription, or a subscription error

Subscription is via unicast connection

Subscription is via multicast connection

Subscriptions can show several symbols in the Status column. Common status icon combinations and
their meanings are as follows:

Unicast device successfully subscribed to a
transmitter

Redundant device successfully subscribed on
both primary and secondary via unicast

Redundant device successfully subscribed on
both primary and secondary via multicast

Redundant device successfully subscribed on
primary only via unicast. This is typically seen
when the secondary interface is not connected

Available Channels

The Available Channels pane lists the devices and advertised channels available on the network. Devices
that are greyed out indicate that this receiver cannot subscribe to those channels or devices. This is
typically because of a mismatch in parameters (e.g. sample rate incompatibility etc.), or because a device
cannot route audio to itself.

For devices with many channels, you can click the Channel Groups

button to group available

channels into sets of 16.

Creating Subscriptions

Subscriptions are created by selecting a channel from the Available Channels list in the right-hand pane of
the Receive Tab, then dragging and dropping it onto the appropriate receive channel in the left-hand pane of
the Receive Tab.
