Page 7

Receptacle
Plug

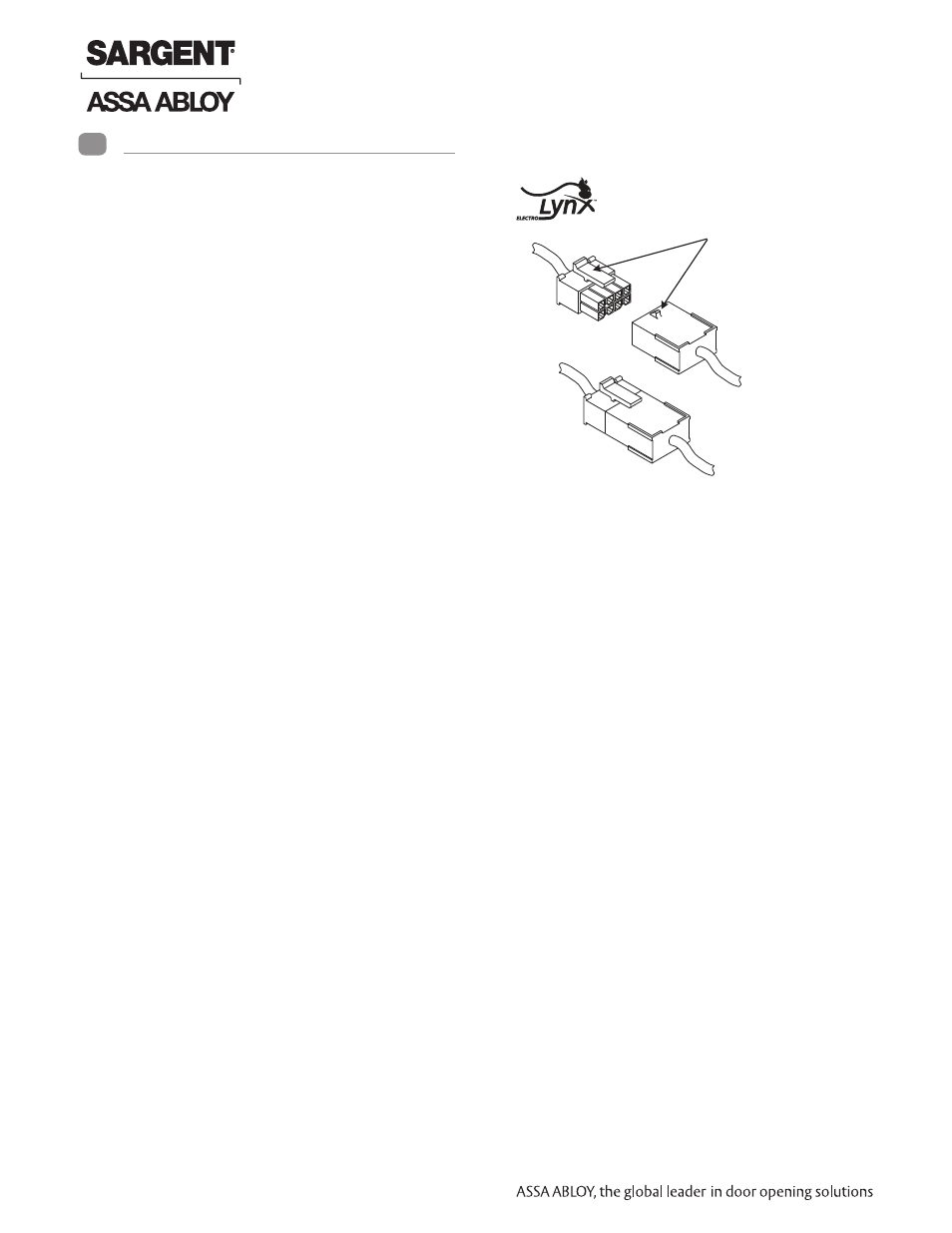

ElectroLynx® Connector System Notes:
The system is designed to be installation friendly with
pluggable connectors from the electric hinge through
the door to the rail. The only wiring required is to the
flying leads on the pigtail harness assembly on the
frame side of the electric hinge.
IMPORTANT:
The plug and receptacle connectors are designed
to mate and lock together as shown in the figure.
Plug the connectors into each other with the locking
mechanism aligned as indicated.
Do NOT force connectors on any other way
Locking mechanism
57- Exit Device - ElectroLynx Wiring Notes (Consult factory for assistance if required)
1. The ElectroLynx connector system is designed to be installation friendly with pluggable connectors from the
electric hinge through the door to the rail. The rail, raceway, electric hinge, and pigtail harness connector
terminations and wire colors all match.
2. For most applications, an 8-pin electric hinge is required.
3. Plug raceway connectors into ElectroLynx hinge connectors. Hard wire to corresponding pigtail harness wires
as required.
4
Installation Instructions (Continued)
Installation Notes:
1. With new applications, a raceway harness with 8 & 4-pin connectors will be pre-installed inside the door by
ASSA ABLOY door manufacturer when specified during the ordering process. Raceway harness kits are also available
for retrofit applications. (For retrofit applications, refer to retrofit instructions)
2. If door does not have a raceway harness with connectors, either consult factory for raceway retrofit kit or cut
connectors off product and hard wire, as required.
3. Wiring to pigtail harness is per facility wiring requirement.
The rail, raceway, electric hinge and pigtail connector ( - +) terminations and wire colors all match.
7 1-800-810-WIRE • www.sargentlock.com • A7743C
