2 General Description
BC-Prefix Option
The BC prefix for 57- indicates that the unit has been programmed to comply with the section of the BOCA code
relating to delayed egress.
BOCA allows for automatic reset of the delayed egress unit. Under BOCA, the unit can automatically reset thirty (30)
seconds after the door has been cycled. If the door is opened any time during the thirty (30) seconds, the timer in the
unit resets and waits another thirty (30) seconds before rearming. This requires a door position switch.
Note: If a door position switch is not used (Blue wire connected to Black wire), the unit will automatically reset in
30 seconds.
There are no user serviceable parts on the 57- PCB module assembly.
Electrical Specifications
The SARGENT 57-Delayed Egress Exit Device is designed to work with an external electromagnetic lock in ar-
eas that require a delayed egress which alarms at the door when any attempt is made to violate the door.
The 57- device can be tied into a fire alarm system.
NOTE: Proper connections and appropriate peripheral hardware are required.
All components must be installed according to prevailing electrical codes.
• Input Voltage: 24VDC regulated/filtered
• Power Consumption: 100 mA Unloaded (typical/standard), 375 mA Loaded (with Optional features)
• Operating Temp: 0°C to 49°C (32°F to 120°F)
• Maximum Electromagnetic Lock load: 275mA. If desired load exceeds this limit, an external relay
module may be used.
Part No. Description
52-4810 Harness Assembly - “E” and “F” size rails
52-4811 Harness Assembly - “J” and “G” size rails
52-4830 PCB Module Replacement Pack - Standard
52-4831 PCB Module Replacement Pack - BOCA (BC prefix)
Consult factory Rail Assembly
Consult factory Chassis Assembly
Consult factory Insert Assembly
Consult factory Chassis Cover

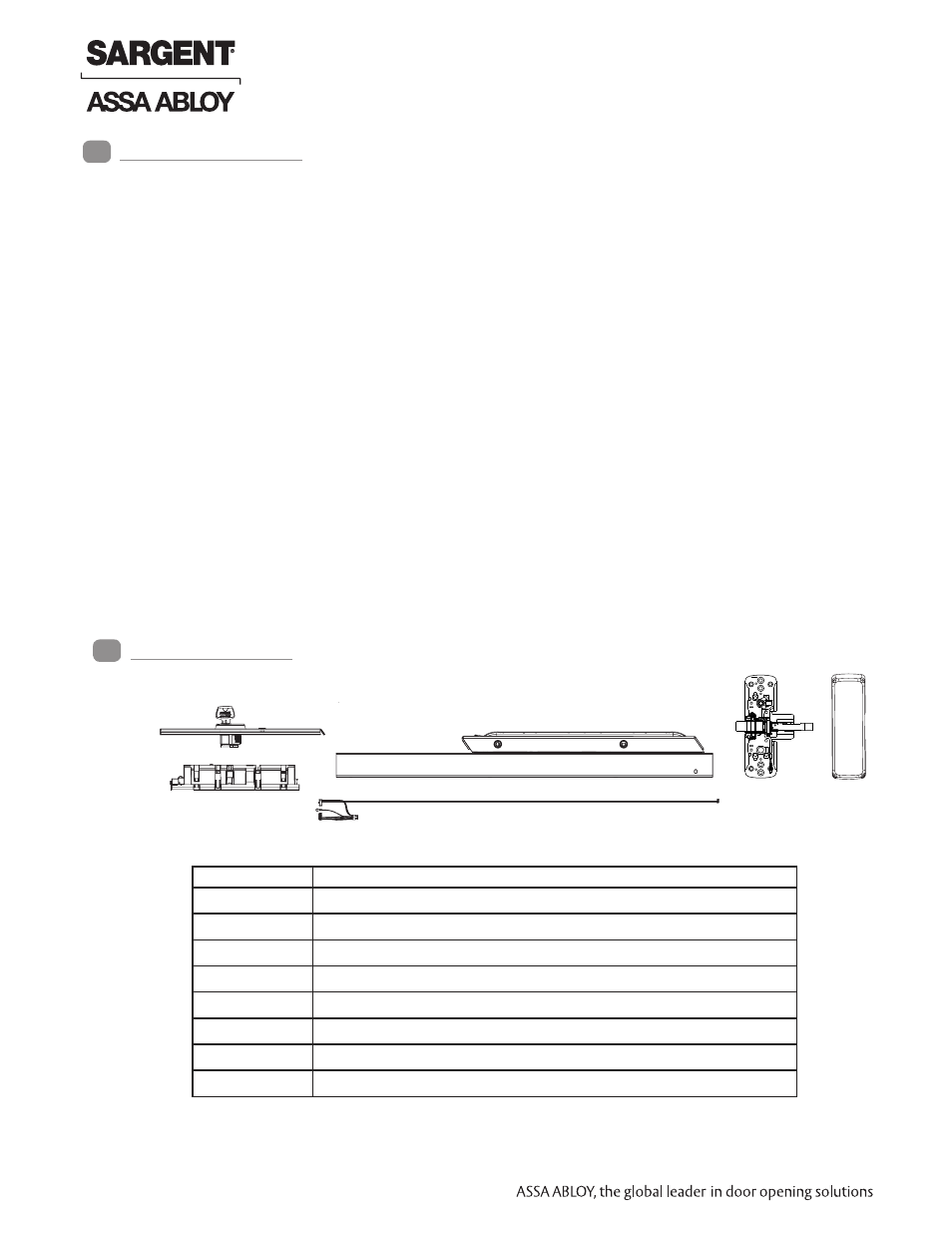

Parts Breakdown 3
Chassis
Cover
Insert
Assembly
Chassis
assembly
Harness
Assembly
PCB Module
Assembly
Rail Assembly
4 1-800-810-WIRE • www.sargentlock.com • A7743C
Copyright © 2013, Sargen
t Manufacturing Company
, an A
SS
A AB
LO
Y G
roup company
. All right
s reser
ved
.
Reproductions in whole or in par
t without express writ
ten permission of Sargen
t Manufacturing Company is prohibited
.
04/15/13
57- Prefix 80 Series Exit Device
