Page 19

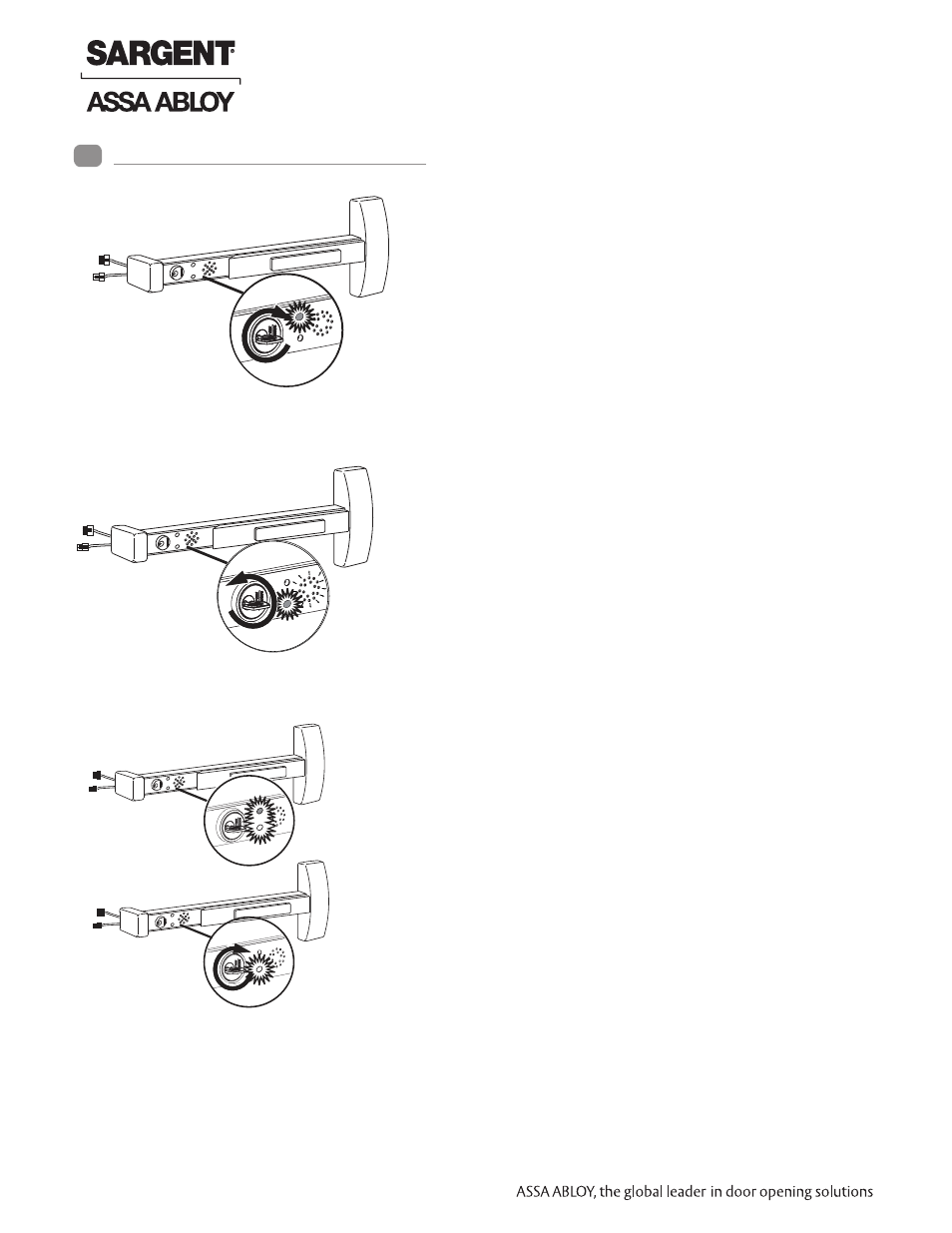

Maintained Egress Mode
Resetting the Unit from Maintained Egress
Mode to Armed Mode
1. Rotate key counter-clockwise and return key to center position
(remove key)
2. Maintained Red (Default) or Green LED de-energizes and Armed
Green (default) or Red LED will illuminate.
See Dip Switch Settings section 5.
3. The rail assembly re-arms itself into the Delayed Egress Mode.
External electromagnetic lock is energized. Door is locked.
1. Rotate key fully clockwise (one click) and return key to
center position (remove key)
2. Red (default) or Green LED will illuminate. See Dip Switch
Settings section 5 for LED color settings.
3. Rail assembly is disarmed allowing the device to operate as
a standard exit device permitting free egress
1. The rail assembly is armed - Green (default) or Red LED is illuminated,
preventing immediate egress. See Dip Switch Settings section 5.
2. When the push rail is depressed for more than (1) second (nuisance
delay), the alarm will sound and the Red and Green LEDs alternately
flash. If there is no nuisance delay, alarm will sound immediately when
push rail is depressed and the Red and Green LEDs will again flash
alternately.
3. The alarm will continue to sound until the rail assembly is reset by
inserting the key into the cylinder located on the mounting insert and
rotating the key clockwise (one click) to return the unit to the armed
mode.
NOTE: A 57-BC-80 Series device automatically resets 30 seconds
after door has been closed. (Requires door position switch)
4. During first 15 seconds after alarm begins, the rail assembly remains
armed and external electromagnet is locked, preventing immediate
egress. After 15 seconds, the rail releases the external electromagnet,
allowing egress.
NOTE: The delayed egress time can be factory-set to 30 seconds.
Local authority having jurisdiction (LHJ) prevails.
Delay times may be regulated by local codes ordinances
and regulations.
While in the Delayed Egress Mode
Operating Instructions (Continued)
10
19 1-800-810-WIRE • www.sargentlock.com • A7743C
