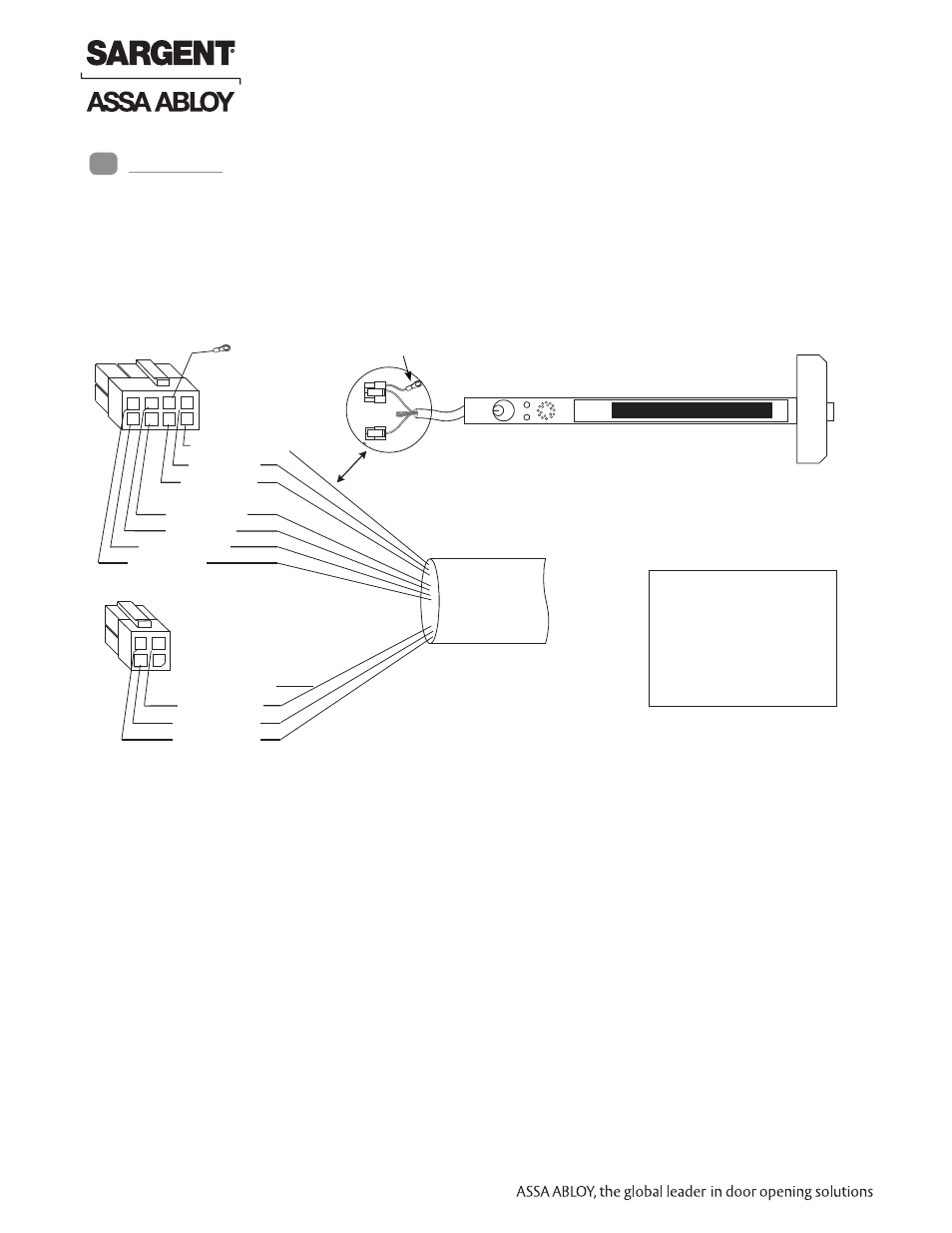

Prefix 80 series exit device, Wiring 7 – SARGENT 57 - Delayed Egress User Manual
Page 11

Ground ring terminal
4, Green (EG)
8
7
6
5
4
3
2
1
1, Black (-Return)
2, Red (+24)
3, White RR
5, Orange (EI)
6, Blue (DS)
7, Brown (Mag-)
8, Red (Mag+)
4
3
2
1
2, Blue (C)
3, Brown (NO)
4, Yellow (NC)
Electroguard (57-, 19-57-)
80 Series Rail
A. IMPORTANT
Caution: Disconnect all input power before beginning installation to prevent electrical
shock and equipment damage
1. Installer must be a trained, experienced service person
2. All wiring must comply with applicable local electrical codes, ordinances and regulations
3. Field cut rail assemblies are not allowed. Exit device must be ordered for specific door width.
Legend
EI
= External Inhibit
DS
= Door Status Switch
EG
= Earth Ground
NO = Normally Open
NC = Normally Closed
RR = Remote Reset
C = Common
B. Installation Notes:
1. With new applications, a raceway harness with 8 & 4-pin connectors will be pre-installed inside the door by
ASSA ABLOY door manufacturer when specified during the ordering process. Raceway harness kits are also available
for retrofit applications. (For retrofit applications, refer to retrofit instructions)
2. If door does not have a raceway harness with connectors, either consult factory for raceway retrofit kit or cut
connectors off product and hard wire, as required.
3. Wiring to pigtail harness is per facility wiring requirement.
The rail, raceway, electric hinge and pigtail connector ( - +) terminations and wire colors all match.
4.
*
55- only (option) Switch contact rating: 2A @ 30VDC
5.
Tape or cap off ends of unused pigtail wires (not shown) to ensure that they do not short.
Note: 55- option only*
57- Wiring
7
11 1-800-810-WIRE • www.sargentlock.com • A7743C
Copyright © 2013, Sargen
t Manufacturing Company
, an A
SS
A AB
LO
Y G
roup company
. All right
s reser
ved
.
Reproductions in whole or in par
t without express writ
ten permission of Sargen
t Manufacturing Company is prohibited
.
04/15/13
57- Prefix 80 Series Exit Device
