Page 22

FUNCTION
JUMPER
57-
J5-
1 & J5-2
59-STD
J5-2 & J5-3
J5
1 2 3
1. When the rail is armed (in Delayed Egress Mode) and the door is closed and latched, the Green (default) or
Red LED and the Green Diagnostic LED should be ON only. All other diagnostic LEDs should be OFF.
2. With the rail armed, depressing the rail push bar slightly will turn the Red Diagnostic LED ON. The rail
should go into alarm immediately (no nuisance delay) or after being pressed in for 1 second (1-second
nuisance delay). The rail will be in the irreversible alarm mode – Insert Green and Red LED flash and the rail
horn sounds. After a standard delay of 15 seconds (or 30-second optional delay), the external magnet de-
energizes and passage is allowed. The rail horn will continue to sound until the rail is reset either with a key
or remotely.
3. When a Door Status switch is used and the door is opened the Orange Diagnostic LED will turn ON, which
indicates that the door is not secure. When NOT using a Door Status switch, the Blue wire should be con-
nected to Black (-Return). In this case, the LED will always be OFF.
**
Black ( - )
57-80 Series
Blue
DSS *
MINIMUM REQUIREMENTS FOR ARMING RAIL (DELAYED EGRESS MODE)
* To Arm 57- Rail– The
Blue Door Status Switch (DSS) wire must be connected
directly to the Black wire (-Return) or the contacts must be closed as shown.
The White wire (formerly Green) must be connected to the Black wire (-Return)
as shown.
-Return
+24VDC
* Only these (3) wires are needed to arm rail along with the correct
LBM switch and Push Rail Switch position as shown before
**
Fire Alarm Contact (if required)
Red ( + )
Default factory setting
for 57- shown
NOTES
With Rim, Mortise and Vertical Rod exit devices:

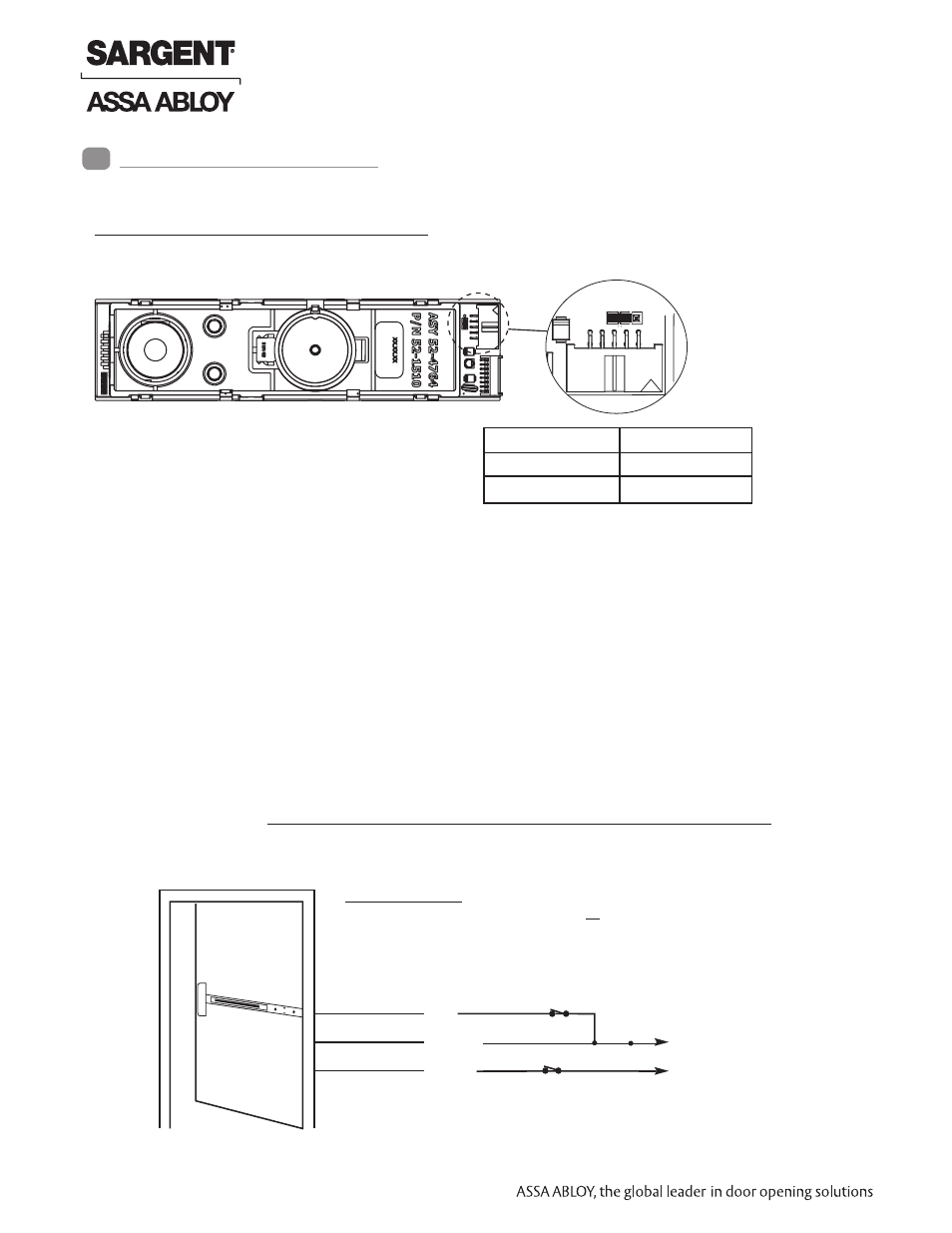

When jumper is missing or in wrong position, the Yellow Diagnostic LED turns ON. To locate (J5) jumper,
remove Insert Assembly amd Insert Assembly Plate:
Troubleshooting (Continued)
11
22 1-800-810-WIRE • www.sargentlock.com • A7743C
Copyright © 2013, Sargen
t Manufacturing Company
, an A
SS
A AB
LO
Y G
roup company
. All right
s reser
ved
.
Reproductions in whole or in par
t without express writ
ten permission of Sargen
t Manufacturing Company is prohibited
.
04/15/13
57- Prefix 80 Series Exit Device
