Profile Series v.G1 Mortise Lock
Copyright © 2006, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

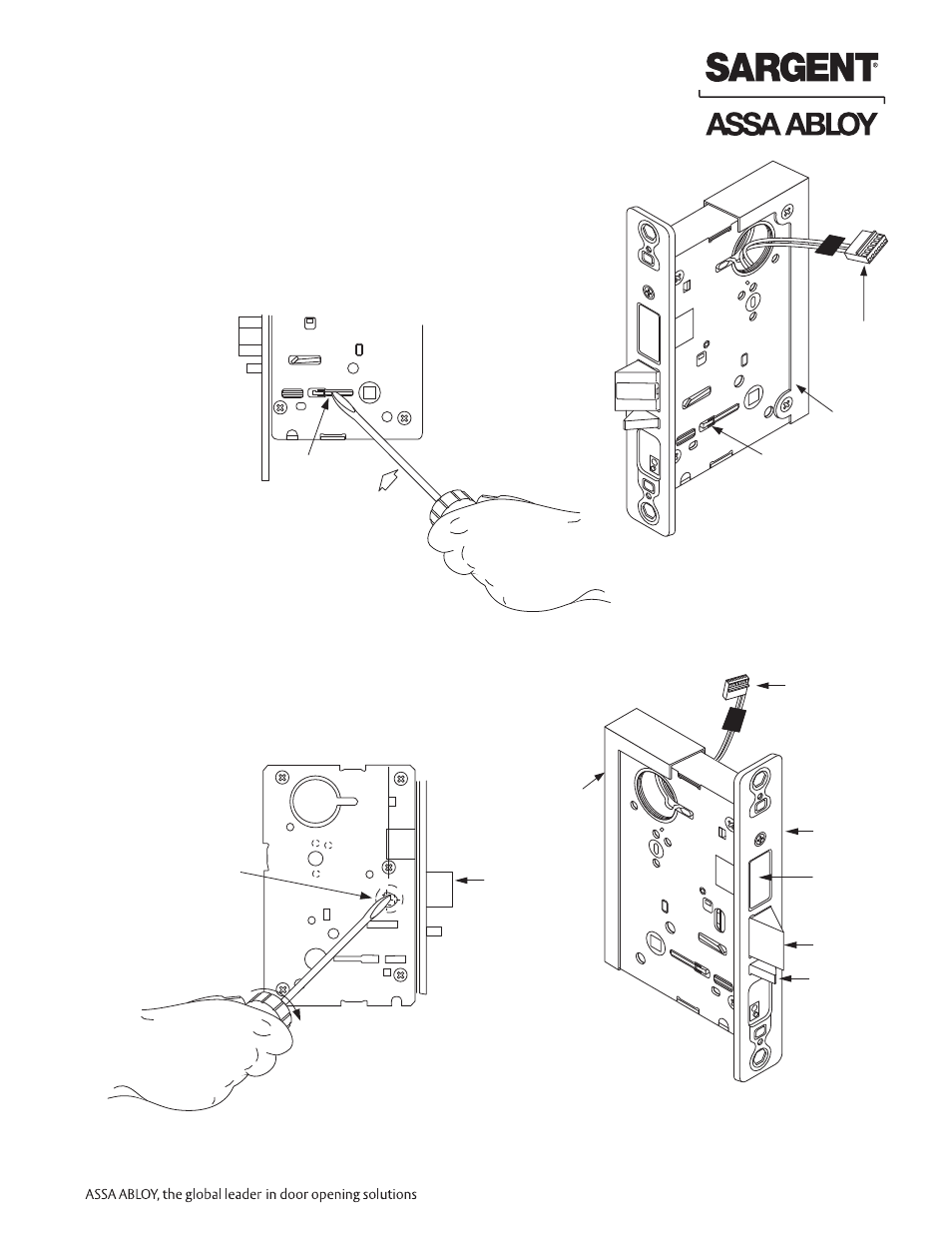

Step #2 – How to Reverse Lock Hand
RED color
locking piece
indicates locked side
End Cap
Connector
If it is necessary to change hand of latch:
1. Insert blade of common screwdriver into triangular slot behind latch.
2. Rotate screw driver and push latch out until back of bolt clears lockbody front.
3. Rotate latch 180° until the latch drops back into the lockbody.
If it is necessary to change hand of locking piece:
1. Turn lockbody to side NOT marked with RED locking piece.
2. Insert blade of common screwdriver into locking piece slot.
3. Push locking piece toward front of lockbody and rotate until RED shows.
4. RED indicates locked (outside) side.
5. Wire harness MUST exit thru non-cylinder side.
Right Hand
Shown
Locking
guide slot
Push in
End
Cap
Latchbolt
Outside of
door
Front
Deadbolt
Dead Latch
Connector
and wires
Triangular
slot
Rotate
Latchbolt
