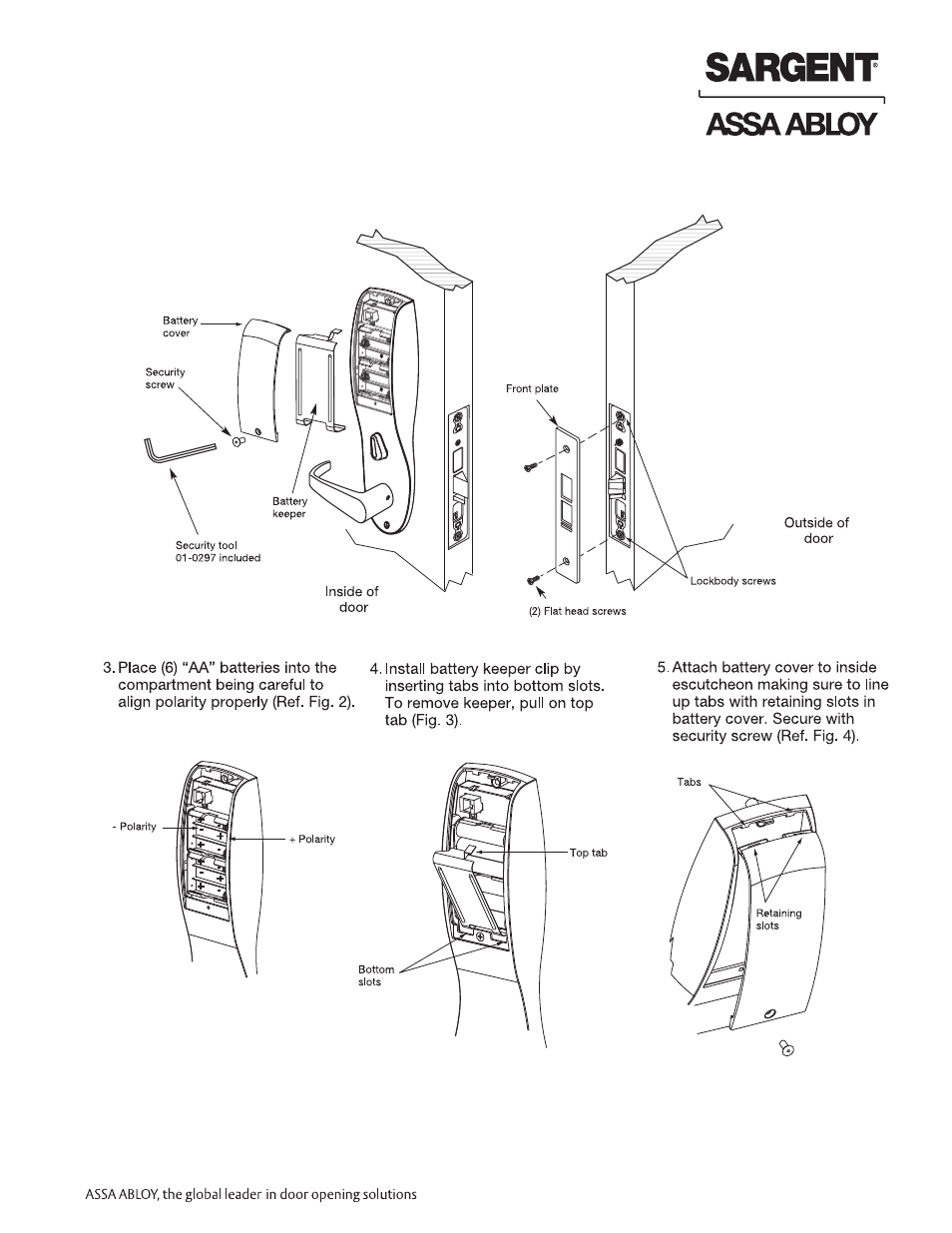

Step #9 – Battery Installation/Application of Front Plate
1. Tighten lockbody screws (Ref. Fig. 1)
2. Attach front plate with (2) flat head screws
Fig. 1
Fig. 3
Fig. 2
Fig. 4
