Page 6: Step #1 – door preparation
4
800-810-WIRE (9473) • www.sargentlock.com • A7756A
Profile Series v.G1 Mortise Lock
Copyright © 2006, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

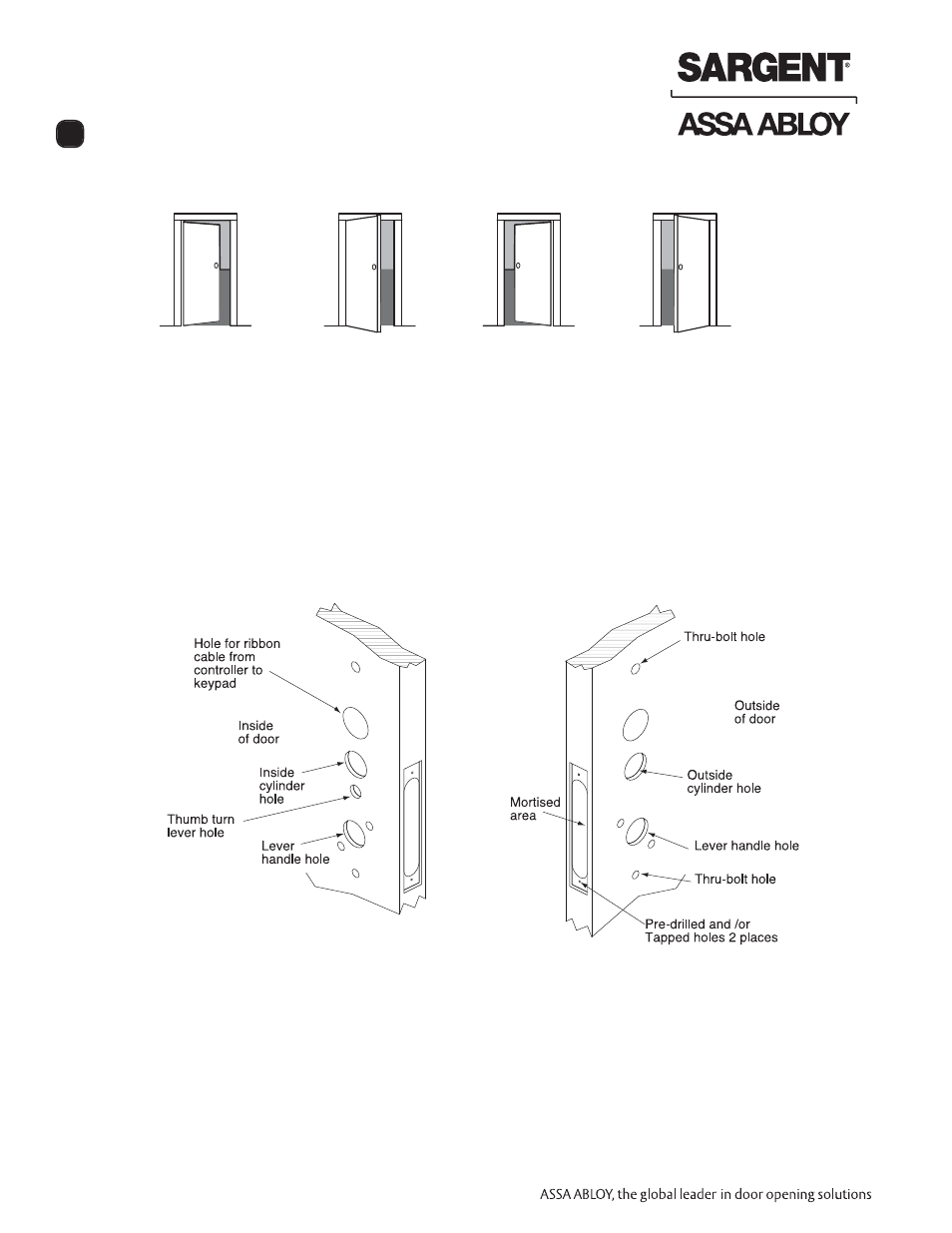

Left Hand
Hinges Left.
Open inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward.
“RHRB”
Installation Instructions
6
Verify Hand and Bevel of Door
Before Starting
Prep door according to Instruction Sheet A7454 and appropriate template:
Wood door - A7457
Metal door - 4533 for 8276/8278
Metal door - 4534 for 8277/8279
Step #1 – Door Preparation
