Installation Instructions

6

1. Verify Hand and Bevel of Door

2. Door Preparation

Prepare door according to appropriate template
(see website www.sargentlock.com):
• For metal door template, see 4531 and 4532

• For wood door template, see A7456 and A6719D

• Prior to installation, all holes must be free of burrs, debris

and sharp edges

• If doors are not properly reinforced per ANSI115.2,

commercially available reinforcements
should be installed

Stand on outside/locked side of the door when determining the door hand

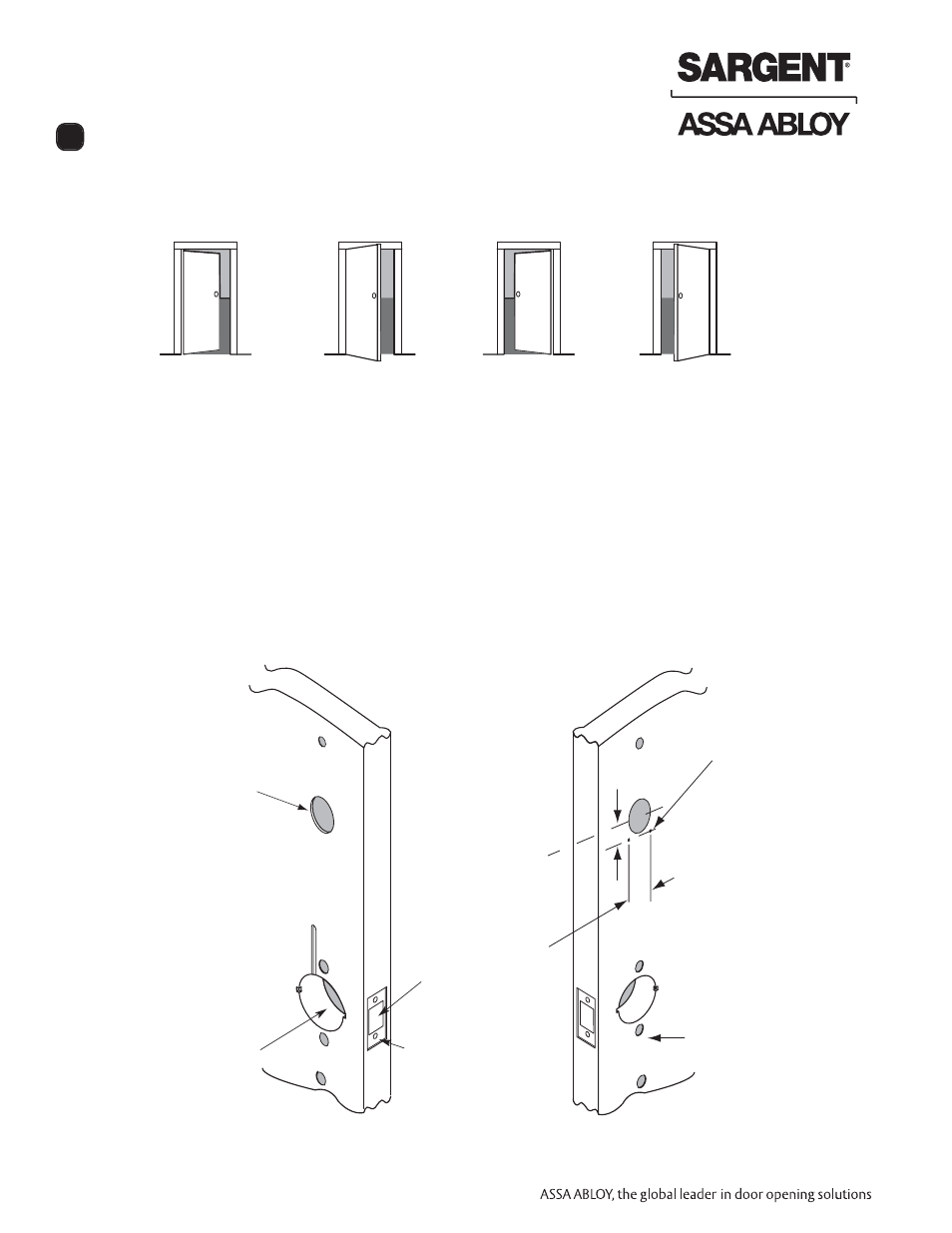

Wood Door Preparation

1-1/2"

(2) 1/8" Dia. holes x 1/4" Deep
required

7/8"

Through-bolt
hole (2)

CL of

1-1/2" Dia.

Lockbody
hole

Latchbolt
door prep

Pre-drill
and/or tap
holes (2)

Inside
of door

Outside
of door

Hole for ribbon
cable from keypad
to controller
