Profile Series v.G1 Cylindrical Lock
Copyright © 2004, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
Security
screw
Security tool
01-0297 included
Inside of
door
Battery
cover
Battery
keeper
4. Install battery keeper clip by
inserting tabs into top slots.
Push bottom in and snap into
place. Then tighten screw (Fig. 3).
5. Attach battery cover to inside
escutcheon making sure to line
up tabs with retaining slots in
battery cover. Secure with
security screw (Ref. Fig. 4).
--
+
-
+
-
+
-
+
+
-
+
-
3. Place (6) “AA” batteries into the
compartment being careful to
align polarity properly
(Ref. Fig. 2).
- Polarity
+ Polarity
Top tab
Tabs
Retaining
slots

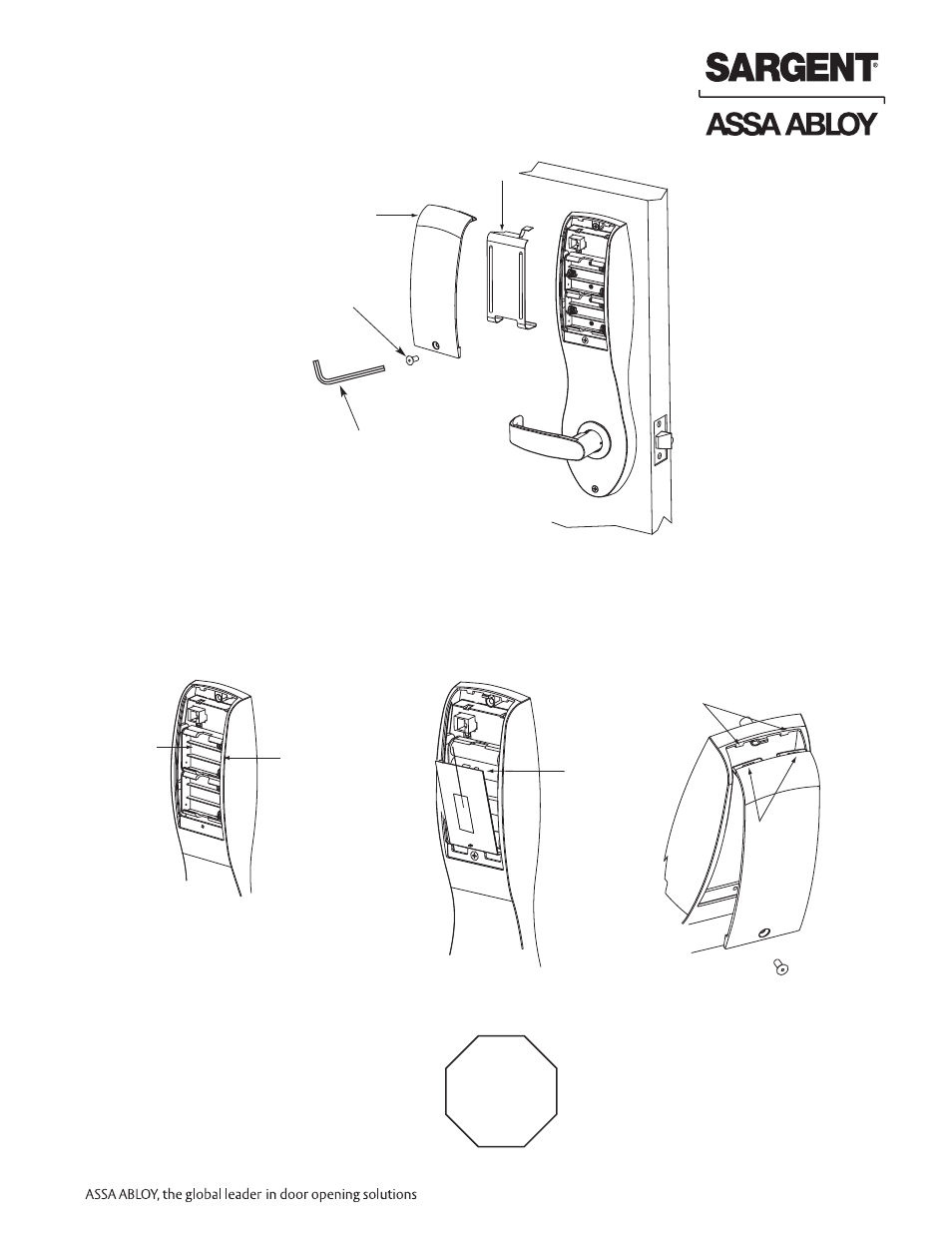

11. Battery Installation
Fig. 1
Fig. 3
Fig. 2
Fig. 4
2-FRONT
Test
for proper
operation
before
closing
door
For RF Technology
version, see Section
8 to install Battery
Keeper
