2 – To Change Hand of Lock Body

A. Retaining Ring

1. Peel back the sticker that covers the retaining ring and remove the retaining ring.
2. Orient the plastic retaining ring so that the word

BOTTOM

is located at the bottom of the cylinder hole (Fig. 2A).

3. Route the wires from the top of the cylinder hole into the slot on the top of the plastic retaining ring, NOT th-

rough the retaining ring (Fig. 2A) and insert the retaining ring into the

non-cylinder side of the cylinder hole.

4. The cable and connector must be coiled inside retaining ring

before inserting mortise into door prep pocket

(Fig. 2B). Make sure the plastic retaining ring is seated correctly.

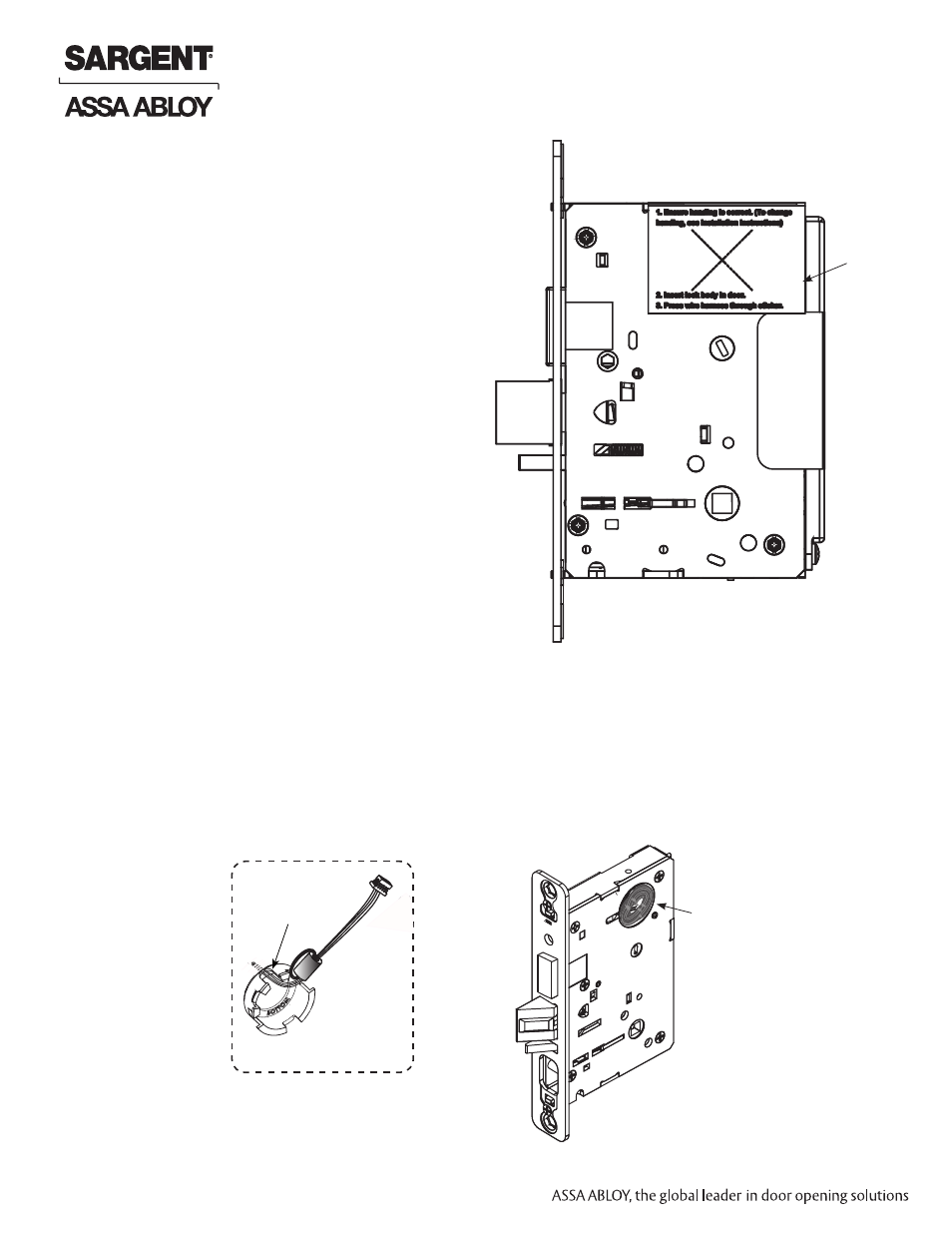

Fig. 2A

Slot

Plastic
Retaining Ring

Inside of Door

(non-cylinder side)

Fig. 2B

Harness must be coiled

inside Plastic Retaining Ring

NOTE: Lock body is shipped with a removable perforated

sticker covering the retaining ring on the

non-cylinder

side (inside of door) of the lock body.
Cables and connectors are coiled inside the retaining ring.
1.

If the handing of the lock body does not need to be

changed, skip 2 and proceed to 3.

Perforated

Sticker

C. Prepare Lock Body

The lock body sticker states the following:
1. Ensure the handing is correct.

(To change handing, see Installation Instructions)
2. Insert lock body in door.
3. Press wire harness through sticker.

C. Reverse Latch Hand

Beveled surface of latchbolt must face strike (Fig. 2D).

The deadlatch is self adjusting.
To change the hand of the latchbolt:

1. Insert the blade of a slotted screwdriver (>1/4”)

into the spade shape slot behind latch.

2. Rotate the screwdriver 90° to push latchbolt out

until back of bolt clears lock case front.

3. Rotate latchbolt 180° until the latchbolt

drops back into the lock body.

Note: Latch cannot be unscrewed.

B. Reverse Lock Hand

Red surface of locking piece must face the outside/locked side of door. To rotate locking piece (Fig. 2C):

1. Position lock body with red surface of locking piece visible.
2. Insert blade type screwdriver into locking piece slot to rotate locking piece toward back of lock body.
3. Rotate the locking piece 180° until RED surface is on opposite side.

Note: Red indicates locked side (outside). Wire harness MUST exit through the non-cylinder side

(inside) of the lock body (Fig. 2D).
