Mortise
pocket
Turn lever hole
Through-bolt
holes
Controller
cutout
Cylinder
hole
Lever
handle
holes
Outside of door Inside of door
Through-bolt
holes
Backplate
mount holes
Lever handle holes
Controller cutout
Installation Instructions 6

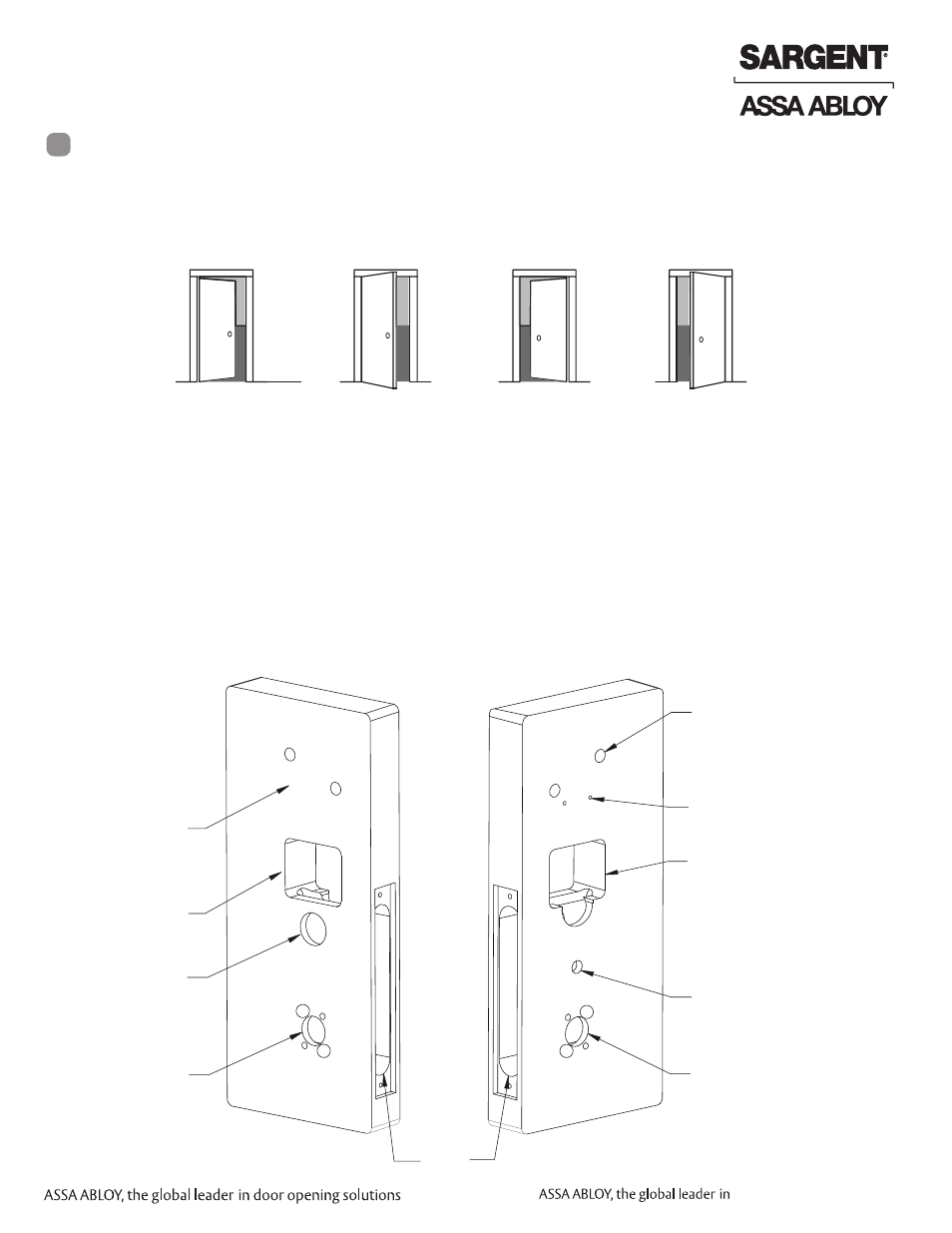

A. Verify Hand and Bevel of Door
Stand on outside/locked side of door when determining the door hand.
B. Door Preparation
LH
Left Hand
Hinges Left
Open Inward
LHRB
Left Hand
Reverse Bevel
Hinges Left
Open Outward
RH
Right Hand
Hinges Right
Open Inward
RHRB
Right Hand
Reverse Bevel
Hinges Right
Open Outward
Fig. 1A
Prior to installation, all holes must be free of burrs, debris and sharp edges.
If doors are not properly reinforced per ANSI 115.2, commercially available reinforcements should be installed.
Prepare door according to appropriate template:
• Field template A7949 (or wood doors).
• Manufacturer’s template 4629 (for metal doors).
1 - Door Preparation
10/31/12
A7807C 6
Copyright © 2012, Sargent Manufacturing Company
, an ASSA ABLOY Group company
. All rights reser
ved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 PG Mortise Lock
