Page 14
10/31/12
A7807C 14
Copyright © 2012, Sargent Manufacturing Company
, an ASSA ABLOY Group company
. All rights reser
ved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
Passport 1000 PG Mortise Lock
*NOTE: The following steps in this section are only performed one time. Once Bluetooth pairing is complete,
these steps do not need to be repeated to program locks (Section 8 ”Lockset Programming”).

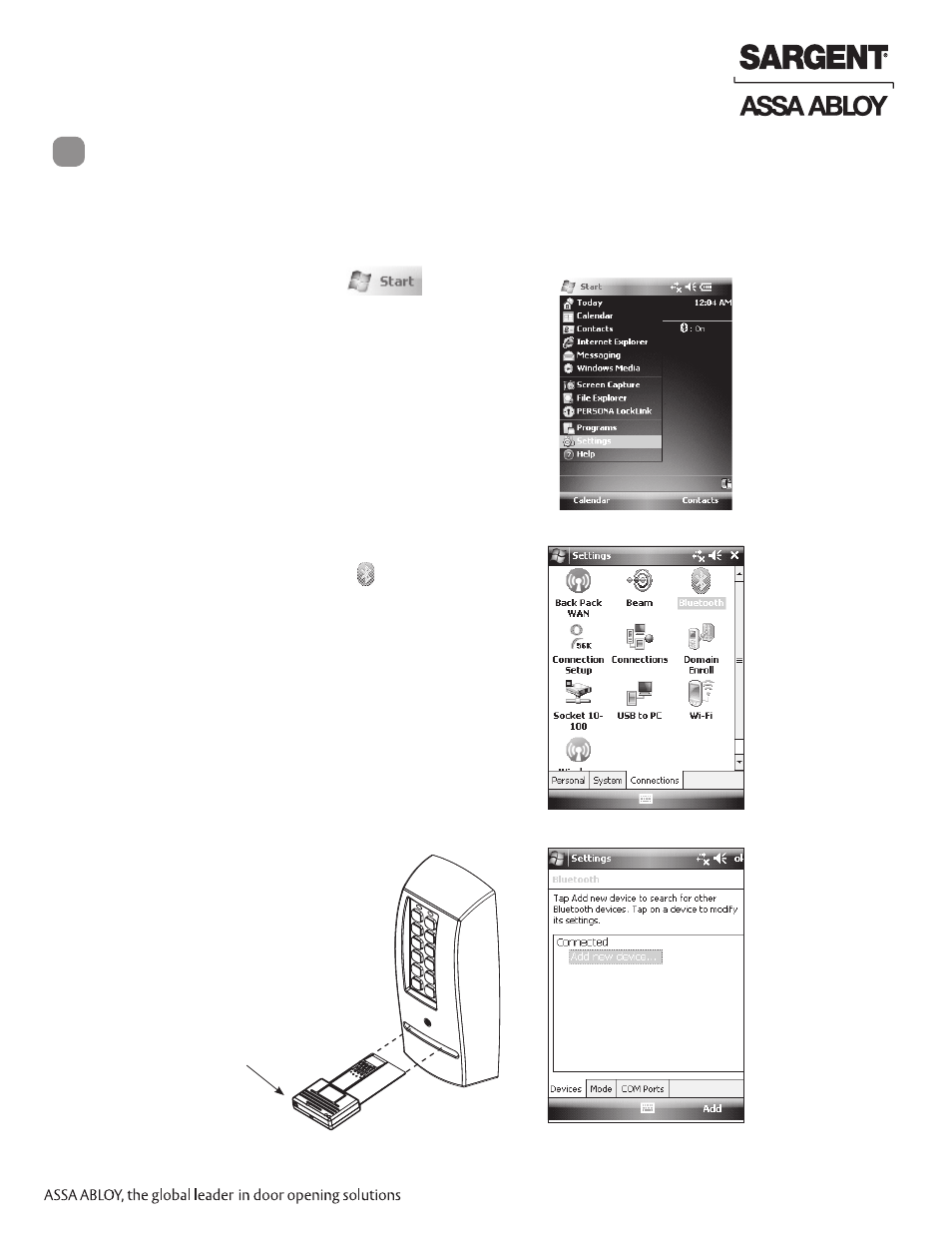

1.To begin, highlight (by tapping) the button and
select the ‘Settings’ menu.
2. Next, tap the ‘Connections’ tab at the bottom of the
screen and highlight the Bluetooth icon from the
‘Settings’ menu.
3. Insert the Contact Card into a lock
(provides power to Contact Card)
and then select "Add New Device..."
Setting up the LockLink™ and Contact Card for First Use*
Pairing the Pocket PC with the Contact Card
Contact Card
7
