KP Series
Keypad Mortise Lock
7
Operational Check
• Place key into cylinder and rotate key.
• The key will retract the latchbolt.
• If the deadbolt is thrown, the key will retract both the deadbolt and the latchbolt.
• Inside handle lever retracts latchbolt and (if provided).
• Enter 1234
* to unlock outside lever handle and retract latchbolt and deadbolt (if provided).
N
O
P
Q
R
S
T
U
V
M
G
@

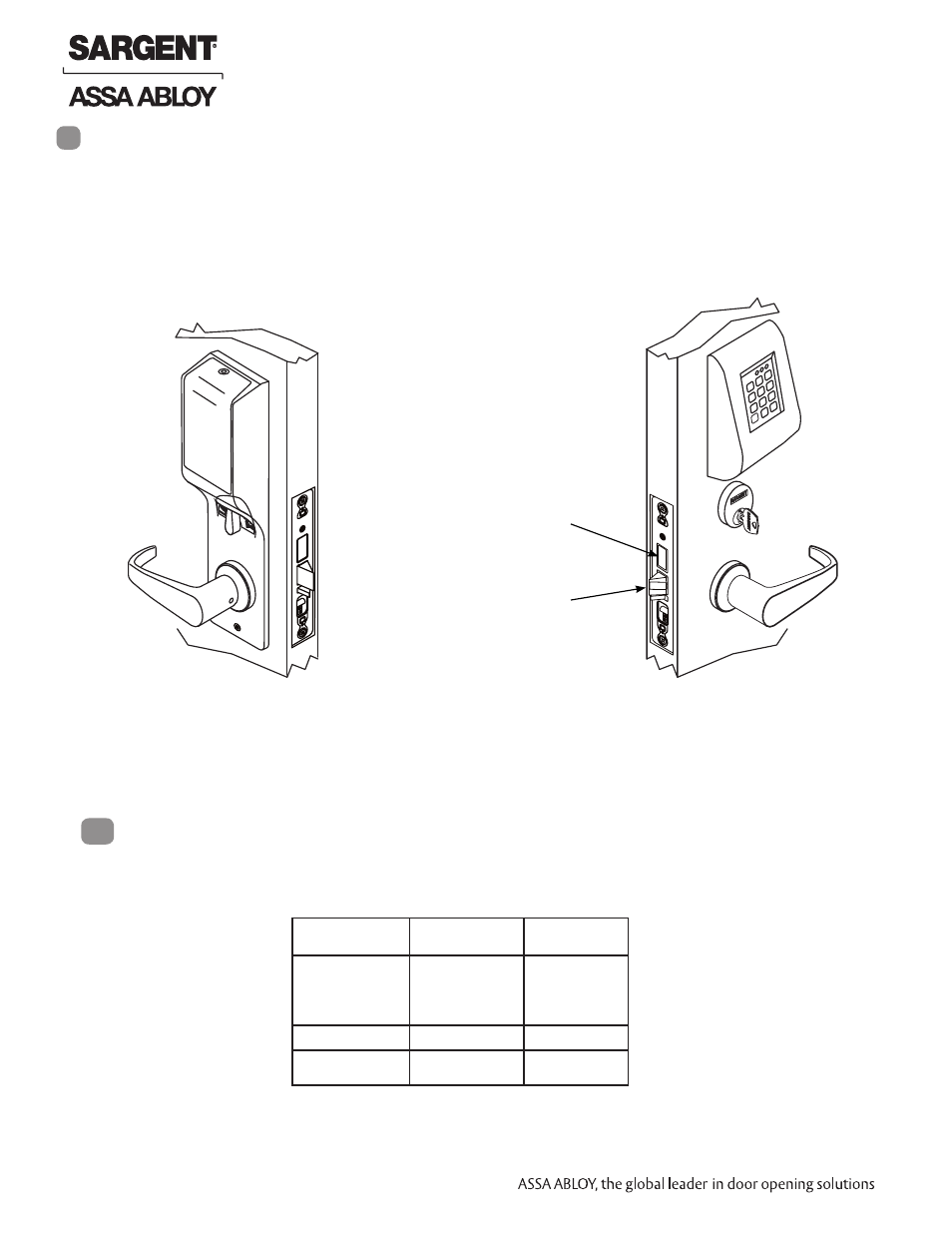

Latchbolt
Deadbolt
(KP8276/KP8278)
Outside of Door
Inside of Door
• Key should rotate freely. There should be no friction against lock case, wire harness or any
other obstructions.
• Refer to Step 7 if harness friction exists.
• Rotate cylinder further into lock case to eliminate lockbody obstruction.
Programming Instructions
The KP Keypad Lock can support 100 users. Each user is assigned a User Number in addition to
the code used for entry.
Example:
USER TYPE
USER NUMBER
USER CODE
(2-6 DIGITS)
Master
Emergency
Supervisor
01
02
03
1 2 3 4
2 2 2 2 2
3 0 3 0 3 0
Standard
04-97
2 6 5
Special Factory
10 Sec. Time Preset
98
99
1 3 6 8
8
