OPERATION 4-2 Manual No. 0-5132
ULTRA-CUT 100

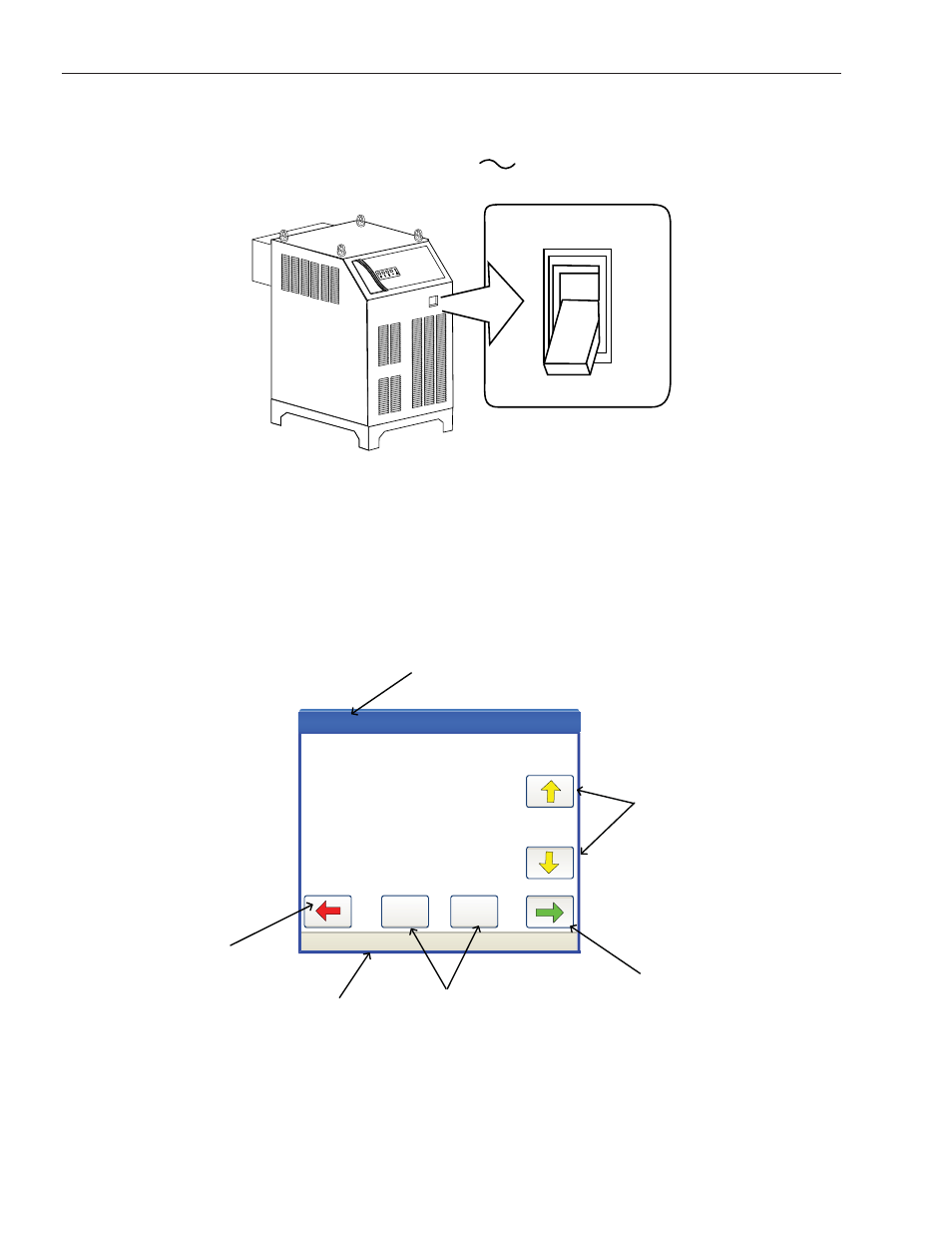

4.02 Start-Up Sequence
1. Connect system to primary input power.
2. Turn ON/OFF switch to ON (up) position. AC Indicator turns ON after about 5 seconds.
POWER
ON
OFF O
I
OFF
O
Art # A-04812
3. Check the AC indicator. If the inverter modules are correctly configured for the input voltage and the switch is
ON, then voltage has been applied to the inverter modules (input contactors are ON). If the indicator does not
light after a few seconds disconnect power and check that each inverter is correctly configured for the input
voltage and all 3 phases are present. Check Status Indicator for any codes that can help. Once it is determined
that input is OK, it is necessary to select and load a process.
4.03 TSC-3000 Navigation Functions
SAMPLE SAMPLE
System Status: IDLE
- +
DISPLAYS SYSTEM STATUS IN ALL SCREENS
BACK BUTTON :
REVERSES TO THE PREVIOUS PAGE
INCREMENTS / DECREMENTS THE
SELECTED VALUE
OK / NEXT BUTTON :
ACCEPTS ENTRIES AND MOVES TO THE
NEXT PAGE
PAGE HEADER
SELECTION NAVIGATION :
MOVES CURSOR / SELECTION UP
AND DOWN ON THE PAGE OR
SCROLLS TEXT IN DIALOG BOX
WINDOW
Art # A-09158
