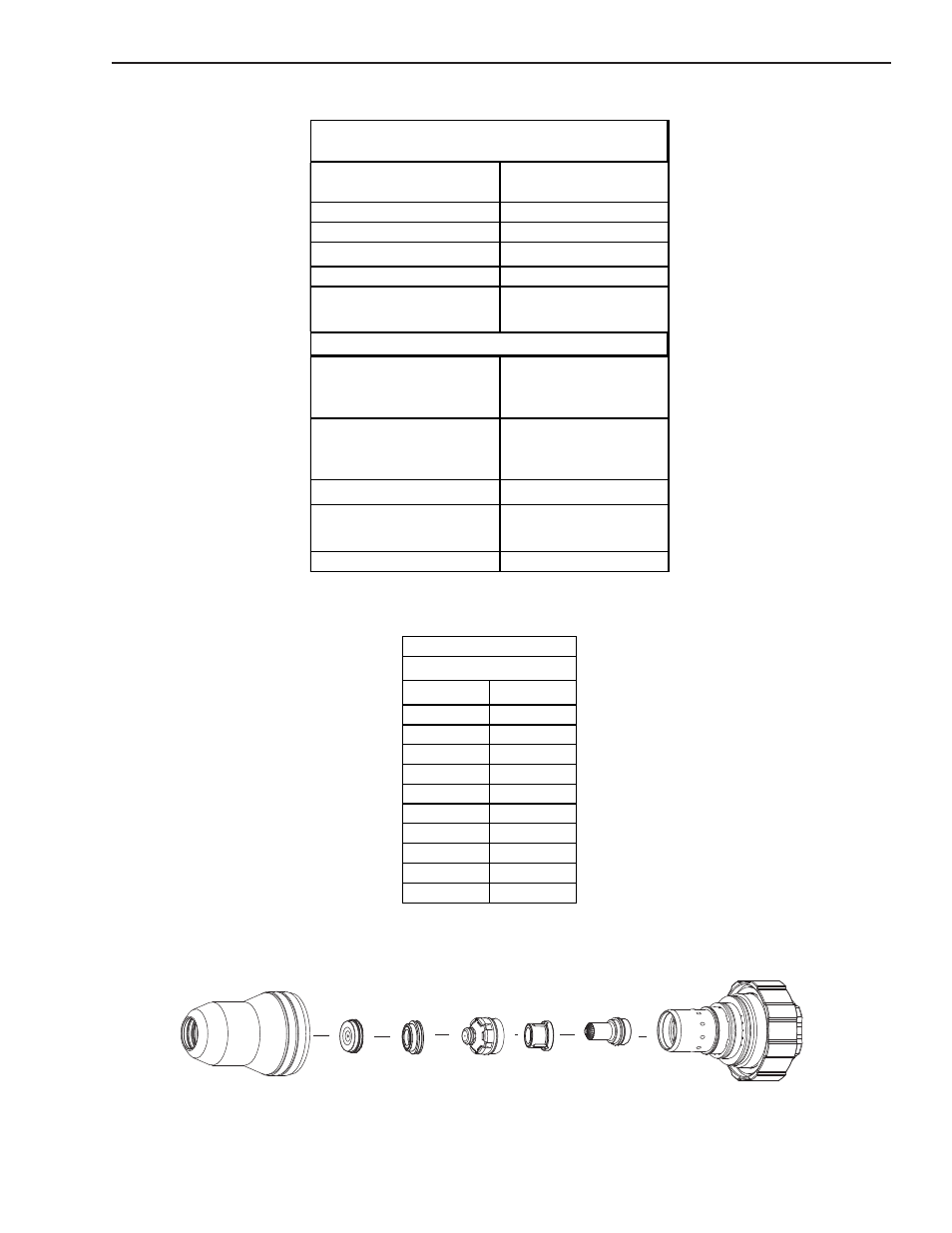

Manual No. 0-5132 2-7 SPECIFICATIONS
ULTRA-CUT 100
B. Torch Specifications
Ambient
Temperature 104° F
40° C
Duty Cycle 100% @ 100 Amps
Maximum Current 100 Amps
Voltage (V
peak
) 500V
Arc Striking Voltage 10kV
Current
Up to 100 Amps, DC,
Straight Polarity
Plasma Gases:
Compressed Air,
Oxygen,
Nitrogen, H35
Shield Gases:
Compressed Air,
Oxygen,
Nitrogen, Water
Marking Gas Argon
Operating Pressure
125 psi ± 10 psi
8.6 bar ± 0.7 bar
Maximum Input Pressure 135 psi / 9.3 bar
XT TM -300 Torch Ratings
for use with Ultra-Cut 100 Power Supply
XT TM -300 Torch Gas Specifications
C. Leads Lengths
Feet Meters
10 3.05
15 4.6
25 7.6
35 10.6
50 15.2
75 22.8
100 30.4
125 38.2
150 45.7
175 53.3
Length
Gas Lead Assemblies
D. Torch Parts (Generic Parts Shown)
Cartridge Shield Cup
Art # A-04741
Electrode Tip
Plasma Gas
Distributor
Shield Gas
Distributor
Shield Cap
