TORCH MAINTENANCE 7-2 Manual 0-5132
ULTRA-CUT 100
7.02 O-Ring Lubrication
Lubricate all three O-Rings on the Cartridge Assembly and all three O-Rings on the Torch Head periodically
with O-Ring Lubricant supplied. Remove the snap ring on the cartridge assembly and slide the locking ring
downward for access to the O-Ring under the locking ring.

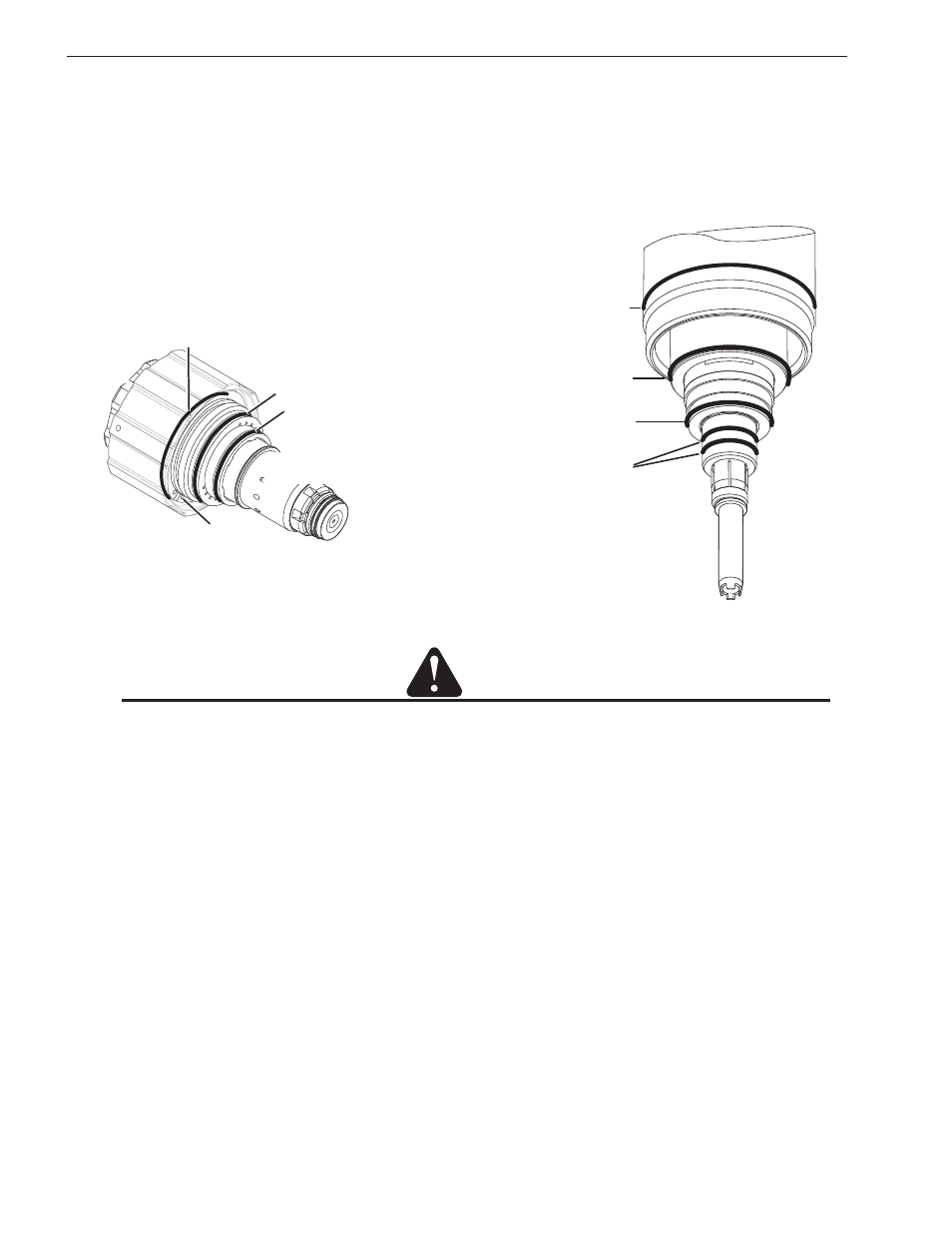

O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Locking Ring)
O-Ring, Cat. No. 9-3028
Art # A-04071_AC
Snap Ring
Cartridge Assembly
Art # A-04066_AC
O-Rings
Cat. No. 9-3027
Cat. No. 9-3026
Cat. No. 9-3025
Torch Head
Cat. No. 9-9041
CAUTION
Use only Thermal Dynamics No. 9-4893 O-Ring Lubricant (Christo Lube MCG-129) with this torch part. Use of
other lubricants may cause irreparable damage to the torch.
