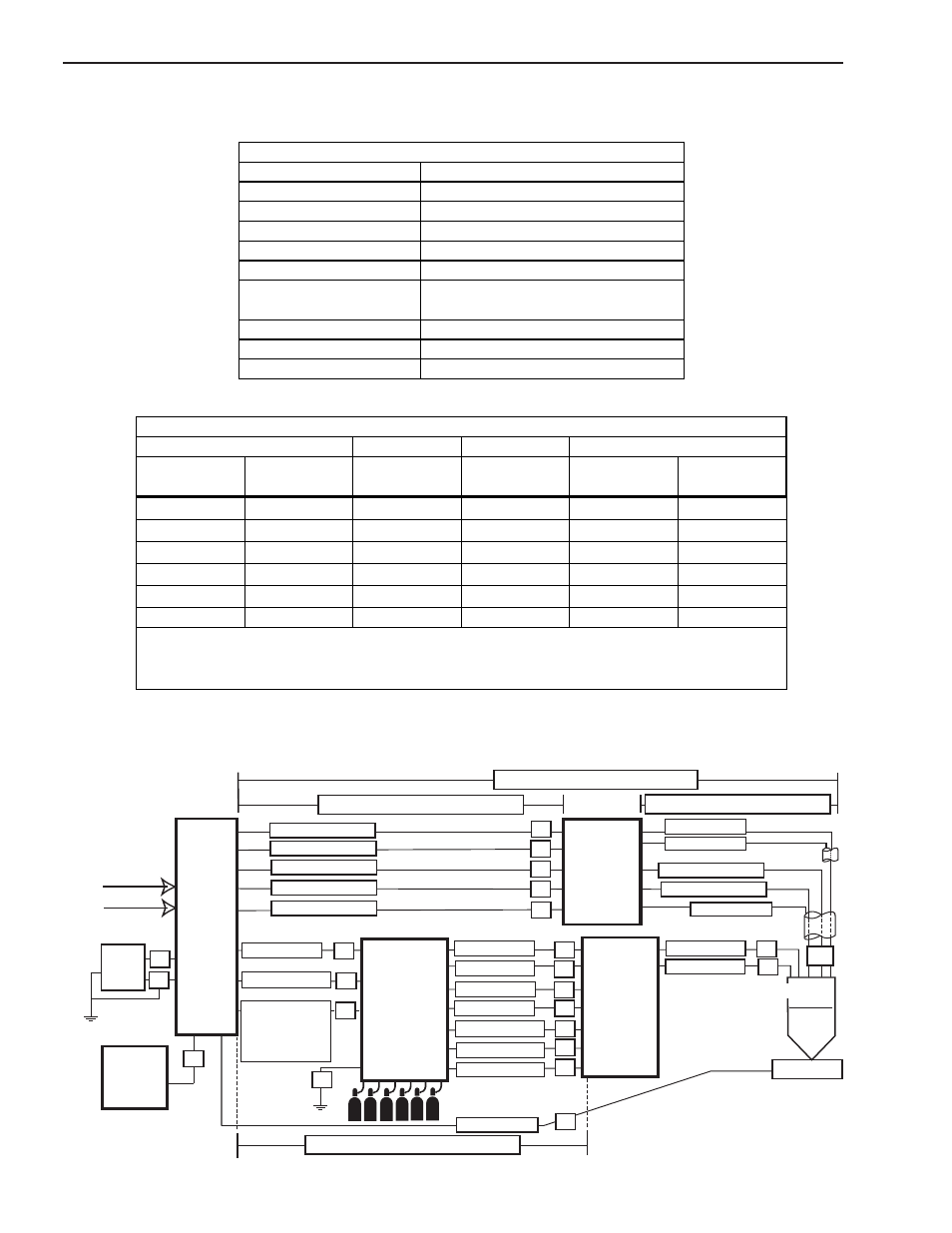

SPECIFICATIONS 2-2 Manual No. 0-5132
ULTRA-CUT 100
2.06 Specifications & Electrical Requirements
Input Power & Current 208/230V - 460V, 1/3 ph, 50 / 60 Hz
Max OCV (U
0
) 380 vdc
Minimum Output Current 10 Amps
Max Output Current 100 Amps
Output Voltage 60 - 230 vdc
Duty Cycle Rating 100% @ 100A, 180V
Ambient Temperature
for Duty Cycle Rating
104F° (40°C)
Operating range 14°F to 122°F (-10°C to + 50°C)
Power Factor 0.70 @ 100 A DC Output
Cooling Forced Air (Class F)
Ultra-Cut 100 Specifications & Design Features
Input Power Input Current Suggested Sizes (See Note)
Voltage Freq. 3-Ph 3-Ph Fuse (Amps) Wire (AWG)
(Volts) (Hz) (kVA) (Amps) 3-Ph 3-Ph
208 50/60 23 64 80 #4 1
230 50/60 24 60 75 #4 1
400 50 28 40 50 #6 1
400 (CE) 50 28 40 50 #6 1
460 50/60 26 33 40 #8 1
600 50/60 25 24 30 #8
Ultra-Cut 100 Power Supply
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electrical Code
1 Extra Hard Usage Type SO, SOW, SOO, SOOW, ST, STW, STO, STOW, STOO, STOOW
2.07 System Component Layout
Primary power
Work
CNC
Remote
Arc
Starter
Art # A-09124
Torch
Coolant Supply
Coolant Return
Control Cable
Pilot Return
Coolant Supply
Coolant Return
Plasma Gas
Secondary
Work Cable
DMC-3000
Gas
Console
Ultra-Cut
Power
Supply
DPC-3000
Gas
Control
Positioning Tube
Plasma Gas
Marking
Shield
Shield Gas
Negative
Pilot Return
Control Cable
100’ / 30.5 m Maximum Length
Shield
H
Q
R
U
S
A
B
C
D
E
P K
L
O
I
J
G
175’ / 53.3 m Maximum Length
Preflow
Fiber Optic L
Water Shield T
F
125’ / 38.1 m Maximum Length
175’ / 53.3 m Maximum Length
Fiber Optic
Control Cable
F Ground Cable
Only When
DMC Mounted
On Top Of PS
Touch
Screen
Controller
V
W
