Manual No. 0-5132

3-29

INSTALLATION

ULTRA-CUT 100

4. Secure each of the thin nuts on the through hole protectors so both nut faces are tight against the sheet metal

inside and out.

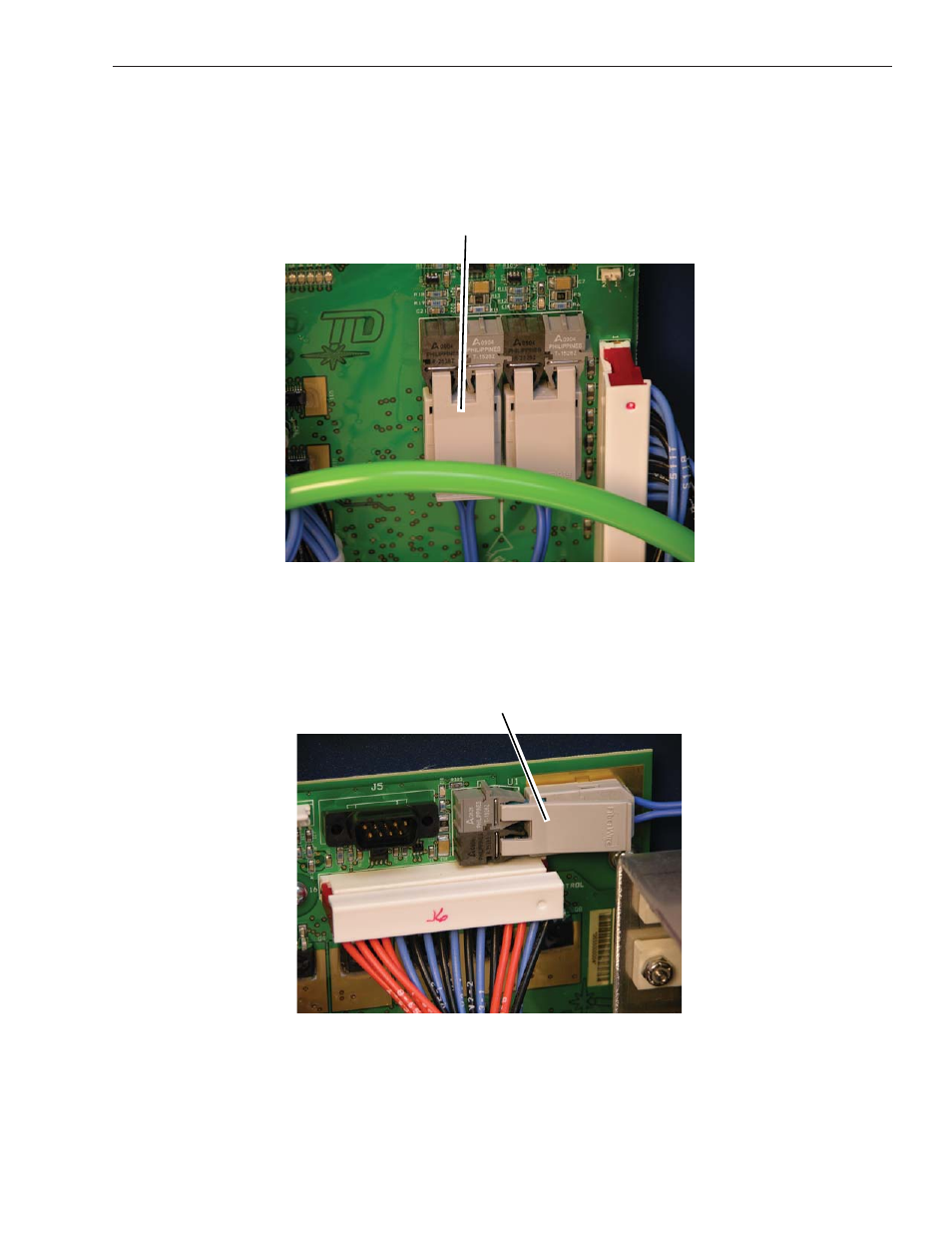

5. Plug the Fiber Optic Cable into the PCB as shown below for the DMC-3000. Make sure the locking tabs are

engaged.

Plug Fiber Optic cable to/from DPC-3000 here

Art # A-09154

6.

Plug the Fiber Optic Cable into the PCB as shown below for the DPC-3000. Make sure the locking tabs are
engaged.

Fiber Optic to/from DMC-3000 plugs in here

Art # A-09155

7. Reinstall the Cover Panels making sure the wireharnesses are attached. Reverse steps 1 and 2 in sub

section 3.13 and 3.14
