CUTMASTER 102
Manual 0-4997 INSTALLATION 3T-1
SECTION 3 TORCH:
INSTALLATION
3T.01 Torch Connections
If necessary, connect the torch to the Power Supply. Connect
only the Thermal Dynamics model SL100 / Manual or SL100
/ Mechanical Torch to this power supply. Maximum torch
leads length is 100 feet / 30.5 m, including extensions.
WARNING
Disconnect primary power at the source before
connecting the torch.

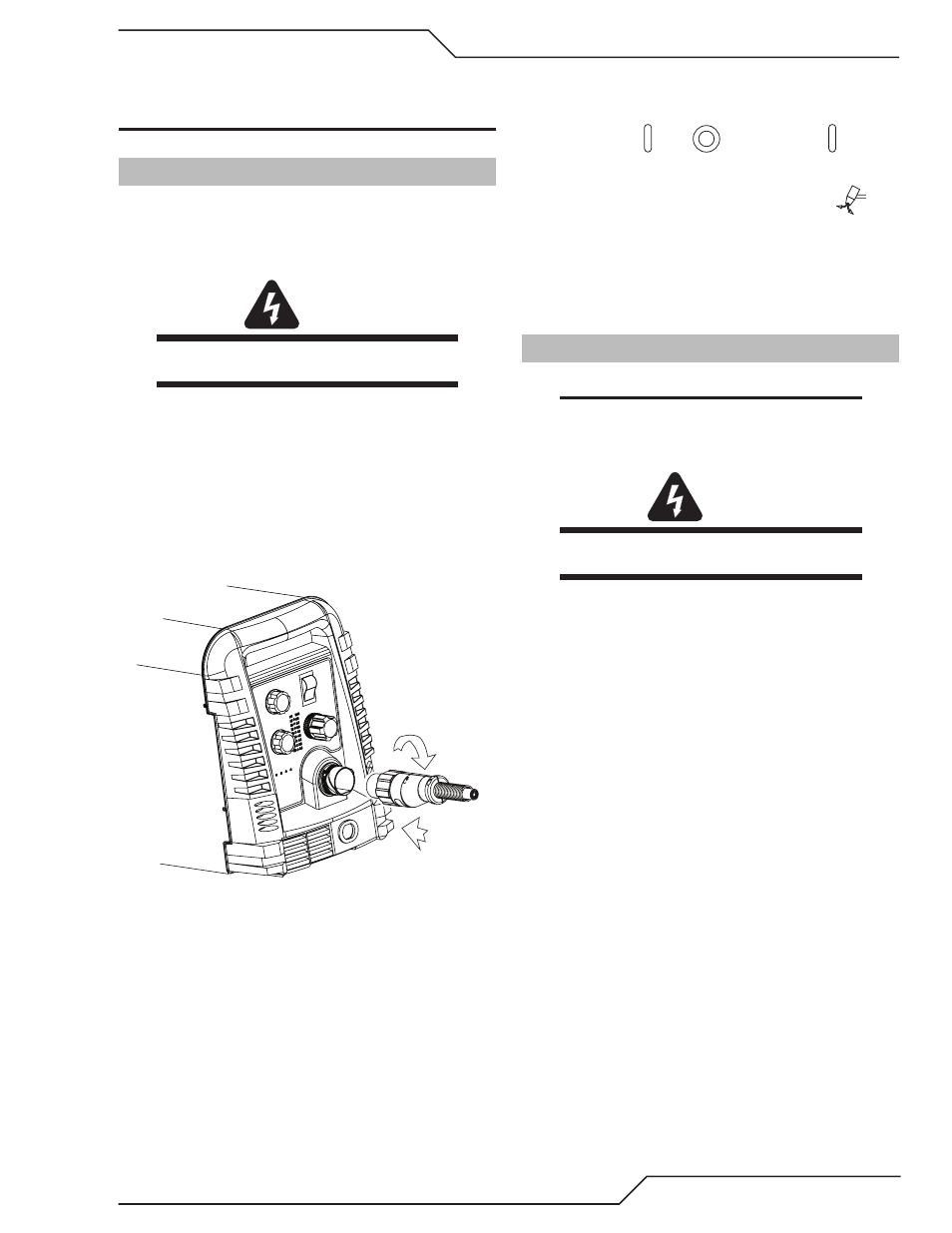

1. Align the ATC male connector (on the torch lead)
with the female receptacle. Push the male connector
into the female receptacle. The connectors should
push together with a small amount of pressure.
2. Secure the connection by turning the locking nut
clockwise until it clicks. DO NOT use the locking nut
to pull the connection together. Do not use tools to
secure the connection.
1
2
Art # A-07885
Connecting the Torch to the Power Supply
3. The system is ready for operation.
Check Air Quality
To test the quality of air:
1. Put the ON / OFF switch in the ON (up)
position.
2. Put the Function Control switch in the SET
position.
3. Place a welding filter lens in front of the torch and
turn ON the air. Do not start an arc!
Any oil or moisture in the air will be visible on the lens.
3T.02 Setting Up Mechanical Torch
NOTE
An adapter is required to be installed in the power
supply if converting a hand torch system to operate
a machine torch.
WARNING
Disconnect primary power at the source before
disassembling the torch or torch leads.
The mechanical torch includes a positioning tube with rack
and pinch block assembly.
1. Mount the torch assembly on the cutting table.
2. To obtain a clean vertical cut, use a square to align
the torch perpendicular to the surface of the work-
piece.
