APPENDIX 3: POWER SUPPLY
Features
• Stabilised power supply 24 VDC / 6.5 A;Suitable for operating a LINEAR DRIVE
• Operates with supply voltage 110/230 VAC / 50-60 Hz, selectable
Technical specifications
Dimensions 7.8"x4.3"x1.9" (199x110x50 mm) Length x Width x Height
Input AC Voltage 88-132VAC / 3.2A or 176-264VAC / 1.6A selectable
Frequency 50-60 Hz
Output DC Voltage 24VDC / 6,5A max.
Protection class IP 20 acc. EN60529/IEC529
Environment conditions 32°-104°F (0-40°C) / 20-90% relative humidity
Weight 1.76lbs. (0.8kg)
TDC part no. 9-0420
NOTE
Input voltage switch 230 VAC / 115 VAC. Factory default is 230 VAC

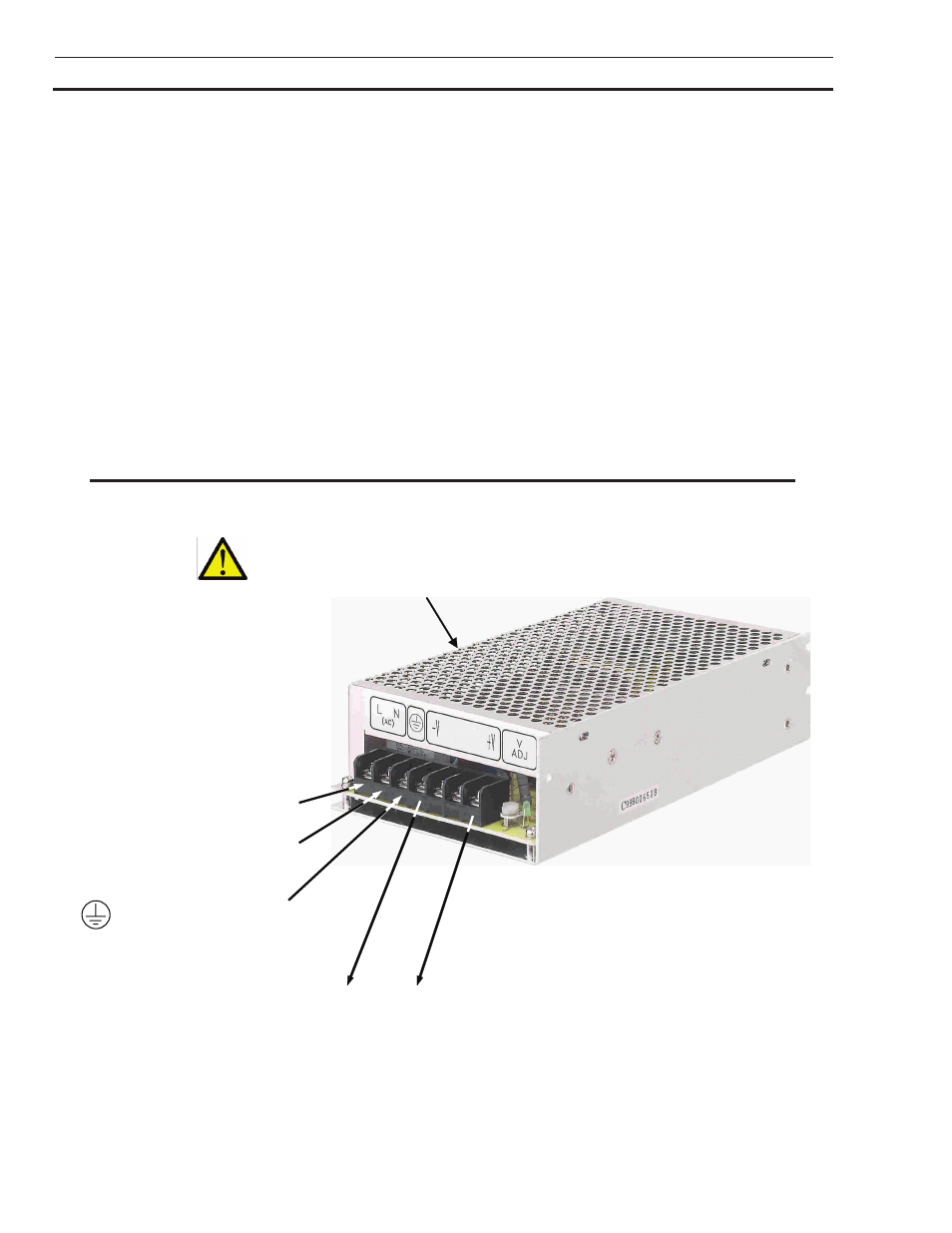

Input Voltage switch 230 VAC /115VAC
Supply Voltage Phase L
115VAC
protect externally with 3.2/1.6 AM
medium slow
Supply Voltage Phase N
115/230VAC
PE -Protective Earth Connector
+V
Output +24VDC / 6.5A
Protect externally with 10AT - slow
-V
Output 0V
Ground GND
Art # A-08944_AB
SC 3000 Interface Enclosure is preset to 115 VAC but replacement
power supplies will arrive set to 230 VAC.
