SC-3000
INTRODUCTION 2-4 Manual 0-5100

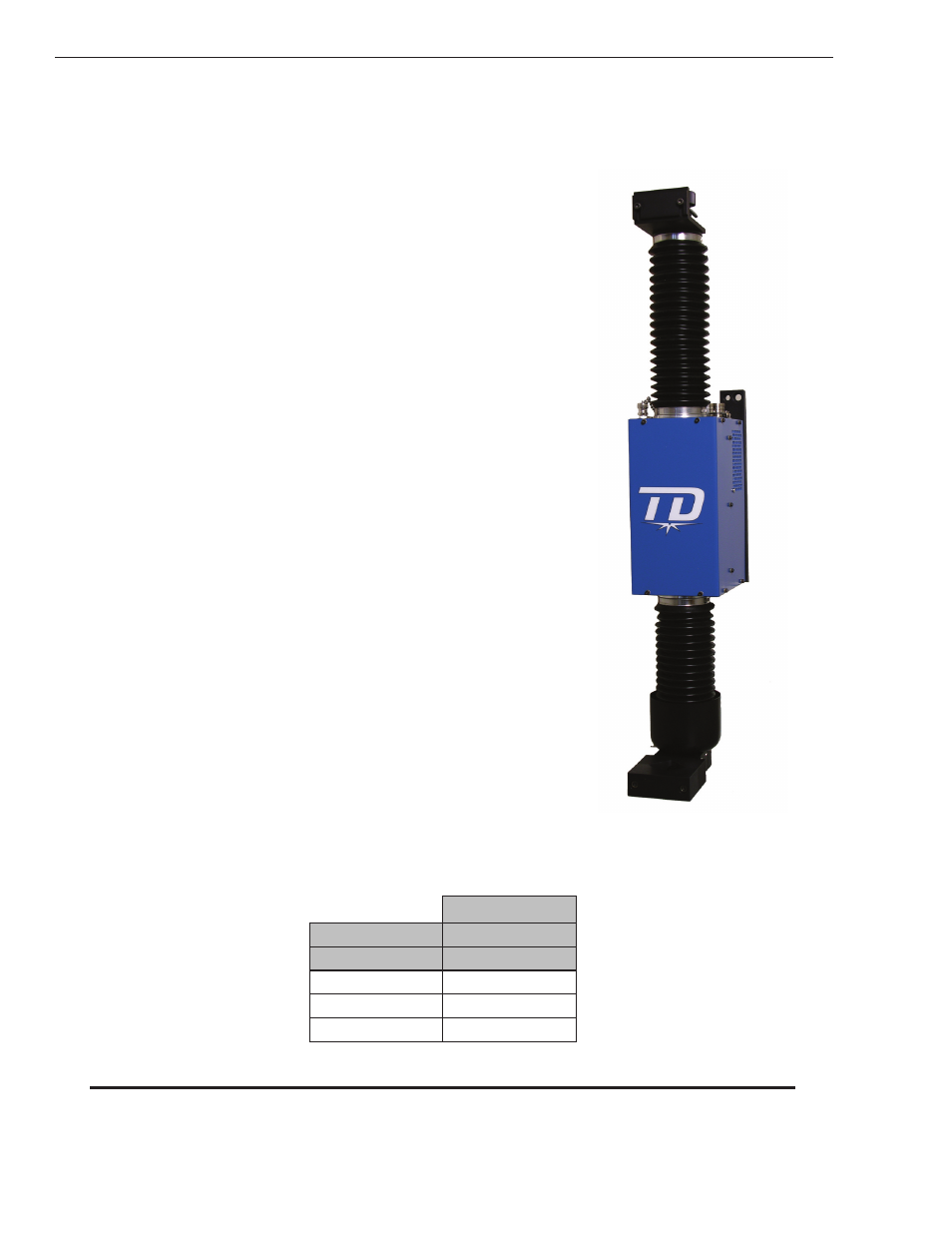

LINEAR DRIVE
Features
• Fast vertical drive for precise clearance control of plasma torches to metal sheets
• Integrated control
• Dust proof chamber protects rail and gear
• Built-in vertical collision protection
• 3-dimensional collision protection at the torch clamp
• Clamp for torch and leads
• High temperature proof bellows made of silicone rubber
• US Patent No. US 6,239,573 B1 / Euro Patent No. 0997801
General technical data
Motor 24 VDC / max. 6.5A
Power 100 W
Stroke 8.3" (210 mm)
Torch Clamp
for Torch Diameter 1.4"-2.1" (35-53 mm ) standard or
1.2"-1.4" (30-35 mm ) optional
Protective Earth Connector Screw M4
Weight 26.45 lbs. (12 kg )
Dimension of Housing approx. 4.5"x8.9"x6.3" (WxHxD)
(115x226x160 mm)
Dimensions overall 4.7"x2.8"x9.8" (WxHxD)
(approx.120x730x250 mm)
Features of versions
LINEAR DRIVE
Model SC-3000
TDC part no. 9-0404
Stroke 8.3" (210 mm)
Speed 3.1"/s (80 mm/s)
Load 26.45 lbs (12 kg)
Note:
The LINEAR DRIVE can only be used for vertical operation!
Art # A-08800
