SC-3000
Manual 0-5100
2-5
INTRODUCTION

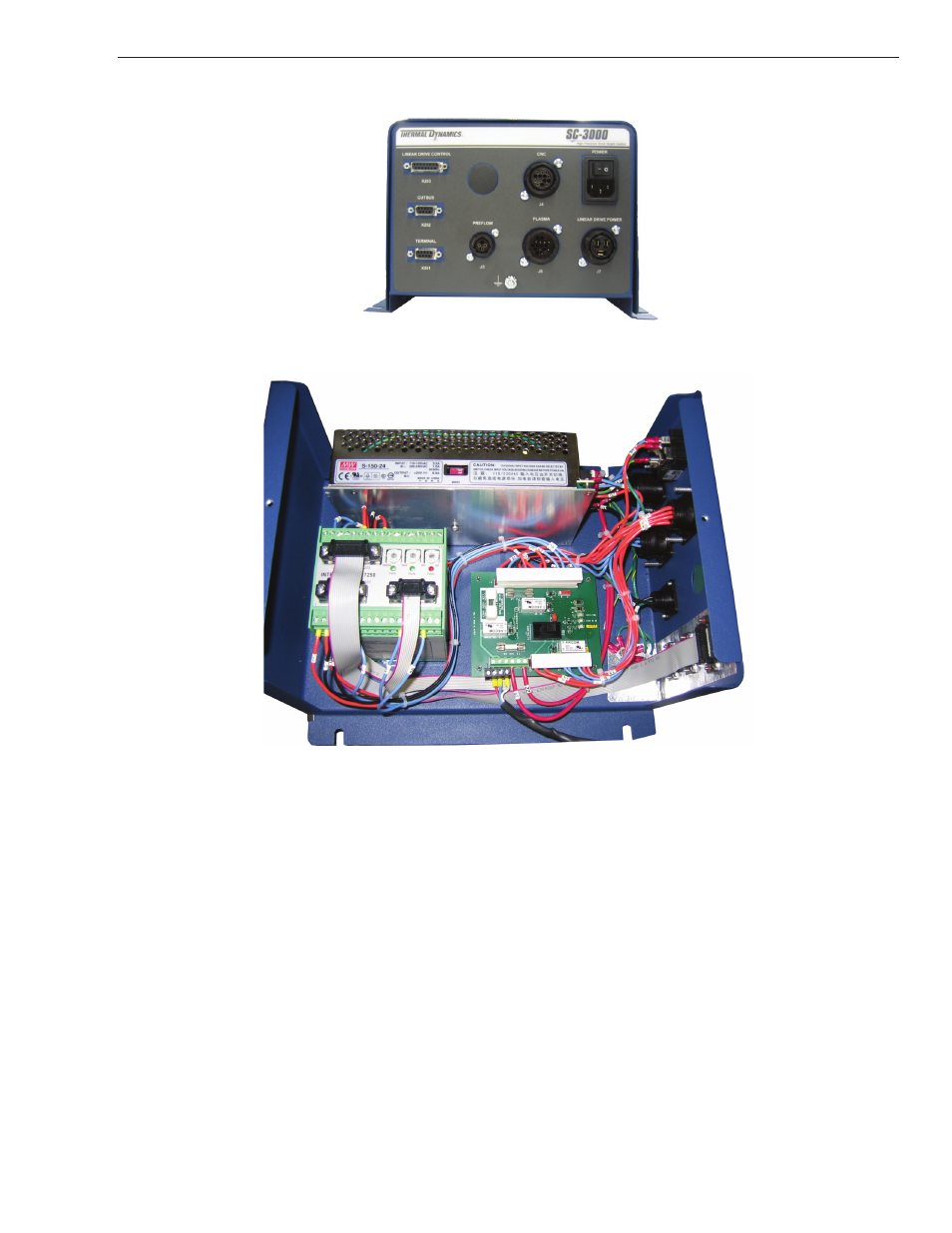

SC 3000 Interface Enclosure
Art # A-09098
Art # A-8938_AB
The Interface Enclosure is the central connection point for all the cables of the SC 3000 system. It con-
tains:
• System power supply, 120 / 240 VAC to 24 VDC @ 6.5A (Appendix 4).
• Interface IHT 7250 Module providing communication between the Operator Terminal, the Plasma
Supply and the Linear Drive (Appendix 5).
• 9-0433 Control PCB providing system fuses, relays, selection switches for OK to Move and some
LEDs to assist troubleshooting.
