Tweco SC-3000 - Manual (Page 20)

SC-3000
INTRODUCTION 2-6 Manual 0-5100

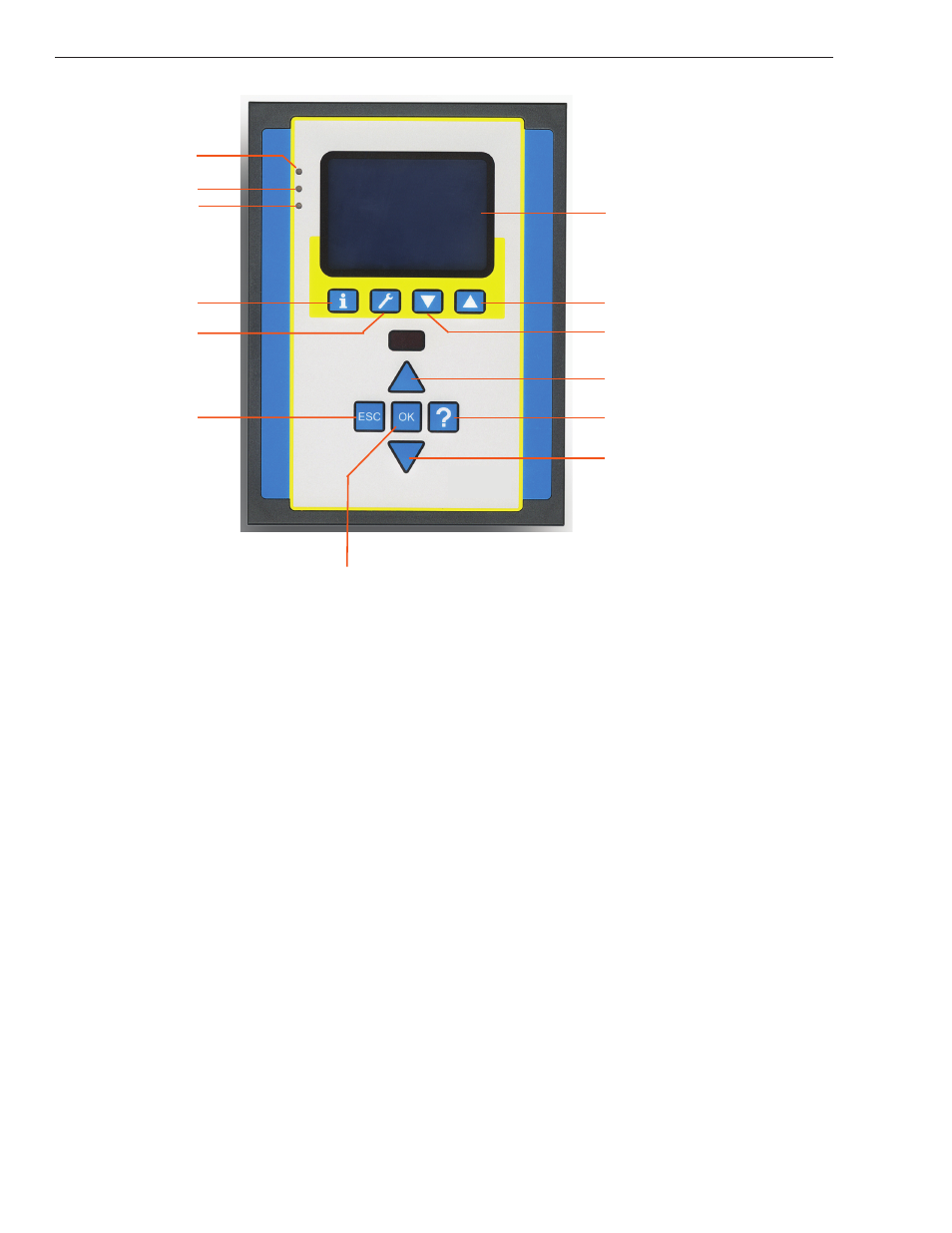

Control Panel
Art # A-08948_AB
Information menu
Fast settings
ESCAPE
Back to menu
Manual UP/Clear Error
Manual DOWN
Menu upwards
Help Menu
Me nu downwards
Ready
Communication
Error
Display
OK
ENTER
Technical Information
Power 24 VDC ±10%, with integrated reverse voltage protection
Consumption 60 mA
Over Voltage protection 30 V
Graphic Display 128x64 pixel blue/white with LED backlight
Serial Interface RS485
Environment temperature 32°-122°F (0 to +50°C)
Relative Humidity 98% (non condensing)
Protection class IP10 EN60529/IEC529 for assembly into operator console
Dimensions 6.3"x4.8"x1.4" (160x120x35 mm)
Weight approx. 0.4 kg
SC-3000 part no. 9-0427
Connecting cables can be found in table / chapter Devices and spare parts.
