Manual 0-5100 3-11 INSTALLATION

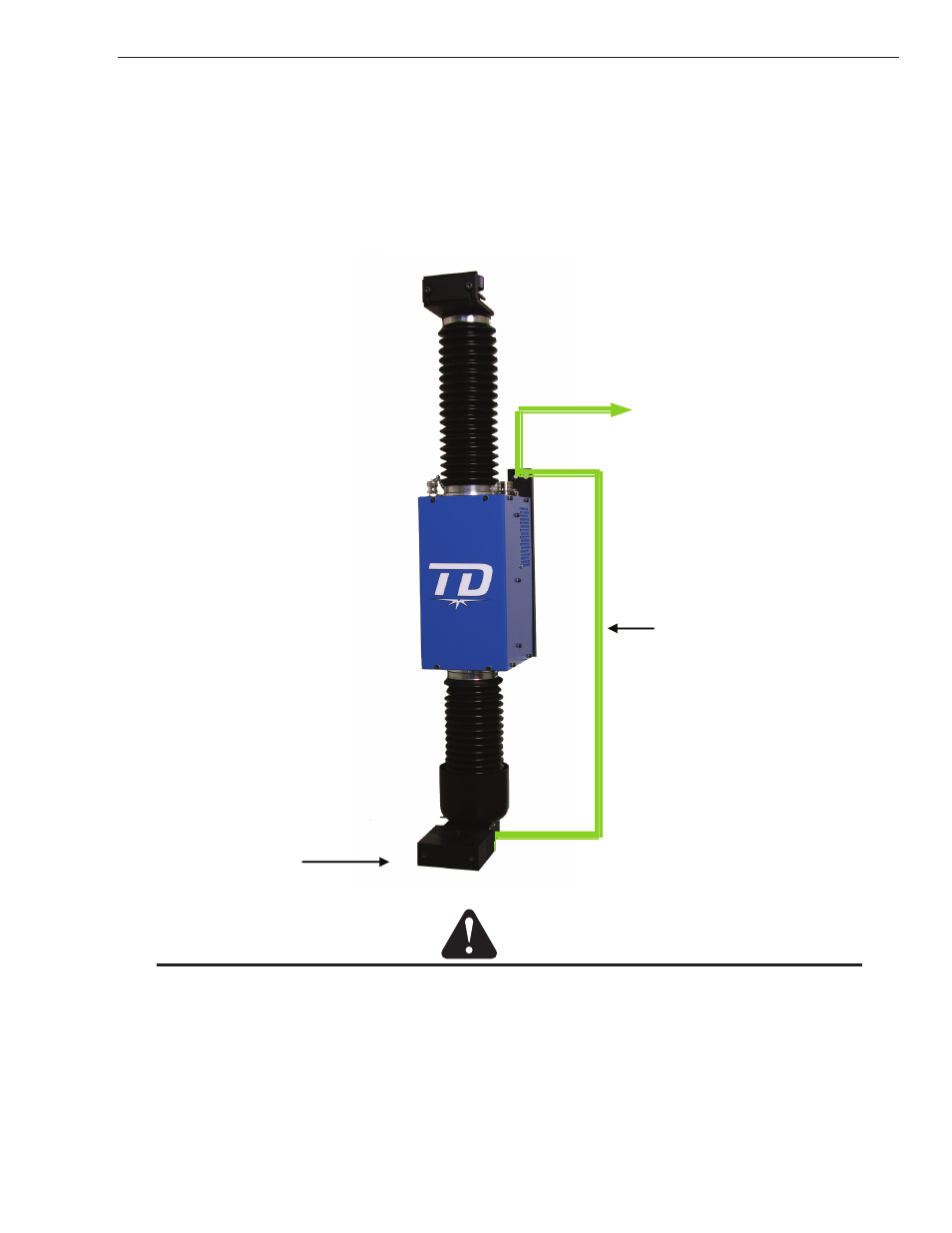

LINEAR DRIVE – GROUNDING OF TORCH CLAMP
This cable is required for safe operation !
The notes of grounding described in the Appendix must be observed for
proper usage.
Cable length: 0.6 m
Cable: 6 qmm/AWG 8, yellow/green lengthwise striped
2 connectors: Faston 6.3mm / 0.25 in.
Torch Clamp
Torch Clamp Grounding
Cable (Provided)
Grounding Cable
connect as short as possible
to machine ground
wire gauge min. 6 qmm/AWG8
(Customer Provided)
Art # A-08802_AB
CAUTION!
The length of the grounding cable up to the lower limit switch must not be so short as to hinder the movement of
the lifter.
