OPERATION 4-14 Manual 0-5100
4.09 SCRAP CUTTING
The automatic finding of initial position is disabled when scrap cutting is activated.
The SC- 3000 system sets the following parameter automatically
• Pierce Height 0 mm
• Retract Position 0 mm
• Pierce Elevation 0 mm
• Cutting Height 0 mm
Procedure
• Select SCRAP CUTTING at Operator Terminal in the command menu.
• Move the torch to the start position manually.
• Move the torch to suitable cutting height manually.
• activate Initial Position Start.

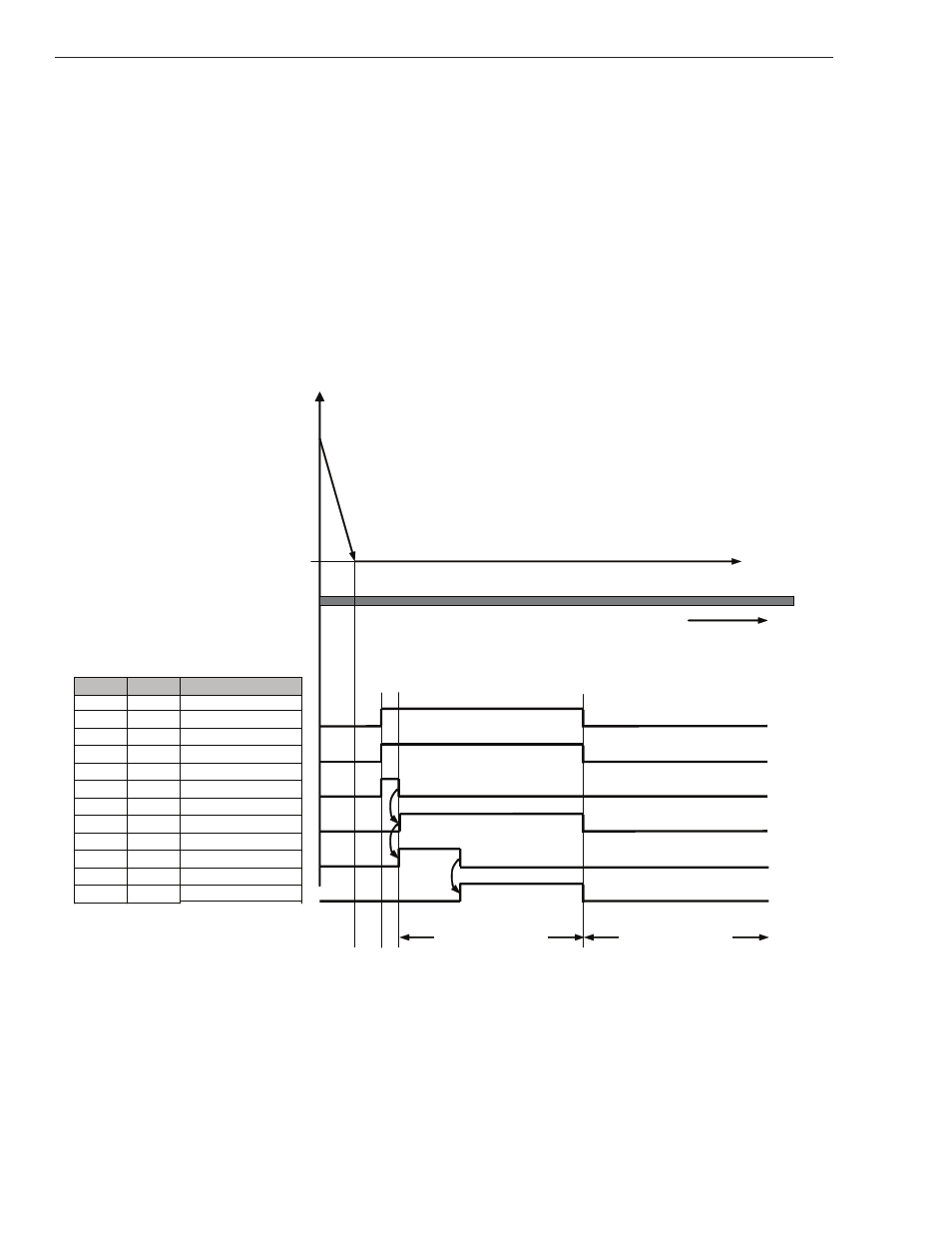

From To Signal
CNC Initial Pos. Start
Plasma Plasma Start
Start XY
Control Delay
Clearance Con.
Work piece
Reference Position
Cutting Height
Manual Down
Ignition
Time / Track
Cutting ON Cutting OFF
Art # A-08936_AB
SC-3000
SC-3000
SC-3000
SC-3000
SC-3000
SC-3000
CNC
